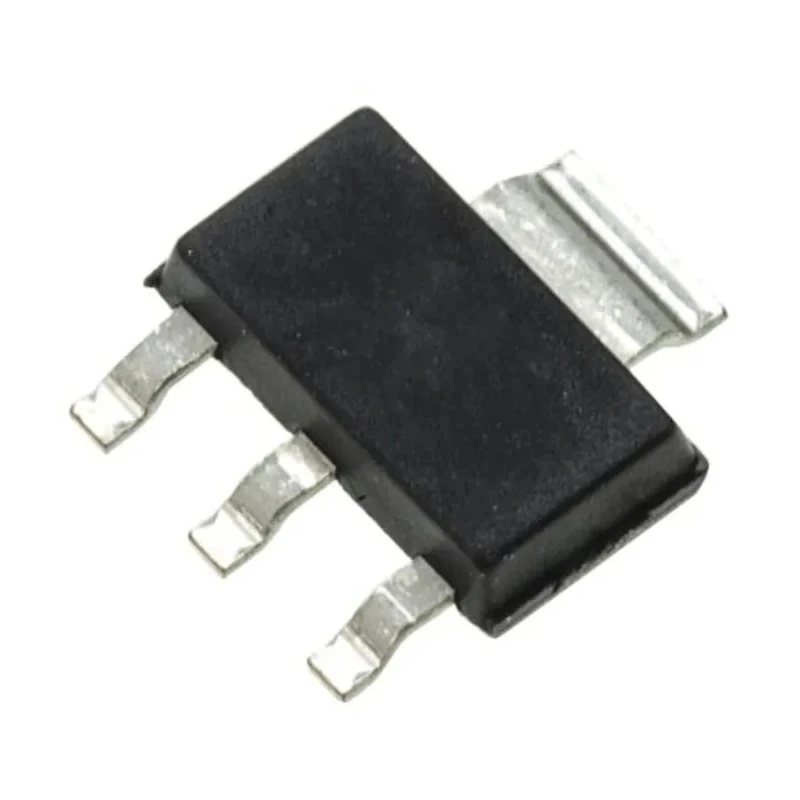

onsemi Digital Transistor, -40 V PNP Surface Mount SOT-223 3-Pin, Maximum Power Dissipation 2W NSS40300MZ4T1G

onsemi NSS40300MZ4T1G is a digitally designed PNP bipolar power transistor featuring a surface mount SOT-223 (SC-73) package with 3 pins, engineered for applications requiring power saving and high-speed switching.

This transistor supports a maximum collector-emitter voltage (Vceo) of -40 V and a maximum power dissipation of 2 W, providing efficient performance with minimized power loss.

Its low collector-emitter saturation voltage and high DC current gain (hFE) of 175 enable it to deliver excellent switching and amplification capabilities in industrial and electronic circuits.

The compact form factor with dimensions 6.5 mm length, 3.5 mm width, and 1.75 mm height makes it suitable for dense PCB layouts in electronics manufacturing.

Qualifying under the automotive standard AEC-Q101, this transistor is reliable for automotive industry usage as well as in portable device power management, switching regulators, voltage regulation circuits, and inductive load drivers.

Maximum collector-emitter voltage of -40 V ensures robust switching performance. Low saturation voltage minimizes power loss during operation. High DC current gain of 175 suitable for amplification. Maximum power dissipation rating of 2 W for durable thermal handling.

Compact dimensions measuring 6.5 mm length, 3.5 mm width, and 1.75 mm height. Compliant with automotive standard AEC-Q101 for reliability in automotive applications. Features 3 pin count and single transistor configuration for straightforward circuit integration.

Operates reliably up to 150°C maximum temperature rating. Low current requirements ideal for power-sensitive designs and portable devices.

This digital PNP transistor from onsemi is engineered to meet the needs of power-sensitive electronic equipment and automotive control applications, providing a reliable and efficient solution for switching and amplification challenges.
