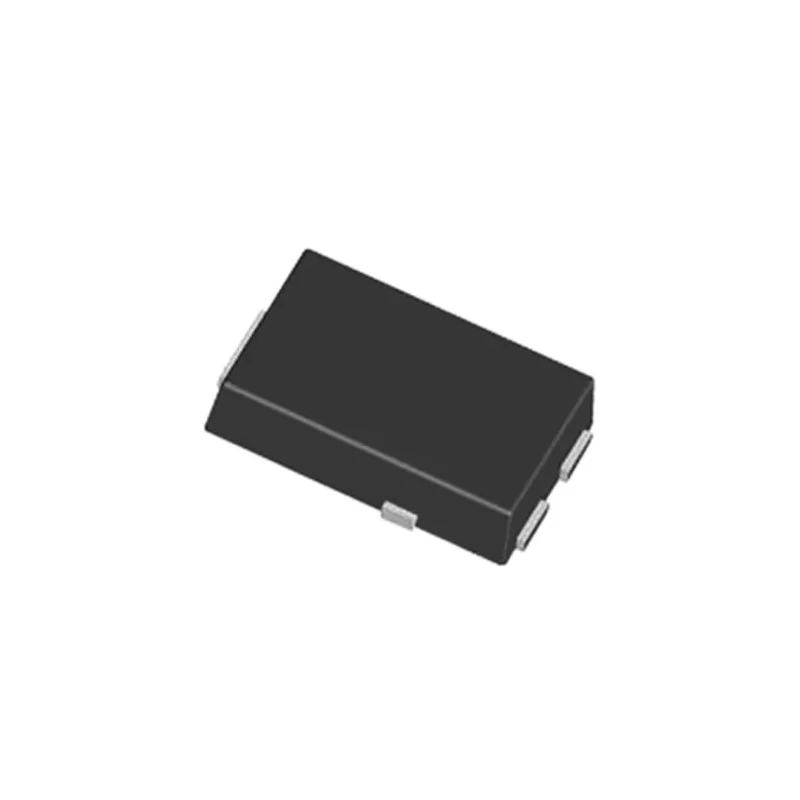

Vishay 1-Element Uni-Directional TVS Diode Surface Mount TO-277 Package 1.5 kW Peak Pulse Power SMPC58ANHM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 6.15mm |
| Model | SMPC58ANHM3/H |
| Width | 4.75mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 93.6V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 64.4V |
| Maximum Reverse Stand-off Voltage Vwm | 58V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 16A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Surface mount 3-pin TO-277 package ensures compact assembly.
- Uni-directional diode configuration protects circuits from transient voltage spikes.
- Minimum breakdown voltage of 64.4 V with a maximum reverse stand-off voltage of 58 V.
- Clamping voltage of 93.6 V provides effective surge voltage limitation.
- Automotive standard qualified to AEC-Q101 for reliability in harsh environments.
- Operates within temperature range from -55°C to 150°C ensuring wide operating conditions.
- Peak pulse current rating of 16 A supports high surge protection.
- Extremely low profile height of 1.2 mm for space-saving designs.
Product Description
Vishay SMPC58ANHM3/H is a high-performance 1-element uni-directional transient voltage suppressor (TVS) diode designed to protect sensitive electronic circuits from voltage spikes and electrostatic discharge. Packaged in a compact surface mount TO-277 case with a height of only 1.2 mm, it enables automated PCB assembly and low-profile designs.
This TVS diode features a minimum breakdown voltage of 64.4 V and a maximum reverse standoff voltage of 58 V, making it suitable for applications requiring robust surge protection. Its peak pulse power dissipation capability of 1.5 kW with a waveform of 10/1000 μs ensures reliable clamping during high energy transient events. The measured clamping voltage of 93.6 V quickly limits voltage surges to safe levels, safeguarding downstream circuitry.
Engineered to meet automotive grade standards AEC-Q101, this diode ensures reliable operation under harsh environmental conditions and temperature extremes from -55°C to +150°C. The device offers low maximum reverse leakage current of 1 μA and a peak pulse current rating of 16 A, resulting in energy-efficient protection with minimal leakage losses.
Its uni-directional configuration provides dependable protection against transient overvoltages in DC and pulsed systems. The low incremental surge resistance and fast response time enhance its effectiveness in sensitive electronic, industrial, automotive, and power electronics applications.
The SMPC58ANHM3/H diode is ideal for transient voltage suppression in power supplies, automotive electronics, industrial machinery, and communication equipment. Its surface mount package allows easy integration into automated assembly lines, facilitating high-volume manufacturing.
Surface mount 3-pin TO-277 package ensures compact assembly. Uni-directional diode configuration protects circuits from transient voltage spikes. Minimum breakdown voltage of 64.4 V with a maximum reverse stand-off voltage of 58 V.
Clamping voltage of 93.6 V provides effective surge voltage limitation. Automotive standard qualified to AEC-Q101 for reliability in harsh environments. Operates within temperature range from -55°C to 150°C ensuring wide operating conditions.
Peak pulse current rating of 16 A supports high surge protection. Extremely low profile height of 1.2 mm for space-saving designs. Low maximum reverse leakage current of 1 μA minimizes standby power loss. Suitable for electronic, industrial, automotive, and power electronics transient voltage protection applications.
Discover more TVS Diodes and semiconductor components in the Electronics & Electricals category at EnvMart to support your circuit protection needs.
