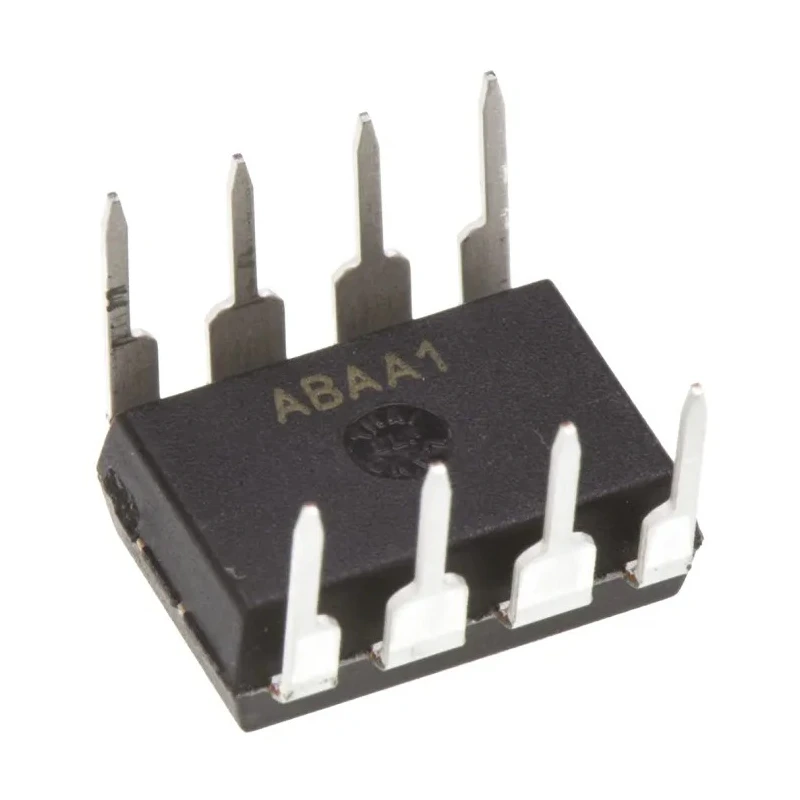

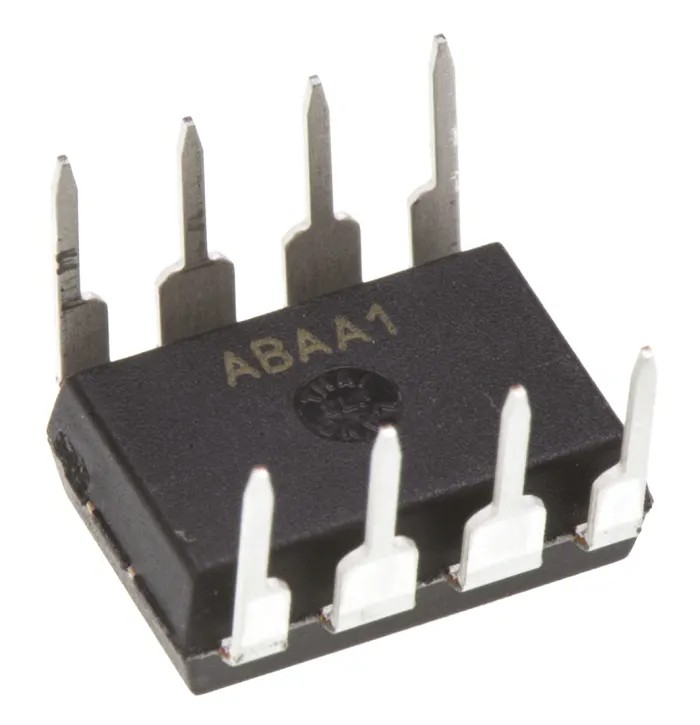

Microchip 12-Bit SAR Analogue to Digital Converter 100 ksps 8-Pin PDIP MCP3201-CI/P
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 9.14mm |
| Length | 10.16mm |
| Model | MCP3201-CI/P |
| Mount Type | Through Hole |
| Sampling rate | 100ksps |
| Series | MCP3201 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 1 |
Key Features
- Successive Approximation Register (SAR) architecture ensures precise conversion.
- Single ADC channel with voltage input type.
- Through hole mount for easy PCB integration.
- Operates with supply voltage from 5V to 5.5V.
- Wide operating temperature range of -40°C to 85°C.
- Utilizes SPI interface for communication.
- Compact PDIP package with 8 pins measuring 10.16 mm length and 9.14 mm height.
- Certified to automotive standard AEC-Q100 for reliability.
Product Description
Microchip MCP3201-CI/P is a high-precision 12-bit successive approximation register (SAR) Analogue to Digital Converter (ADC) designed to deliver accurate and reliable digital output from analog inputs at a sampling rate of 100 ksps. Housed in a through hole 8-Pin PDIP package, it offers compact dimensions measuring 10.16 mm in length and 9.14 mm in height, facilitating easy PCB mounting and integration.
Operating over a wide temperature range from -40°C to 85°C and supplied via a voltage between 5V and 5.5V, this ADC is engineered for demanding industrial, automotive, and embedded system environments. The device communicates via the SPI interface, making it compatible with a broad range of digital controllers and microprocessors.
The MCP3201-CI/P is part of Microchip's MCP3201 series of ADCs, known for their robust SAR architecture which guarantees rapid and efficient conversion. Its single ADC channel and voltage input type make it suitable for diverse electronic measuring and control applications, including instrumentation, data acquisition, and signal processing.
Successive Approximation Register (SAR) architecture for precise digital conversion. Single voltage input ADC channel optimized for accurate measurements. Through hole PDIP package with 8 pins, ideal for prototyping and production.
Wide operating temperature ensures performance in harsh environments. Compatible with SPI interface for versatile digital communication. Compliant with automotive standard AEC-Q100, suitable for automotive electronics. Compact dimensions fit in space-constrained electronic assemblies.
Operating voltage range supports stable and efficient operation. Reliable and consistent performance for industrial and embedded systems.
This ADC module is tailored for professionals in electronic design, industrial instrumentation, automotive, and embedded system development, enabling precise analog signal conversion essential for high-quality digital processing tasks. Explore Microchip products for dependable and innovative semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP3201-CI/P has a resolution of 12 bits, allowing for precise digital output from analog inputs.
This model supports a maximum sampling rate of 100 ksps, making it suitable for fast data acquisition applications.
It operates with a supply voltage ranging from 5V to 5.5V, ensuring stable performance within this range.
The MCP3201-CI/P functions effectively within a wide temperature range of -40°C to 85°C, suitable for harsh environments.
This model features a single ADC channel, optimized for accurate voltage input measurements.
It is housed in a compact 8-pin PDIP package, which is ideal for through-hole mounting on PCBs.
The MCP3201-CI/P utilizes the SPI interface, allowing compatibility with various digital controllers and microprocessors.
Yes, it is certified to the automotive standard AEC-Q100, making it suitable for automotive electronics applications.
This ADC employs a Successive Approximation Register (SAR) architecture, which ensures efficient and precise conversion.
The dimensions of this model are 9.14 mm in height and 10.16 mm in length, making it compact for integration.
It supports a voltage input type, which is suitable for various electronic measuring and control applications.
This ADC is suitable for applications in instrumentation, data acquisition, and signal processing, particularly in industrial and embedded systems.
