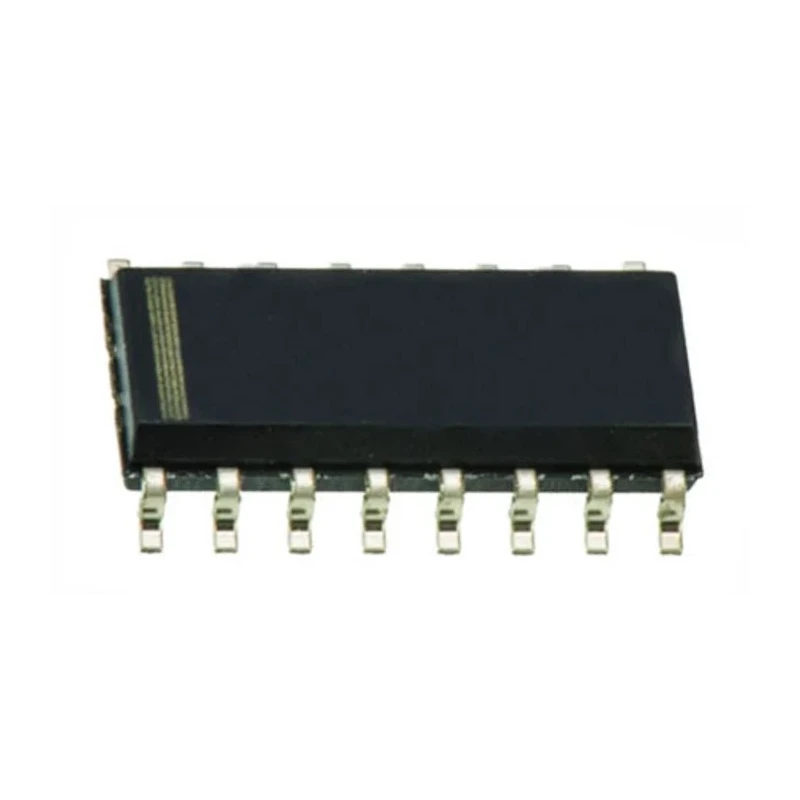

Texas Instruments Voltage Level Shifter 4 TTL to CMOS, CMOS Logic Family 4000, Uni-Directional, Surface Mount CD4504BM96

Texas Instruments CD4504BM96 Voltage Level Shifter is a uni-directional IC part of the 4000 series CMOS logic family. It enables voltage translation from TTL (Transistor-Transistor Logic) levels to CMOS (Complementary Metal-Oxide Semiconductor) logic, supporting a wide power supply range of 3 to 18 volts which makes it suitable for a variety of electronic designs.

This device features four translator elements incorporated in a single 16-pin SOIC (Small Outline Integrated Circuit) package, making it ideal for surface mounting in compact systems. The maximum propagation delay time is 280ns at a capacitive load, ensuring fast and reliable signal translation.

Its operating temperature range from -55°C to +125°C allows it to be used in demanding industrial and electronic applications. The device supports output currents up to 4.2mA at low output level and -4.2mA at high output level, compatible with TTL and CMOS standards.

Typically used in digital systems requiring signal level translation between incompatible logic families, the CD4504BM96 supports diverse uses in industrial automation, telecommunications, instrumentation, and embedded computing systems.

Operates from 3 to 18V supply voltage for flexible integration. Fast propagation delay time suitable for timing-critical applications. Compact 16-pin SOIC surface mount package for space-saving designs. Wide operating temperature and industrial-grade reliability.

Supports 4 TTL to CMOS translating elements per IC. Robust output current handling ensuring signal integrity.
