Vishay DG411DY-T1-E3 Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC 5V-44V Surface Mount DG411DY-T1-E3

Vishay DG411DY-T1-E3 analogue switch is a quad single-pole single-throw (SPST) device designed for signal routing in mixed-signal systems, operating with CMOS-compatible logic. It features four independent channels for flexible signal switching with a maximum on-state resistance of 100 ohms, enabling low-voltage-drop switching performance. This device supports a wide supply voltage range from 5V to 44V, making it compatible with various power rails commonly found in electronic applications.

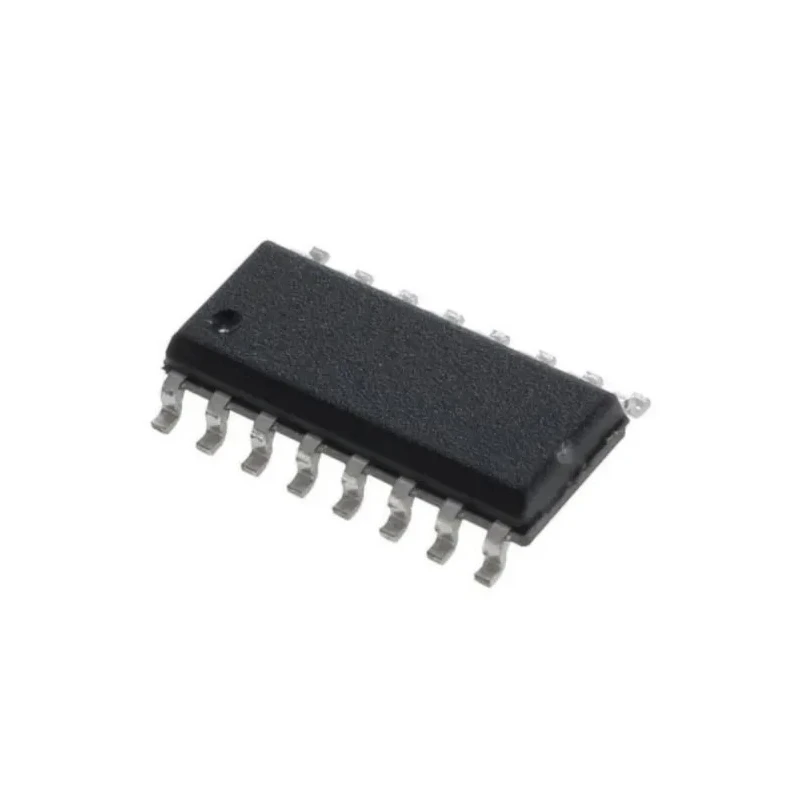

Encased in a compact 16-pin SOIC surface-mount package measuring 10mm in length, 4mm in width, and 1.55mm in height, it is suited for dense PCB layouts and reflow soldering processes. The operating temperature range from -40°C to +85°C ensures durability in extended environmental conditions and industrial usage.

The DG411DY-T1-E3 is ideal for multiplexing analogue sensor signals in instrumentation, providing efficient audio-path selection in consumer electronics, as well as enhancing channel isolation and routing in test equipment. Additionally, it performs well in industrial controls requiring power-rail-tolerant signal switching. The device's control inputs accept both CMOS and TTL-compatible logic levels, facilitating easy integration with standard logic families without additional level translation.

This component is RoHS-compliant, ensuring it meets environmental standards for restricted substances applicable to soldered assemblies. The DG411 series analogue switch delivers reliable switching performance for electronic designers seeking high-quality mixed-signal switching solutions.

Four independent single-pole single-throw analogue switch channels. CMOS logic-compatible control inputs with TTL compatibility. Operating supply voltage from 5V minimum to 44V maximum. Maximum on-state resistance of 100 ohms for low voltage drop.

Compact 16-pin SOIC surface-mount package for PCB space efficiency. Wide operating temperature range from -40°C to 85°C. Suitable for multiplexing, audio-path selection, and industrial signal switching. RoHS-compliant meeting environmental safety standards.
