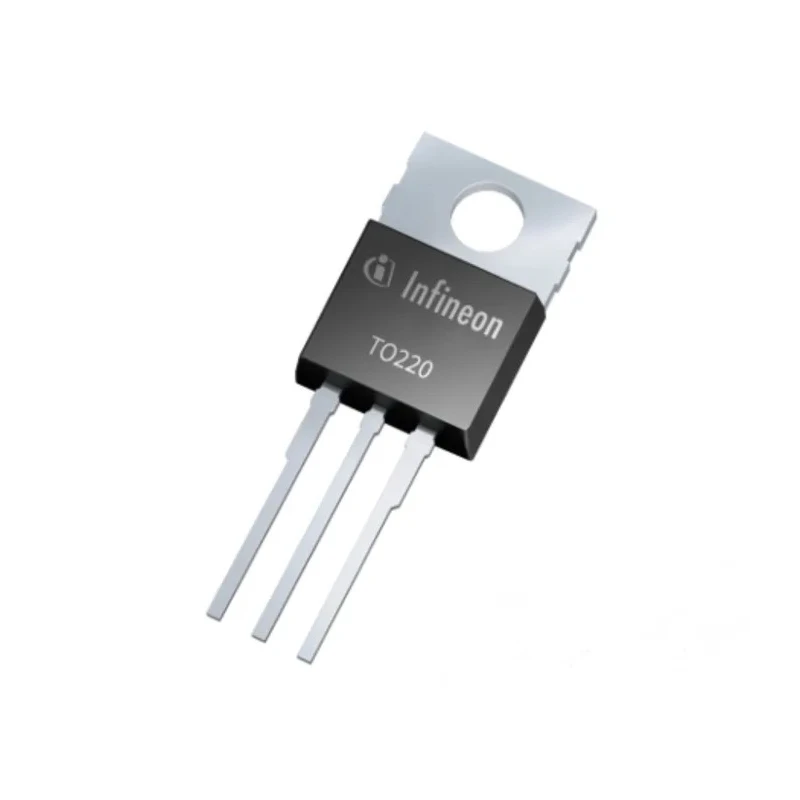

Infineon Low Loss IGBT Transistor 15 A 600 V TO-220 Package IGP15N60TXKSA1

Infineon IGP15N60TXKSA1 low loss IGBT transistor offers a maximum continuous collector current of 15 A and maximum collector-emitter voltage rating of 600 V in a TO-220 package. This transistor delivers high efficiency, low conduction losses, and switching losses, making it suitable for various power electronic applications.

The transistor supports an operating temperature range from -40°C to 175°C, ensuring reliable performance in industrial, automotive, and commercial power devices. As part of the TrenchSTOPTM series, it incorporates advanced trench technology for superior performance and efficiency.

This device features a very soft, fast recovery anti-parallel emitter controlled diode that minimizes switching losses and reduces electromagnetic interference (EMI). Its low gate charge and tight parameter distribution allow optimized and consistent performance in demanding environments.

The robust construction ensures high ruggedness and temperature stability, supporting reliability in harsh and variable operating conditions. Infineon's device meets JEDEC1 standards, reflecting industry-recognized quality and safety compliance.

Common use cases for the IGP15N60TXKSA1 include industrial motor drives, power inverters, HVAC control systems, renewable energy systems, and automotive electronics where efficient switching and power management are critical.

Maximum continuous collector current of 15 A for robust power handling. Collector-emitter voltage capability up to 600 V ensuring high voltage operation. Maximum power dissipation rating of 130 W for reliable thermal management.

TO-220 package providing easy mounting and heat dissipation. Maximum gate-emitter voltage of ±20 V to support voltage control. Low saturation voltage of 1.5 V for energy efficient conduction. Operating temperature range from -40°C to 175°C suited for harsh environments.

Compliant with JEDEC1 standards for quality assurance. TrenchSTOPTM series technology offers high efficiency and low losses. Features a very soft, fast recovery anti-parallel emitter controlled diode to minimize switching losses.

High ruggedness and temperature stable behavior enhance device reliability. Low EMI emissions and low gate charge improve overall device performance. Explore the range of Infineon semiconductor devices on EnvMart for your industrial and electronic design needs.
