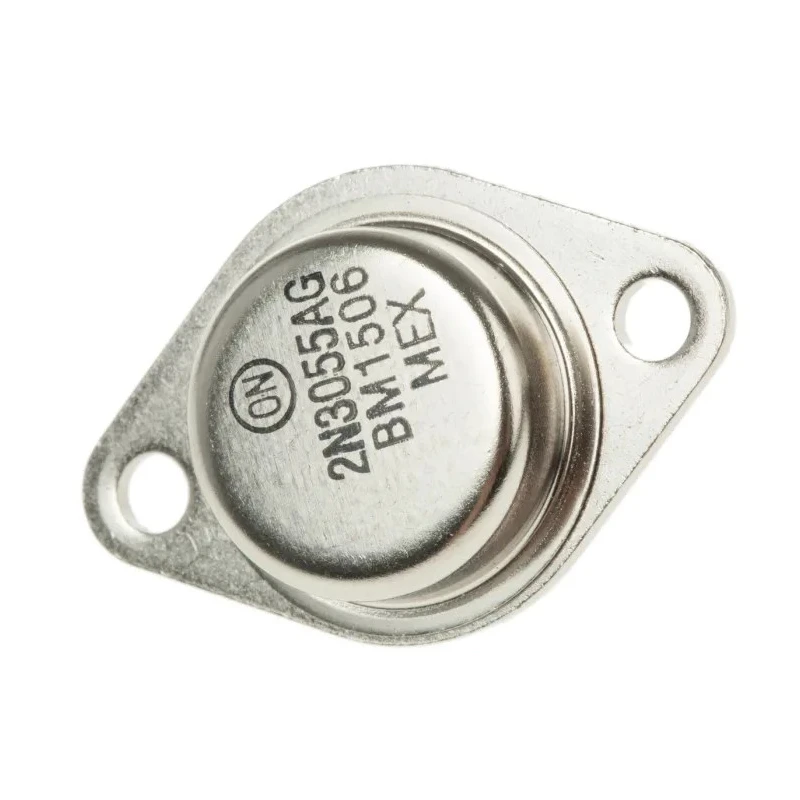

onsemi High Power NPN Bipolar Transistor 15 A 60 V 115 W TO-204 Through Hole 2N3055AG

onsemi 2N3055AG is a high power NPN bipolar transistor engineered for demanding electronic and industrial applications. This transistor is designed to handle a maximum DC collector current of 15 A and withstand collector-emitter voltages up to 60 V, making it suitable for high power audio amplifiers, stepping motors, and various linear and switching circuits including relay and solenoid drivers.

Housed in a 2-pin TO-204 package for through-hole mounting, the 2N3055AG offers a high power dissipation capacity of 115 W, guaranteeing efficient thermal management in power-intensive scenarios. It features a high safe operating area, low saturation voltage, and a minimum DC current gain of 10, ensuring reliable performance.

This transistor operates effectively within a broad temperature range from -65°C to 200°C, enabling its use in challenging environments. Its maximum collector base voltage is rated at 100 V, and it has a maximum transition frequency of 1 MHz, suitable for many industrial and commercial applications.

Key applications include use in audio amplifiers, power switching circuits like DC-DC converters, inverters, relay drivers, and solenoid drivers. The transistor’s single NPN configuration and compact physical dimensions (39.37 mm length, 26.67 mm width, 20.7 mm height) support easy mounting and integration in electronic devices.

Manufactured in Mexico, the onsemi 2N3055AG ensures quality standards for semiconductor components. It does not carry specific automotive standards but remains widely trusted for industrial use.

Maximum power dissipation 115 W supports high-power applications. High current gain and low saturation voltage for efficient switching. Robust thermal and voltage ratings for industrial environments. TO-204 package provides secure through-hole mounting.

Wide temperature operating range ensures versatility.

This product is categorized under Power Transistors suitable for electronic and electrical engineering projects, industrial controls, and power management solutions. Explore more products in the Power Transistor category at EnvMart for comprehensive solutions tailored to your technical requirements.
