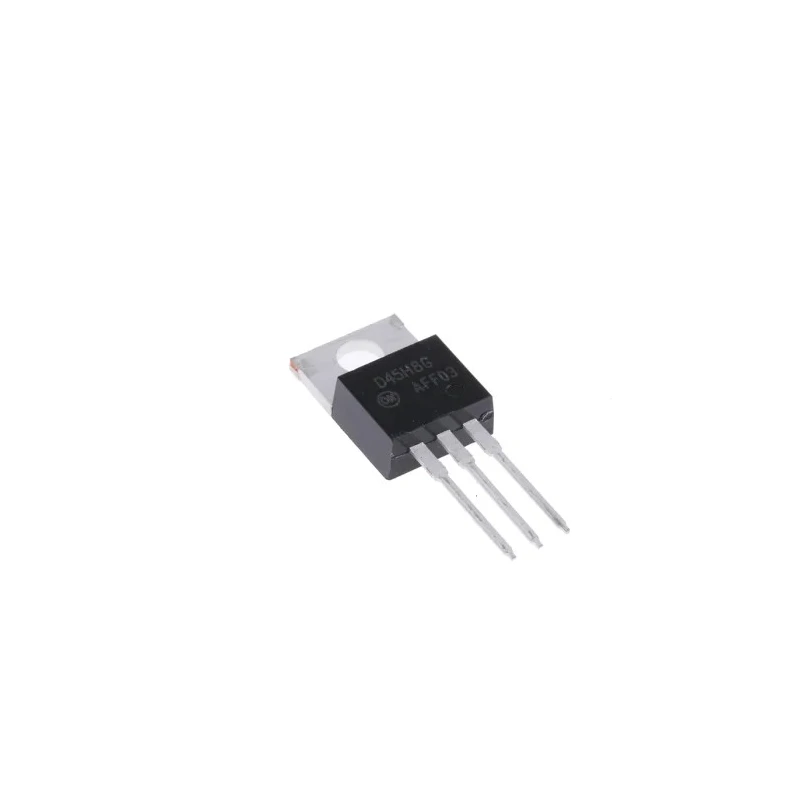

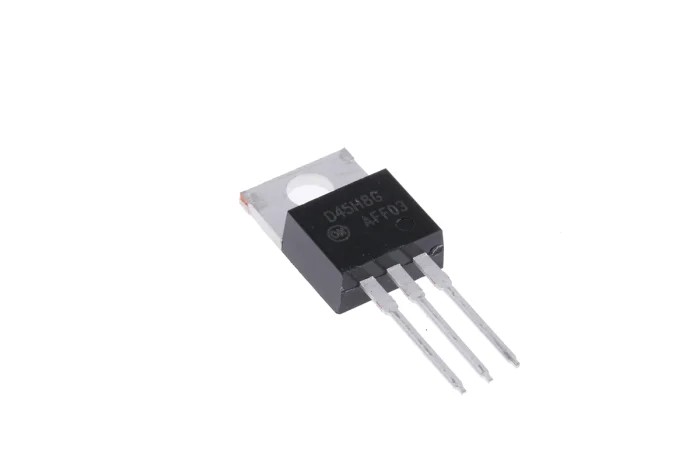

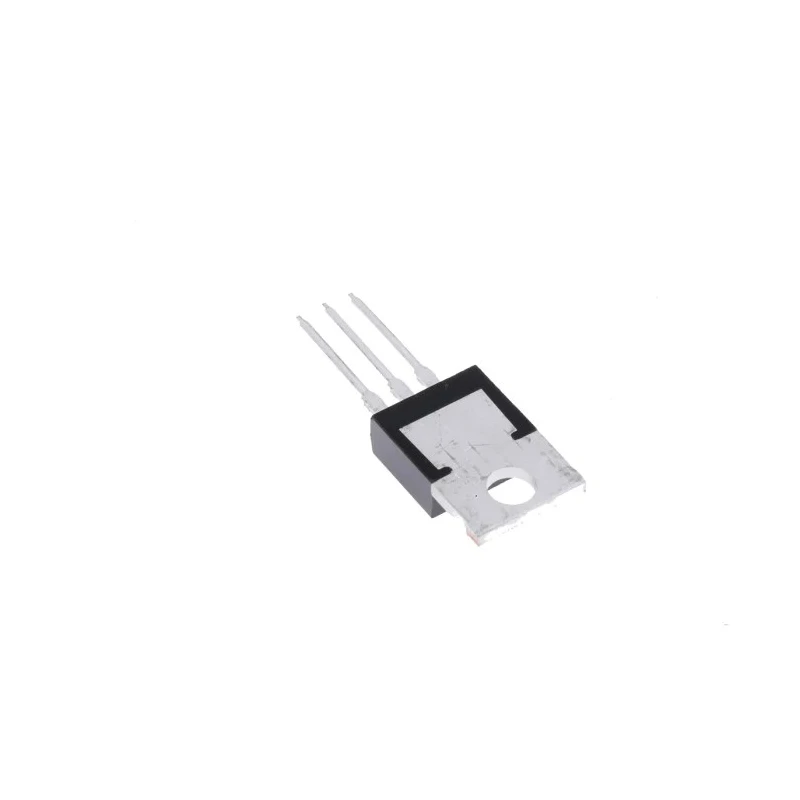

onsemi PNP Power Transistor 10 A, 60 V, 3-Pin TO-220 Package D45H8G

onsemi D45H8G is a PNP power transistor housed in a 3-pin TO-220 package designed for through-hole mounting. It features a robust maximum DC collector current of 10 amps and withstands collector emitter voltages up to 60 volts, making it suitable for power amplification and switching applications in various industrial and electronic circuits.

The transistor delivers reliable performance with a minimum DC current gain (hFE) of 40 and operates efficiently with a maximum power dissipation of 2 watts. It supports operating temperatures ranging from -55°C to 150°C, accommodating harsh environments commonly encountered in industrial electronics.

The component's maximum transition frequency of 40 MHz enables high-frequency switching, ideal for applications requiring rapid response times. The emitter base voltage rating of 5 volts ensures stable transistor function within electrical design limits.

Dimensionally, this transistor measures 30.02 mm in height, 4.83 mm in width, and 10.53 mm in length, offering a compact form factor for circuit board integration. Typical applications include industrial power control, amplification stages, and electronic switching where efficiency and robustness are essential.

The transistor supports a maximum collector current of 10 A. Collector emitter voltage tolerance is up to 60 V. Power dissipation of 2 watts allows moderate power handling. Thermal operating range from -55°C to 150°C for versatile environment use.

Minimum current gain (hFE) of 40 ensures amplification quality. 3-pin TO-220 through-hole mounting package enables easy physical assembly. Compact physical dimensions aid in space-constrained applications. Explore the comprehensive range of semiconductor components and Power Transistors at EnvMart, designed to meet demanding industrial and electronic design requirements.
