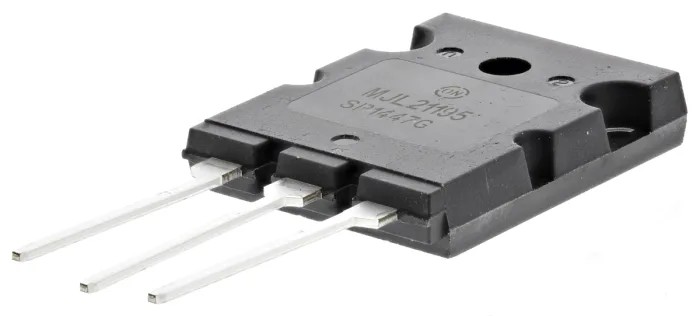

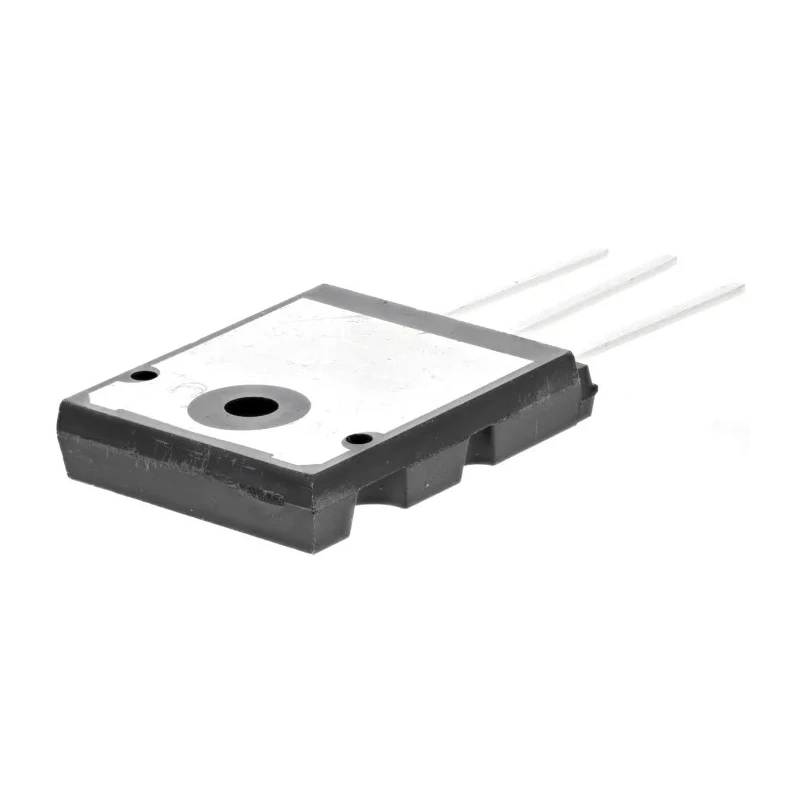

onsemi PNP Power Transistor 16 A 250 V 200 W 3-Pin TO-264 MJL21195G

onsemi MJL21195G PNP Power Transistor is a high-power discrete semiconductor device designed for industrial and electronic applications requiring robust performance. It integrates a PNP transistor configuration capable of handling a continuous collector current of up to 16 A and collector-emitter voltage rating of 250 V, making it suitable for power amplification and switching in various circuits.

Featuring a TO-264 package with through hole mounting, this transistor facilitates easy assembly in power electronics setups and provides efficient thermal dissipation. It operates reliably within a wide temperature range from -65°C to 150°C, ensuring stability under extreme conditions.

The transistor supports a maximum power dissipation of 200 W, enabling it to handle demanding loads without degradation. Its 3-pin design and single transistor configuration provide straightforward integration into power management and control systems.

Technical parameters include a maximum collector base voltage of 400 V dc, and a maximum emitter base voltage of 5 V, offering robust protection and operational margin. The device's transition frequency is rated at 1 MHz, suitable for switching applications at moderate frequencies.

Compact physical dimensions (26.4mm height, 20.3mm length, and 5.3mm width) and a minimum DC current gain of 25 contribute to its efficient amplification and integration in industrial, manufacturing, and electronic instrumentation applications.

This MJL21195 series transistor is not automotive standard compliant but is optimized for reliable power control and management in commercial and industrial systems. Supports a maximum DC collector current of 16 amperes.

Maximum collector emitter voltage rating of 250 volts. Power dissipation capacity up to 200 watts enabling reliable operation under heavy loads. Single transistor configuration with transistor polarity PNP. Operating temperature range from -65°C to 150°C suitable for demanding environments.

Compact dimensions with 26.4mm height, 20.3mm length, and 5.3mm width. Maximum transition frequency of 1 MHz for efficient switching performance. Minimum DC current gain of 25 ensuring adequate amplification. Package type TO-264 with 3 pins and through hole mount compatibility.

Maximum collector base voltage rated at 400 V dc and maximum emitter base voltage of 5 volts.
