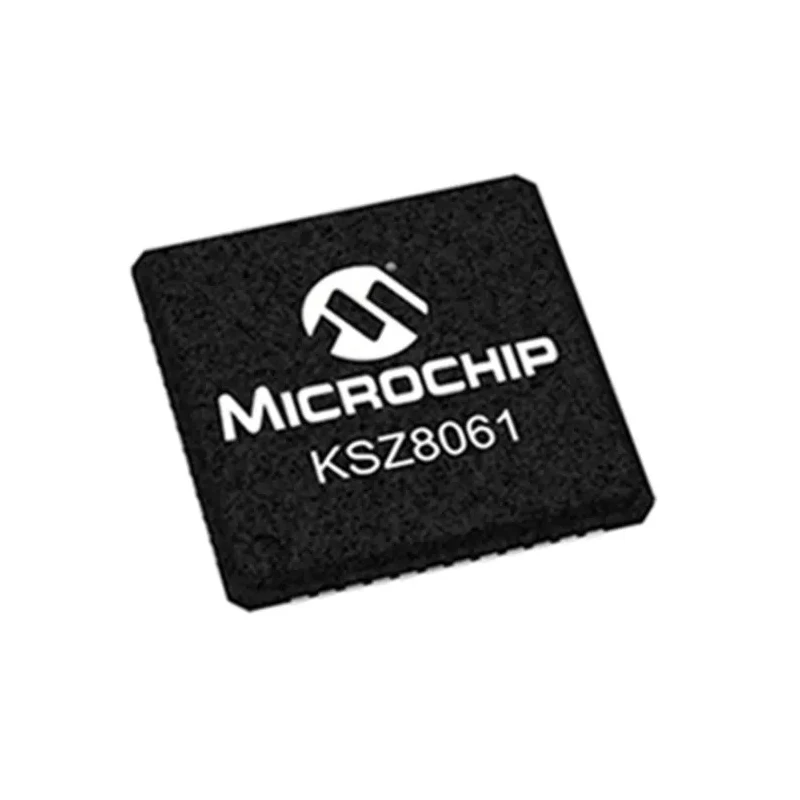

Microchip 48-Pin QFN Ethernet Transceiver KSZ8061MNGW 3.3 V 5 V 100 Mbps MII 10Base-T 100Base-TX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 800μm |
| Length | 7mm |
| Model | KSZ8061MNGW |
| Mount Type | Surface |
| Maximum Operating Temperature | 105°C |
| Package Type | QFN |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet |
| Communication Mode | 100Base-TX, 10Base-T |
| Interface Type | MII |
| Standards/Approvals | AEC-Q100 |
| Pin Count | 48 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Supply Current | 59mA |
| Maximum Data Rate | 100Mbps |
| Loopback Mode | Local (Digital) Loopback, Remote (Analogue) Loopback |
| Standard Supported | IEEE 802.3az |
| Number of Transceivers | 1 |
Key Features
- Supports 100Base-TX and 10Base-T Ethernet communication modes.
- Features MII interface with MDC/MDIO management for configuration.
- Includes Quiet-WIRE® programmable EMI filter for enhanced noise immunity.
- Complies with AEC-Q100 automotive standards for reliability.
- Supports local digital and remote analogue loopback modes for diagnostics.
- Provides on-chip termination resistors for differential pairs to improve signal integrity.
- Operates over temperature range of -40°C to 105°C, suitable for automotive environments.
- Low supply current consumption of 59 mA enhances power efficiency.
Product Description
Microchip KSZ8061MNGW is a high-performance 10Base-T/100Base-TX Ethernet transceiver housed in a compact 48-pin QFN surface-mount package. It supports dual supply voltages of 3.3 V and 5 V, delivering a maximum data rate of 100 Mbps via an MII interface. This transceiver is designed primarily for automotive and industrial applications that require robust and reliable Ethernet communication over unshielded twisted pair (UTP) cables.
The device integrates Microchip's Quiet-WIRE® technology, providing programmable noise filtering that reduces electromagnetic emissions and improves immunity to interference, enabling its use in stringent environments with emission limits where shielded cables were traditionally necessary.
KSZ8061MNGW supports IEEE 802.3az Energy Efficient Ethernet standards, featuring ultra deep sleep standby mode to reduce power consumption during idle periods. It includes local digital and remote analogue loopback modes to facilitate diagnostics and troubleshooting. On-chip termination resistors on differential pairs ensure optimal signal integrity.
Designed to meet AEC-Q100 automotive standards, this Ethernet transceiver performs reliably across a wide temperature range from -40°C to 105°C, making it ideal for automotive networking and industrial Ethernet applications.
The transceiver features a Media Independent Interface (MII) with MDC/MDIO management interface, allowing easy register configuration and integration with Ethernet MAC processors and switches. Additionally, a programmable interrupt output provides efficient event handling.
Supports 100Base-TX and 10Base-T Ethernet modes. Quiet-WIRE® EMI filtering reduces emission and increases immunity. Meets automotive AEC-Q100 standards for enhanced reliability. MII interface with management bus for configuration flexibility.
On-chip termination resistors optimize signal quality. Loopback modes support comprehensive diagnostic capabilities. Compliant with IEEE 802.3az for energy efficiency. Low supply current of 59 mA conserves power. Compact 48-pin QFN package simplifies PCB design.
Wide operating temperature range from -40°C to 105°C.
This Microchip KSZ8061MNGW Ethernet Transceiver is suitable for automotive, industrial, and commercial applications requiring robust Ethernet connectivity. Explore more semiconductor solutions and interface ICs on EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this Ethernet transceiver is 100 Mbps.
It supports dual supply voltages of 3.3 V and 5 V.
The KSZ8061MNGW supports 100Base-TX and 10Base-T Ethernet communication modes.
This transceiver uses a Media Independent Interface (MII) for communication.
It operates over a temperature range of -40°C to 105°C, suitable for automotive environments.
Yes, it supports local digital and remote analogue loopback modes for diagnostics and troubleshooting.
The package height is 800μm and the length is 7mm.
It complies with AEC-Q100 automotive standards for reliability.
The supply current consumption is 59 mA, enhancing power efficiency.
It includes Quiet-WIRE® programmable EMI filtering to reduce electromagnetic emissions and improve noise immunity.
This transceiver has a pin count of 48.
It is compliant with IEEE 802.3az Energy Efficient Ethernet standards.
