onsemi Transistor NPN Power 50 A 80 V TO-204 Through Hole 2-Pin 2N5686G

Free Delivery in India | Lowest Global Shipping Charges

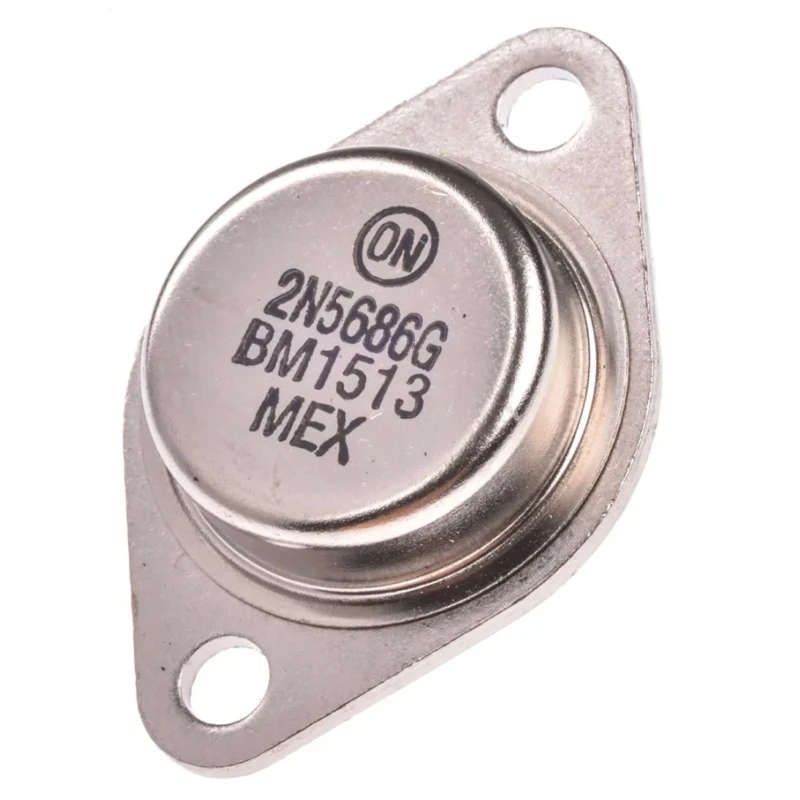

onsemi Transistor NPN Power 50 A 80 V TO-204 Through Hole 2-Pin 2N5686G

Name: onsemi Transistor NPN Power 50 A 80 V TO-204 Through Hole 2-Pin 2N5686G
Brand: onsemi
SKU: 382536
Price: 20.1 USD
Availability: InStock



Category Power Transistor Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	20.7mm
Length	38.86mm
Model	2N5686G
Width	27.67mm
Mount Type	Through Hole
Series	2N5686
Maximum Operating Temperature	200°C
Package Type	TO-204
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Collector Emitter Voltage Vceo	80V
Minimum DC Current Gain hFE	5
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	80V
Maximum Power Dissipation Pd	300mW
Maximum DC Collector Current Idc	50A
Transistor Configuration	Single
Maximum Transition Frequency ft	2MHz

Key Features

Supports a maximum DC collector current of 50 amperes.
Collector-emitter voltage rating of 80 volts ensures robust operation.
Built with a single transistor configuration and through-hole mount type.
Maximum power dissipation is 300 milliwatts.
Operates reliably at temperatures ranging from minus 65 to 200 degrees Celsius.
Features low minimum DC current gain of 5 for high power applications.
Includes 2 pins in the TO-204 package with dimensions 20.7 mm height, 38.86 mm length, and 27.67 mm width.
Maximum emitter-base voltage is 5 volts to protect the transistor junction.

Product Description

onsemi 2N5686G is a robust NPN power transistor designed for industrial and electronic applications requiring high collector current of 50 amperes and voltage rating of 80 volts. The transistor is housed in a durable TO-204 package featuring a through-hole mount type for easy integration into printed circuit boards.

Its electrical characteristics include a single transistor configuration with a maximum power dissipation of 300 milliwatts, enabling it to operate efficiently under demanding conditions. The device maintains operation reliability across a wide temperature range from -65°C to 200°C, making it suitable for harsh industrial environments.

The transistor features a minimum DC current gain (hFE) of 5 and a maximum emitter-base voltage of 5 volts, supporting stable switching and amplification. Its maximum transition frequency of 2 MHz ensures it can handle moderate switching speeds necessary in power electronics and driver circuits.

Physical dimensions include a height of 20.7 mm, length of 38.86 mm, and width of 27.67 mm, accommodating the 2-pin configuration of the TO-204 package. This transistor does not carry automotive standard approvals but complies with standard power transistor requirements.

Typical industrial applications include power conversion, amplification, switching in control systems, and other electronic component designs where high current and voltage capability are essential.

Supports a maximum DC collector current of 50 amperes. Collector-emitter voltage rating of 80 volts. Single transistor configuration with through-hole mount. Maximum power dissipation rated at 300 milliwatts. Wide operating temperature range from -65°C to 200°C.

Low minimum DC current gain of 5. Physical dimensions suitable for diverse PCB designs. NPN transistor polarity ideal for power electronic circuits. Maximum transition frequency of 2 MHz for moderate switching. Reliable and durable TO-204 packaging.

Explore more Power Transistors and semiconductors in our extensive Electronics & Electricals category at EnvMart to find the best fit for your industrial and commercial needs.
