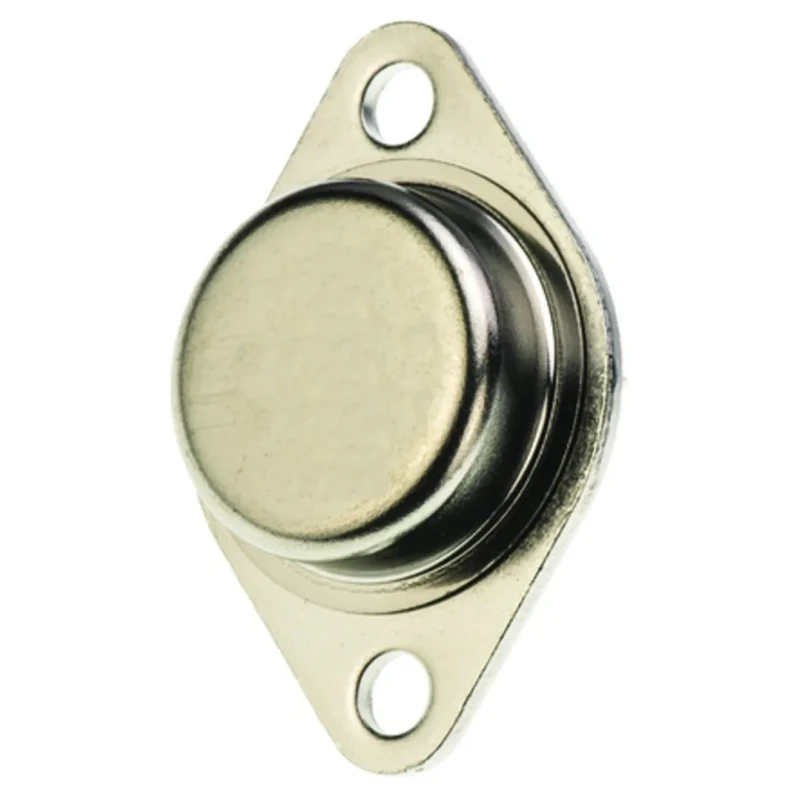

onsemi Transistor 15 A NPN 140 V 2-Pin TO-204 Power Transistor MJ15001G

onsemi MJ15001G Power Transistor is a high-performance NPN bipolar junction transistor designed for industrial and power electronics applications. Rated for a maximum collector current of 15 A and collector-emitter voltage of 140 V, it is ideal for switching and amplification in power control circuits. The transistor comes in a durable 2-pin TO-204 package, which facilitates through-hole mounting and efficient heat dissipation during operation.

Operating reliably across a wide temperature range from -65°C to 200°C, this transistor supports robust performance under demanding conditions. It exhibits a minimum DC current gain (hFE) of 25, ensuring stable signal amplification and switching characteristics. With a power dissipation capacity of 200 W, it can handle substantial loads in power regulation and conversion systems.

The transistor's maximum transition frequency of 2 MHz allows for moderate frequency switching applications common in industrial electronics, motor control, and power supply regulation. Sized at 39.37 mm length, 26.67 mm width, and 20.7 mm height, the compact form factor supports space-efficient PCB layouts. Its two-pin configuration simplifies circuit connection in through-hole PCB designs.

Typical use cases include industrial power supplies, motor drives, inverters, and other commercial electronics where high current and voltage control are necessary. The MJ15001G series does not include specific automotive certifications but meets general semiconductor standards for power transistors.

Suitable for electronic engineers and technicians requiring a robust transistor for power control and switching in various industrial and commercial environments. Designed for high power dissipation of up to 200 W. Operates within a temperature range from -65°C to 200°C.

Offers a maximum collector-emitter voltage (Vceo) of 140 V. Features a minimum DC current gain (hFE) of 25 for reliable amplification. Single transistor configuration provides straightforward circuit integration. Mount type is through hole for secure placement and heat dissipation.

Maximum transition frequency of 2 MHz suitable for switching applications. Compact dimensions: 39.37mm length, 26.67mm width, and 20.7mm height. Pin count consists of 2 pins compatible with standard TO-204 sockets. Non-automotive transistor without specific automotive standard certifications.
