Nexperia Digital Transistor 100 mA NPN 50 V 6-Pin SOT-457 PIMH9,115
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 3.1mm |
| Model | PIMH9,115 |
| Width | 3mm |
| Mount Type | Surface |
| Series | PIMH9 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-457 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 100 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 6V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 400mW |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | Isolated |
| Maximum Transition Frequency ft | 230MHz |
Key Features
- The transistor includes a 6-pin SOT-457 package for compact PCB applications.

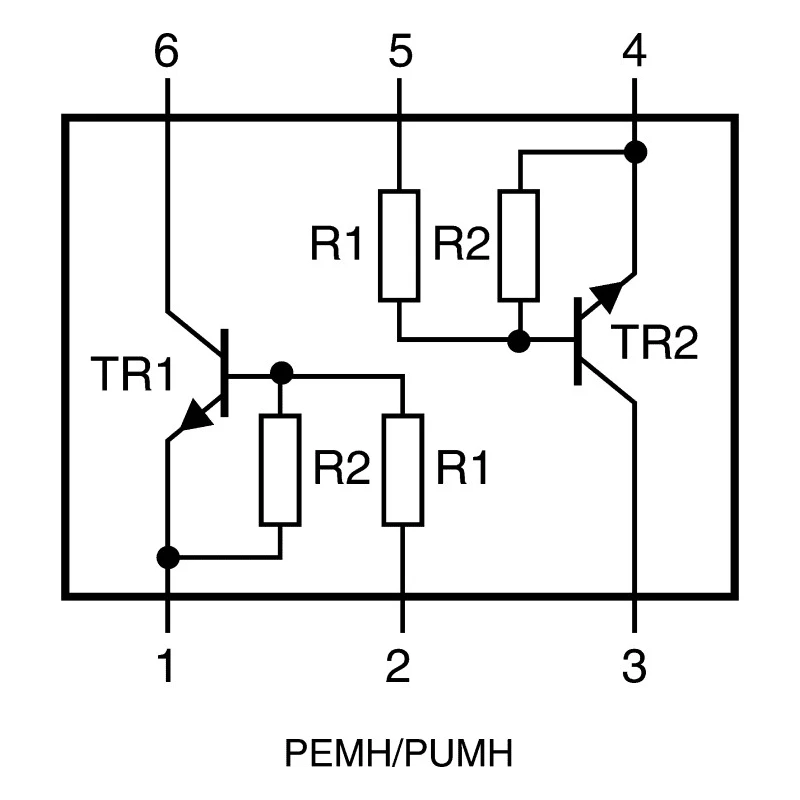

- Equipped with dual resistors integrated within the transistor for simplified digital input drive.
- Maximum power dissipation is rated at 400 mW ensuring reliable operation under load.
- Designed to operate from -55°C up to 150°C making it suitable for harsh environments.
- Achieves a minimum DC current gain (hFE) of 100 for efficient amplification.
- Complies with RoHS standards and is certified to the automotive AEC-Q101 standard.
- Features isolated transistor configuration with a maximum transition frequency of 230 MHz.
Product Description
Nexperia PIMH9,115 digital transistor is a high-performance bipolar transistor configured as NPN with integrated resistors for digital signal drive, housed in a 6-pin SOT-457 surface-mount package. It supports a maximum DC collector current of 100 mA and a collector emitter voltage of up to 50 V, enabling its use in various electronic and industrial semiconductor applications.
This device operates effectively across a broad temperature range from -55°C to 150°C, providing robust reliability in automotive and industrial environments. Its power dissipation rating is 400 mW, and it meets stringent standards including RoHS compliance and AEC-Q101 automotive certification, confirming suitability for automotive electronic systems.
The PIMH9,115 achieves a minimum DC current gain (hFE) of 100 and a maximum transition frequency of 230 MHz, delivering effective switching and amplification for digital and analog signal processing. The transistor’s isolated configuration supports independent transistor operation with integrated bias resistors for easy interfacing with logic-level signals.
Compact dimensions (3.1 mm length, 3 mm width, and 1.1 mm height) enable PCB space saving in high-density applications. The device is manufactured in Malaysia under stringent quality controls.
100 mA max DC collector current for moderate power handling. Surface mount 6-pin SOT-457 package supporting compact PCB design. Integrated bias resistors reduce component count and simplify design. Automotive-grade AEC-Q101 certification ensures high reliability standards.
RoHS compliant, supporting environmental regulations. Wide operating temperature range for industrial and automotive environments. High transition frequency enables high-speed switching applications. Dual digital transistor configuration for flexible circuit designs.
This product is ideal for industrial, automotive, and electronics manufacturing applications requiring reliable digital transistor solutions with integrated resistors in compact surface-mount packages. Explore more semiconductor components from Nexperia and related Digital Transistors via EnvMart's electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current for the Nexperia PIMH9,115 is 100 mA.
This model operates effectively within a temperature range of -55°C to 150°C.
The maximum collector-emitter voltage (Vceo) rating is 50 V.
The maximum transition frequency of this digital transistor is 230 MHz.
The SOT-457 package has dimensions of 3.1 mm in length, 3 mm in width, and 1.1 mm in height.
The minimum DC current gain (hFE) for this transistor is 100.
This model features an isolated transistor configuration with integrated resistors.
Yes, the PIMH9,115 complies with RoHS standards.
This transistor is certified to the automotive AEC-Q101 standard.
The maximum power dissipation rating for this model is 400 mW.
The country of origin for the Nexperia PIMH9,115 is Malaysia.
This transistor supports surface mounting in a 6-pin configuration.
