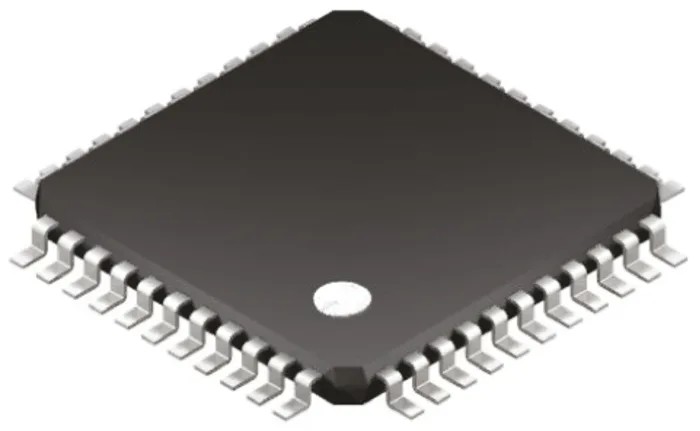

Microchip 16 bit Digital Signal Processor 60 MHz 512kB FLASH 44-Pin TQFP DSPIC33EP512GM304-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | DSPIC33EP512GM304-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 48kB |
| ADC Resolution | 19bit |
| Timer Resolution | 32bit |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 60MHz |
| Number of Timers | 1 |
| Instruction Set Architecture | Harvard |
| Program Memory Type | FLASH |
| Number of ADCs | 2 |
| Device Million Instructions per Second | 70MIPS |
| Number of PWM Units | 1 |
| PWM Resolution | 16bit |
| ADC Channels | 18 |
| Number of PWM Channels | 12 |
Key Features
- Operates at a clock frequency up to 60 MHz for high-performance computing.
- Provides 512kB of FLASH program memory for extensive code storage.
- Features 48kB RAM for data processing and storage.
- Includes 2 ADCs and 12 PWM channels for versatile peripheral control.
- Equipped with a 16-bit data bus and Harvard instruction set architecture.
- Designed with surface mount type and TQFP package for compact integration.
- Operates within a supply voltage range of 3 to 3.6 V for reliable performance.
- Supports an operating temperature range from -40°C up to 85°C for harsh environments.
Product Description
Microchip DSPIC33EP512GM304-I/PT is a 16 bit Digital Signal Processor designed for industrial and automotive applications. Operating at a maximum clock frequency of 60 MHz, this device offers high computing performance with up to 70 Millions of Instructions Per Second (MIPS). It integrates 512kB of FLASH program memory and 48kB of RAM, supporting complex algorithms and data processing needs.
This processor features a 16-bit data bus and Harvard architecture for optimized instruction throughput. It includes built-in peripherals such as 2 ADCs with 19-bit resolution, 12 PWM channels, and timers with 32-bit resolution. The device supports surface mounting in a compact 44-Pin TQFP package measuring 10 mm in length and width with a height of 1.05 mm, facilitating space-efficient PCB designs.
Supply voltage ranges from 3 V to 3.6 V, ensuring stable operation, while the operating temperature range from -40°C to 85°C allows use in demanding environmental conditions. It also includes onboard features such as Power-On Reset, Brown-Out Reset, and Extended Watchdog Timer for reliability.
The DSPIC33EP512GM304-I/PT is compliant with the automotive standard AEC-Q100, qualifying it for automotive and industrial control systems. It supports In-Circuit Serial Programming (ICSP) and In-Circuit Debugging (ICD) to streamline development and testing processes.
Operates up to 60 MHz maximum clock frequency. 512kB FLASH program memory and 48kB RAM for intensive processing. 2 ADCs and 12 PWM channels enable versatile signal management. Surface mount TQFP 44-pin package ensures compact footprint.
Wide voltage range of 3 to 3.6 V for stable operation. Temperature tolerance from -40°C to 85°C suits harsh conditions. Automotive standard AEC-Q100 certified for automotive use. Features advanced on-chip timers and watchdog timers for control.
Supports in-circuit programming and debugging for efficient design cycles.
This Microchip digital signal processor is suitable for embedded system applications involving motor control, power electronics, industrial automation, and automotive electronics where high performance and reliability are essential. It supports complex algorithms requiring fast signal processing and extensive memory resources.
Explore more Digital Signal Processors and embedded controllers on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency is 60 MHz, allowing for high-performance computing capabilities.
It features 512kB of FLASH program memory for extensive code storage and complex algorithm support.
The operating temperature range is from -40°C to 85°C, making it suitable for harsh environments.
This model includes 2 ADCs with a resolution of 19 bits, supporting accurate data acquisition.
It has 48kB of RAM available for data processing and storage needs.
It supports 12 PWM channels, providing versatile peripheral control capabilities.
The DSPIC33EP512GM304-I/PT comes in a TQFP package type with a pin count of 44.
It operates within a supply voltage range of 3 to 3.6 V, ensuring stable performance.
It utilizes a Harvard instruction set architecture, which optimizes instruction throughput.
Yes, it is compliant with the automotive standard AEC-Q100, qualifying it for automotive applications.
The dimensions are 10 mm in length and width, with a height of 1.05 mm, facilitating compact integration.
It includes onboard features such as Power-On Reset, Brown-Out Reset, and an Extended Watchdog Timer for enhanced reliability.
