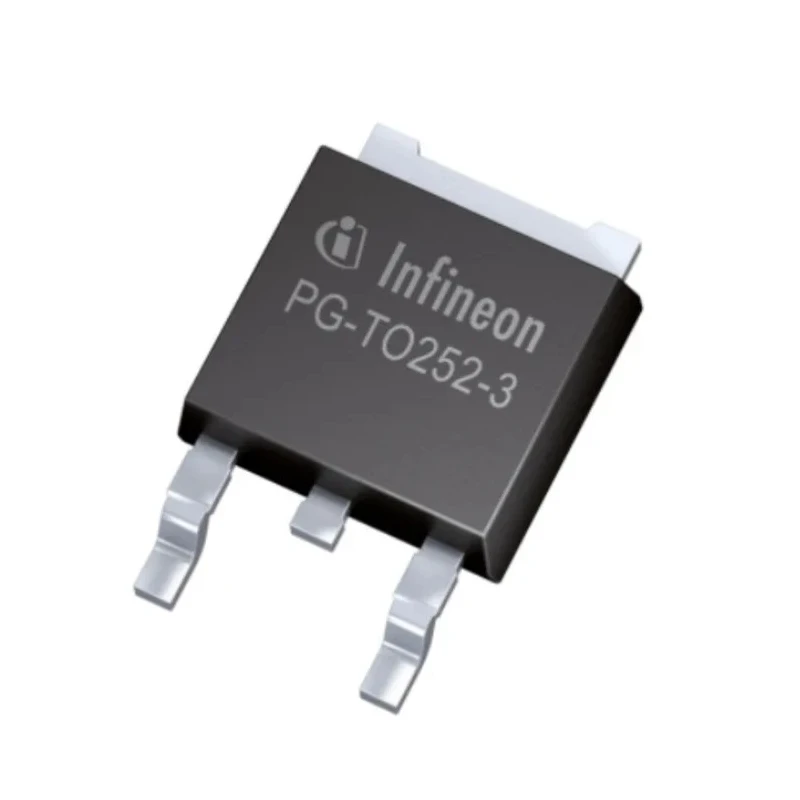

Infineon Low Side Power Switch IC, 3-Pin TO-252, HITFET Series, 35V Max, 4A, BTS3060TFATMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.15mm |
| Length | 4.9mm |
| Model | BTS3060TFATMA1 |
| Width | 6mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | HITFET |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 4A |
| Number of outputs | 5 |
| Pin Count | 3 |
| Automotive Standard | AEC |
| Maximum Supply Voltage | 35V |
| Minimum Supply Voltage | -0.3V |
| Switch On Resistance RdsOn | 135mΩ |
Key Features
- Single channel low-side power switch for reliable power control.
- TO-252 package enables surface mount integration.
- Compatible with 3.3V microcontrollers for versatile interfacing.
- Maximum operating current of 4A for moderate loads.
- Rated for up to 35V supply voltage and -0.3V minimum.
- Robust MOSFET switching with 135mΩ RdsOn and low leakage.
- Automotive qualified AEC standard for enhanced reliability.
- Operating temperature range from -40°C to +150°C.
Product Description
Infineon BTS3060TFATMA1 is a single channel, low-side power switch IC designed for applications that demand high reliability and precise control. Its TO-252 (PG-TO252-3) package enables surface mount deployment, making it suitable for compact board layouts in automotive and industrial systems.
This HITFET Series smart power switch integrates an N-channel vertical power MOSFET and offers embedded protective functions such as active clamping for overvoltage protection. It is automotive qualified to AEC standards and well suited for 12V automotive as well as industrial power management solutions.
Single channel low-side power switch supports efficient load control. Surface mount TO-252 package with a compact footprint. Direct compatibility with 3.3V microcontroller logic. Maximum operating current capability of 4A ensures moderate power handling.
Operates over a wide supply voltage range, from -0.3V minimum to 35V maximum. Integral power MOSFET offers low 135mΩ switch on resistance and minimal DMOS leakage. AEC-qualified for demanding automotive environments. Broad operating temperature range, from -40°C to +150°C, suitable for harsh conditions.
HITFET series active clamping technology provides advanced protection against voltage spikes. Ideal for use in automotive electronic control units, industrial power management, and robust switching circuits.
Typical applications include load driver circuits, power distribution systems, automotive ECUs, and compact industrial boards requiring precise low-side switching. Device meets RoHS compliance and can be integrated into designs where high reliability and safety are critical.
For more Infineon semiconductors and power management components, browse EnvMart's full catalog of automotive and industrial electronics.
Explore more products in our Power Switch ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 35V.
This unit has a maximum operating current capability of 4A.
It comes in a TO-252 package, which enables surface mount integration.
The switch on resistance (RdsOn) is 135mΩ.
The operating temperature range is from -40°C to +150°C.
Yes, it is directly compatible with 3.3V microcontroller logic.
This model is qualified to AEC standards for automotive applications.
It has 1 input and 5 outputs.
It is suitable for load driver circuits and power distribution systems in automotive and industrial applications.
It integrates protective functions such as active clamping for overvoltage protection.
The dimensions are 4.9mm in length, 6mm in width, and 1.15mm in height.
The country of origin for this model is India.
