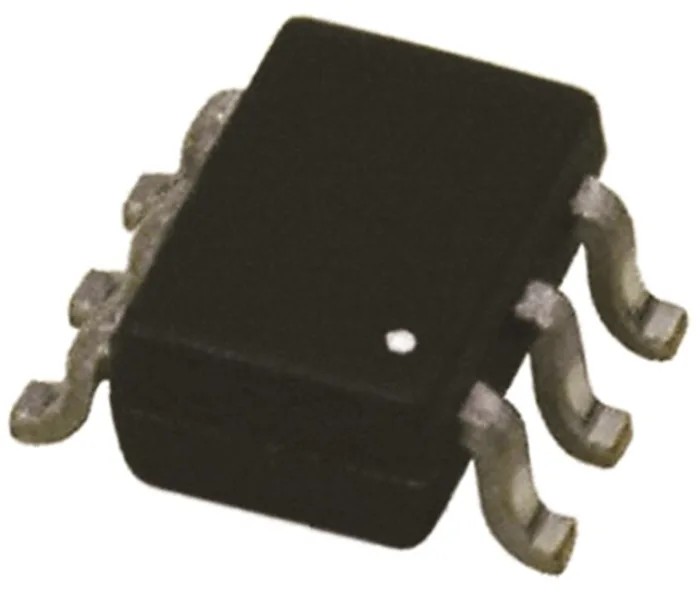

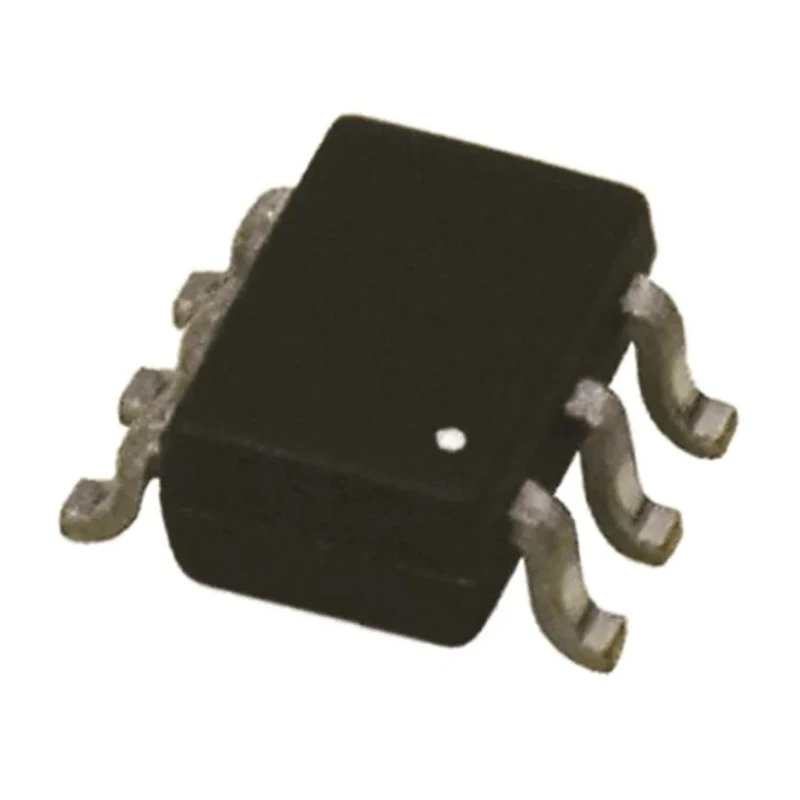

Nexperia Inverter Schmitt Trigger Input 2 Elements 6-Pin SC-88, Surface Mount 74HCT2G14GW,125

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Inverter Schmitt Trigger Input 2 Elements 6-Pin SC-88, Surface Mount 74HCT2G14GW,125

Name: Nexperia Inverter Schmitt Trigger Input 2 Elements 6-Pin SC-88, Surface Mount 74HCT2G14GW,125
Brand: Nexperia
SKU: 345410
Price: 0.22 USD
Availability: InStock



Category Inverter Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	2.2mm
Model	74HCT2G14GW,125
Width	1.35mm
Mount Type	Surface
Compatibility	Input TTL, Output CMOS
Series	74HCT2G14
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	SC-88
Minimum Operating Temperature	-40°C
Pin Count	6
Number of Elements per Chip	2
Maximum Supply Voltage	6V
Logic Family	HCT
Logic Function	Inverter
Minimum Supply Voltage	2V
Maximum High Level Output Current	-4mA
Maximum Propagation Delay Time @ CL	190ns
Maximum Low Level Output Current	4mA

Key Features

The device operates with a supply voltage range of 2 to 6 volts.
It features a maximum propagation delay time of 190 nanoseconds at specified load conditions.
Maximum high-level output current is -4mA and low-level output current is 4mA.
Operating temperature spans from -40°C to 125°C suitable for industrial use.
The compact package dimensions are 2.2mm length, 1.35mm width, and 1mm height.
Compatible with TTL input and CMOS output logic families.
Surface mount (SC-88) package mount type ensures ease of PCB integration.
No automotive standard compliance is indicated for this product.

Product Description

Nexperia 74HCT2G14GW,125 is a reliable Schmitt Trigger Input Inverter IC featuring 2 elements per chip in a compact 6-pin SC-88 surface mount package. It is designed using 74HCT family high-speed CMOS logic technology optimized for industrial and commercial electronics.

This device operates within a supply voltage range of 2V to 6V, making it suitable for low power digital circuit applications. It provides a maximum propagation delay time of 190ns at the specified load capacitance, ensuring efficient signal inversion with minimal latency.

The inverter outputs a maximum high-level output current of -4mA and a low-level output current of 4mA, supporting robust driving capability for downstream logic circuitry. Operating temperature ranges from -40°C to 125°C allow use in harsh environments and extended industrial temperature ranges.

The package dimensions measure 2.2mm in length, 1.35mm in width, and 1mm in height, fitting well in space-constrained PCB layouts leveraging surface mount technology (SC-88). The Schmitt trigger input configuration provides enhanced noise immunity, stabilizing input transitions in noisy industrial or automotive environments.

This inverter IC is compatible with TTL input and CMOS output logic standards, allowing seamless integration into mixed-logic systems. Although it lacks specific automotive standard approval, it is suitable for a wide variety of industrial, laboratory, manufacturing, and electronic subsystem designs requiring high-speed inverters and buffers.

Schmitt trigger input increases noise immunity and signal stability. High-speed CMOS logic technology for fast switching performance. Compact 6-pin SC-88 surface mount package enables miniaturized circuit design. Wide operating voltage and temperature ranges ensure versatile applicability.

Ideal for embedded systems, signal processing, and control equipment. Explore more Nexperia Inverters and semiconductor components for your advanced electronic projects on EnvMart.
