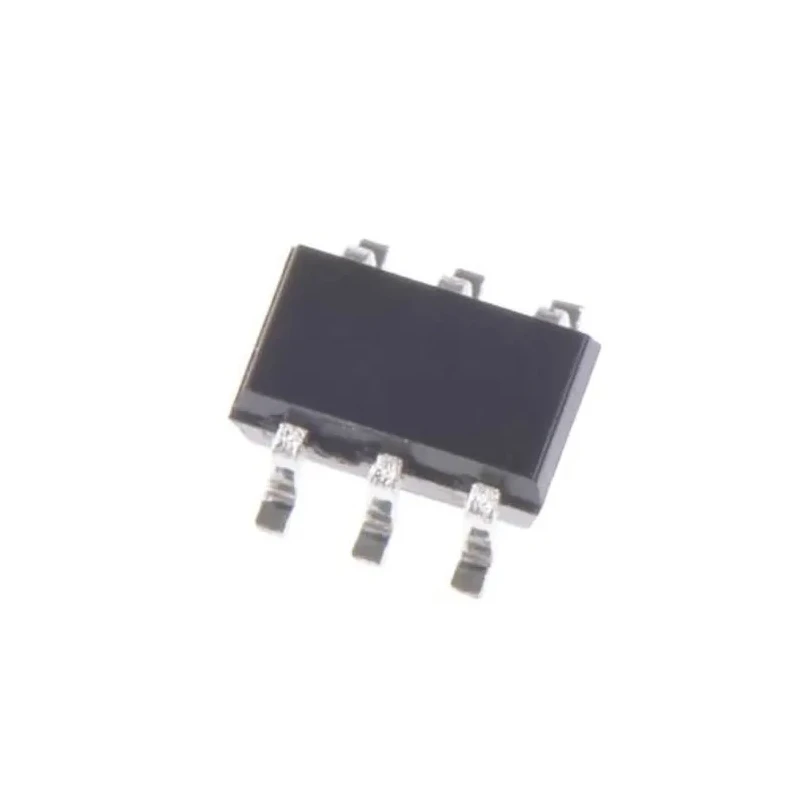

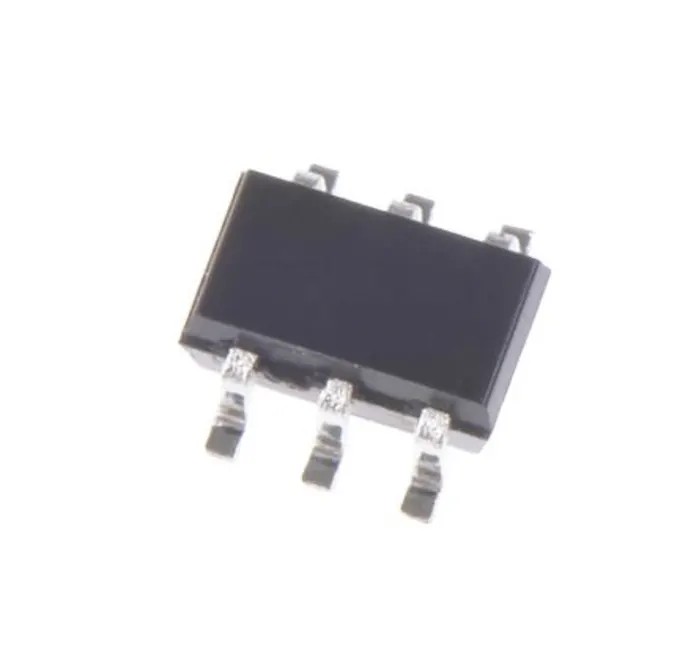

onsemi 5-Element Uni-Directional ESD Protection Array, 100 W, 6-Pin SC-88 SMF05CT2G

onsemi SMF05CT2G 5-Element Uni-Directional ESD Protection Array is a high-performance array designed to protect sensitive electronic devices from electrostatic discharge (ESD) and transient voltage spikes. This device incorporates five independent protection lines integrated into a single SC-88 surface mount package, enabling compact solutions for a variety of applications.

Featuring a uni-directional diode configuration, the SMF05CT2G provides effective protection against positive transient voltages, making it ideal for safeguarding data lines, interface ports, and automotive electronic circuits. It can dissipate peak pulse power of 100 W (8x20 µs waveform) ensuring robust surge handling capability.

The device operates over a wide temperature range from -40°C to 125°C and meets the automotive industry standard AEC-Q101, demonstrating its reliability in harsh environments. With a small footprint and 6-pin layout, it facilitates easy integration on compact PCBs while maintaining superior protection performance.

Key specifications include a minimum breakdown voltage of 6.2 V, a maximum reverse standoff voltage of 15 V, clamping voltage of 12.5 V, peak pulse current up to 8 A, and an extremely low maximum reverse leakage current of 5 µA. These parameters ensure effective surge suppression and minimal impact on normal circuit operation.

Typical use cases encompass handheld portable electronics, telecommunications networks, automotive electronics, serial and parallel data ports, as well as computing devices such as notebooks, desktops, and servers. The monolithic common cathode internal design simplifies interfacing multiple ESD protected lines.

Protects up to 5 lines in a compact SC-88 package. Uni-directional diode configuration for effective ESD protection. Peak pulse power dissipation rating of 100 W with an 8x20 µs waveform. Operates within a temperature range of -40°C to 125°C.

Automotive AEC-Q101 standard compliant ensuring high reliability. Surface mount package with 6 pins and dimensions of 2.2mm length by 1.35mm width by 1mm height. Minimum breakdown voltage of 6.2 V and maximum reverse standoff voltage of 15 V.

Clamping voltage of 12.5 V for surge transient protections. Maximum peak pulse current capability of 8 A and low leakage current of 5 µA. Ideal for protecting sensitive electronic components in automotive, network communication, and computing equipment.

The SMF05CT2G is an efficient choice for designers seeking compact, reliable, and automotive-grade ESD protection arrays. EnvMart provides this component to support industrial, automotive, and commercial electronics manufacturing needs.
