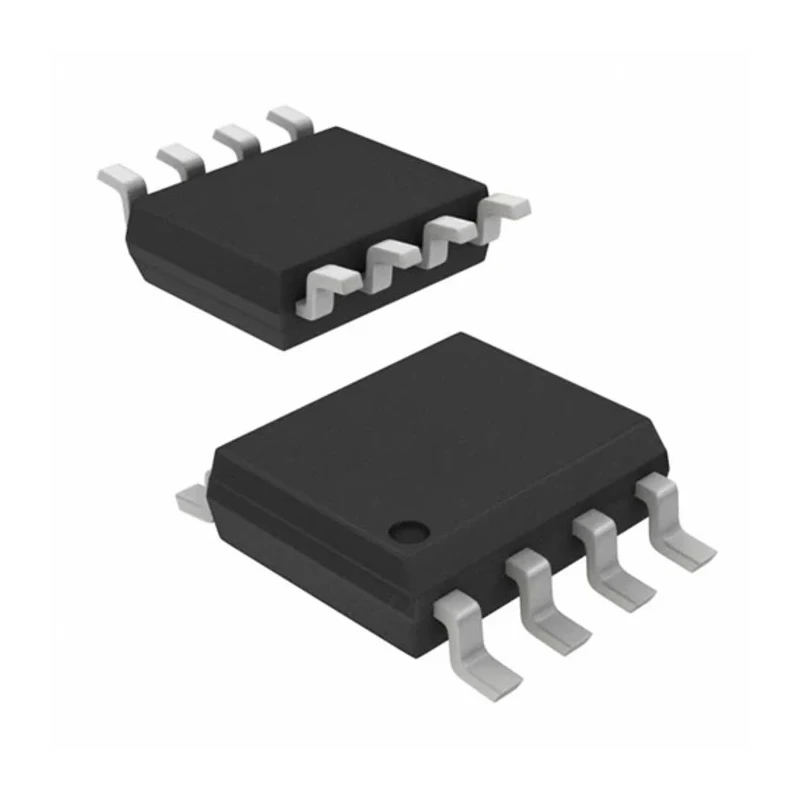

NXP 2-Channel I/O Expander SO 8 Package, Surface Mount, 5.5V Max Supply PCA9517AD,118
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Height | 1.75mm |
| Length | 5mm |
| Model | PCA9517AD,118 |
| Mount Type | Surface |
| Series | PCA9517 |
| Maximum Operating Temperature | 85°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 900mV |
| Clock frequency | 400kHz |
| Number of I/O Channels | 2 |
Key Features
- Operates with a clock frequency up to 400kHz enabling efficient data communication.
- Supports low to high voltage levels from 0.9V up to 5.5V supply operation.
- Has 2 bidirectional I/O channels suitable for bus extension and buffering.
- Compact 8-pin SO package with dimensions 5mm length and 1.75mm height.
- Robust operating temperature range from -40°C to 85°C for industrial applications.
- Features lock-up free operation with open-drain input/output to maintain signal integrity.
- Surface mount package type suitable for automated PCB assembly.
- Compliant with I2C bus protocol without automotive standards certification.
Product Description
The NXP PCA9517AD,118 is a specialized 2-channel I/O Expander IC offered in a compact SO 8 surface mount package, designed for voltage level shifting in I2C and SMBus environments where supply voltages range from as low as 0.9V to 5.5V.
This device enables seamless communication between buses operating at different voltage levels by providing bidirectional buffering on both the data (SDA) and clock (SCL) lines, supporting clock frequencies up to 400kHz. Its lock-up free operation and open-drain I/O ensure reliable, high-integrity signal transmissions.
With an 8-pin package measuring 5mm in length and 1.75mm in height, the PCA9517AD,118 is optimized for space-constrained industrial and electronic applications. It supports operating temperatures from -40°C to 85°C, making it suitable for harsh environmental conditions.
This semiconductor component fits well into electronic devices requiring level shifting and extended I2C bus functionality such as industrial controllers, embedded systems, and other communication devices. It is mounted using standard surface mount technology, allowing easy integration into automated manufacturing processes.
Operates up to 400kHz clock frequency for fast data transfer. Voltage supply range from 0.9V to 5.5V supports diverse system requirements. Two I/O channels provide level shifting and buffering for I2C buses. Compact SO 8 package with dimensions ideal for PCB designs.
Wide temperature rating suitable for industrial and commercial use. Open-drain input/output and lock-up free operation enhance reliability. Surface mount device compatible with modern PCB assembly processes. Maintains compliance with I2C communication protocols.
This product is ideal for use in electronics manufacturing, industrial automation, embedded systems, and communication equipment where level shifting and signal integrity across different voltage domains are critical.
Explore more semiconductor and interface IC products in the Electronics & Electricals category at EnvMart to find complementary components for your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5V.
It operates with a clock frequency of up to 400kHz, enabling efficient data communication.
This unit has a robust operating temperature range from -40°C to 85°C, suitable for industrial applications.
The PCA9517AD,118 features 2 bidirectional I/O channels.
This I/O expander is housed in an 8-pin SO package with dimensions of 5mm in length and 1.75mm in height.
Yes, it maintains compliance with I2C communication protocols, making it suitable for various applications.
It utilizes a surface mount type suitable for automated PCB assembly.
The minimum supply voltage for this model is 0.9V.
This I/O expander is designed for use in industrial controllers, embedded systems, and communication devices requiring level shifting and signal integrity.
Yes, it features lock-up free operation and open-drain I/O which enhance signal integrity during transmission.
This model has a pin count of 8.
The country of origin for this model is India.
