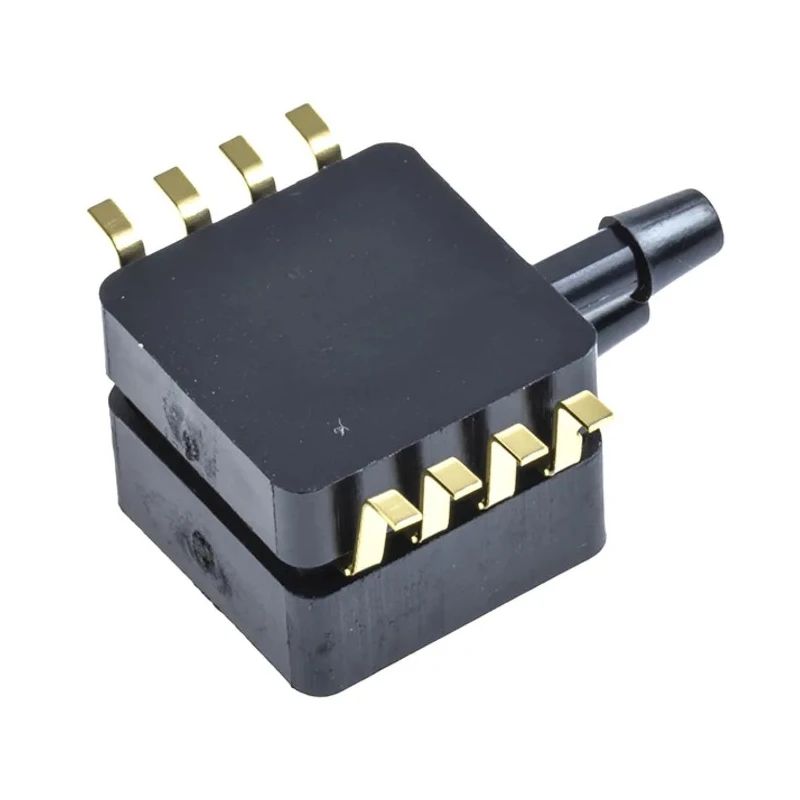

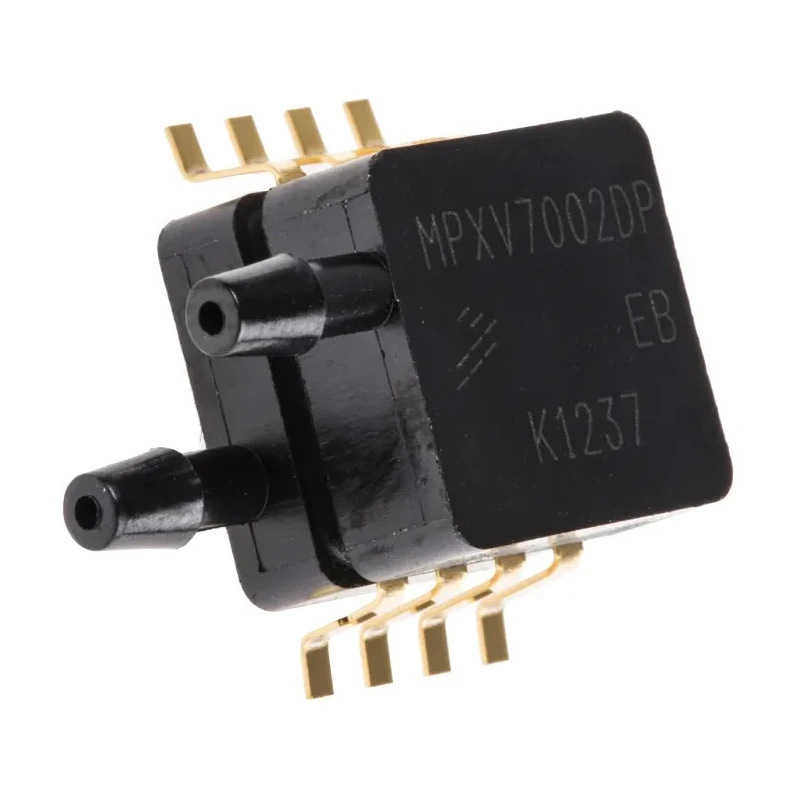

NXP Differential Pressure Sensor Surface Mount DIP Package 8 Pin 4.5V Max Output Voltage MPXV7002DP
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±2.5 % |
| Brand | NXP |
| Maximum Operating Pressure | 2 kPa |
| Height | 300μm |
| Length | 700μm |
| Model | MPXV7002DP |
| Sensor Type | Differential Pressure Sensor |
| Width | 400μm |
| Mount Type | Surface |
| Series | MPXV7002DP |
| Maximum Operating Temperature | 60°C |
| Port Type | Dual Radial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | 10°C |
| Maximum Output Voltage | 4.5V |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 4.5V |
| Minimum Operating Pressure | -2kPa |
| Maximum Overload Pressure | 75kPa |
Key Features
- The sensor supports a maximum overload pressure of 75 kPa.
- It operates accurately within ±2.5% tolerance.
- Designed for a supply voltage range of 4.5 V to 5.25 V.
- Maximum operating pressure capability is 2 kPa, suitable for sensitive applications.
- Operating temperature range is from 10°C to 60°C.
- The package dimensions measure 700 μm length, 400 μm width, and 300 μm height.
- Features dual radial barbed port type for differential pressure.
- Does not comply with automotive standards.
Product Description
NXP MPXV7002DP Differential Pressure Sensor is a highly precise 8-pin surface mount pressure sensor packaged in a DIP form factor supporting a maximum supply voltage of 5.25 V. It is specifically designed for differential pressure measurement applications with maximum operating pressure of 2 kPa and maximum overload pressure up to 75 kPa.
The sensor offers ±2.5% accuracy, making it suitable for critical monitoring and control solutions in industrial automation, HVAC systems, laboratory instrumentation, and manufacturing equipment.
The device features dual radial barbed ports engineered for differential pressure inputs with the capability of sensing pressure ranges from -2 kPa (vacuum) up to 2 kPa, allowing applications that require vacuum and gauge pressure sensing.
Operating temperature range is between 10°C and 60°C, suitable for moderate environment conditions. The compact package measures 700 μm in length, 400 μm width, and 300 μm height, facilitating integration into densely packed electronic assemblies.
Although the sensor does not conform to automotive standards, it is ideal for laboratory, industrial process control, and pneumatic or hydraulic pressure monitoring. Maximum overload pressure of 75 kPa ensures reliability under pressure spikes.
Accurate and stable output with ±2.5% total error band. Surface mount DIP package simplifies PCB assembly processes. Compact dimensions promote integration in space-constrained layouts. Supports industrial and laboratory differential pressure sensing needs.
Supplies a maximum output voltage of 4.5 V for signal processing. Model number MPXV7002DP ensures compatibility and support with existing electronic designs. Explore our Electronics & Electricals category for more advanced Pressure Sensor ICs and sensor solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the NXP MPXV7002DP differential pressure sensor is 2 kPa.
This model operates with an accuracy of ±2.5%.
The sensor supports a supply voltage range from 4.5 V to 5.25 V.
The package dimensions are 700 μm in length, 400 μm in width, and 300 μm in height.
The maximum overload pressure capability is 75 kPa.
It operates within a temperature range of 10°C to 60°C.
This sensor features dual radial barbed ports for differential pressure measurement.
The minimum operating pressure is -2 kPa, allowing for vacuum applications.
This model has an 8-pin configuration.
It is suitable for industrial automation, HVAC systems, laboratory instrumentation, and manufacturing equipment.
No, this sensor does not comply with automotive standards.
The package type is DIP (Dual In-line Package).
