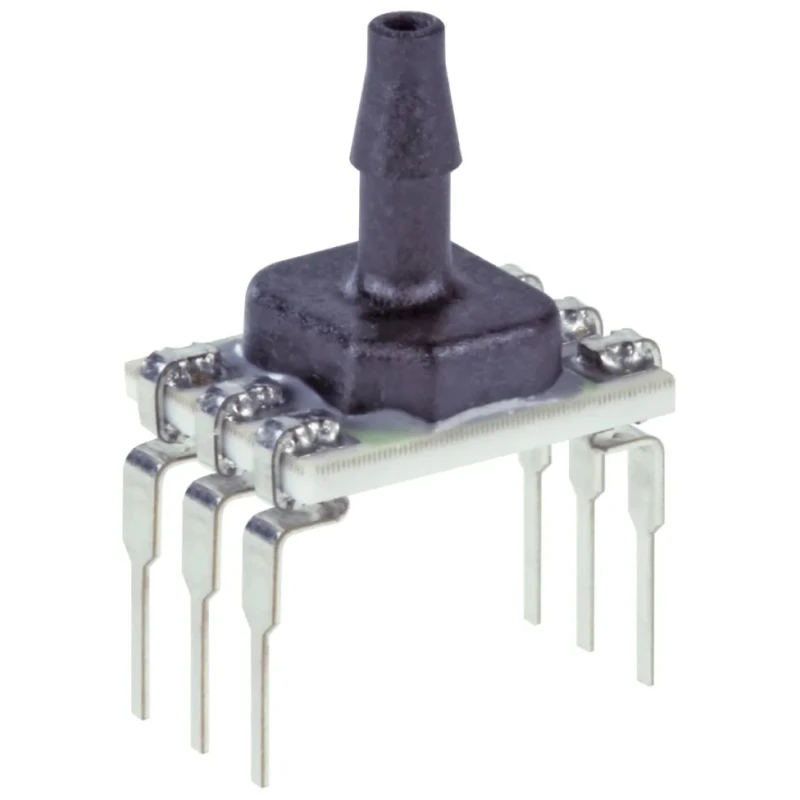

Honeywell Technologies Pressure Sensor Board 6 DIP 60 psi Operating Pressure ±0.25% Accuracy ABPDANN060PGAA5

Honeywell ABPDANN060PGAA5 is a high-precision gauge pressure sensor board, designed for reliable pressure measurement and control in industrial, medical, and commercial electronic assemblies. The board-mounted device features a DIP 6-pin package allowing easy PCB installation.

This piezoresistive pressure sensor provides a maximum operating pressure of 60 psi and a high overload capacity of 250 psi, ensuring robustness in demanding environments. The sensor operates at low voltage levels, supporting 3.3V or 5V power supplies, making it compatible with a wide range of low-voltage systems.

Featuring a ±0.25% accuracy, it delivers precise calibrated outputs that are temperature compensated for offset and sensitivity over a wide temperature range from -40°C to +85°C. Its single axial barbed port is suitable for connection to non-corrosive gases and selected liquids, especially in food-safe settings with BPA-free materials compliant with NSF-169 standards.

The sensor supports analogue ratiometric outputs and digital 12-bit outputs compatible with I2C and SPI interfaces, updating pressure readings at up to 1kHz for analogue and 2kHz for digital outputs, enabling fast and stable measurements suitable for critical applications.

Common industrial applications include CPAP and ventilator pressure monitoring, pneumatic valve controls, process gas monitoring in plants, and measurement in food and pharmaceutical equipment. The sensor is mechanically robust against vibration up to 15g and shock up to 100g, with additional protection via moisture sensitivity level 2 certification for soldering.

The sensor provides ±0.25% accuracy for precise pressure monitoring. Maximum overload pressure rating of 250psi ensures durability. Low voltage operation compatible with 3.3V and 5V power supplies. Ratiometric analog and 12-bit digital outputs via I2C/SPI interfaces.

Operates reliably from -40°C to +85°C temperature range. Single axial barbed port for non-corrosive gases and liquids. BPA free and NSF-169 compliant materials for food-safe applications. Robust mechanical tolerances including vibration and shock resistance.
