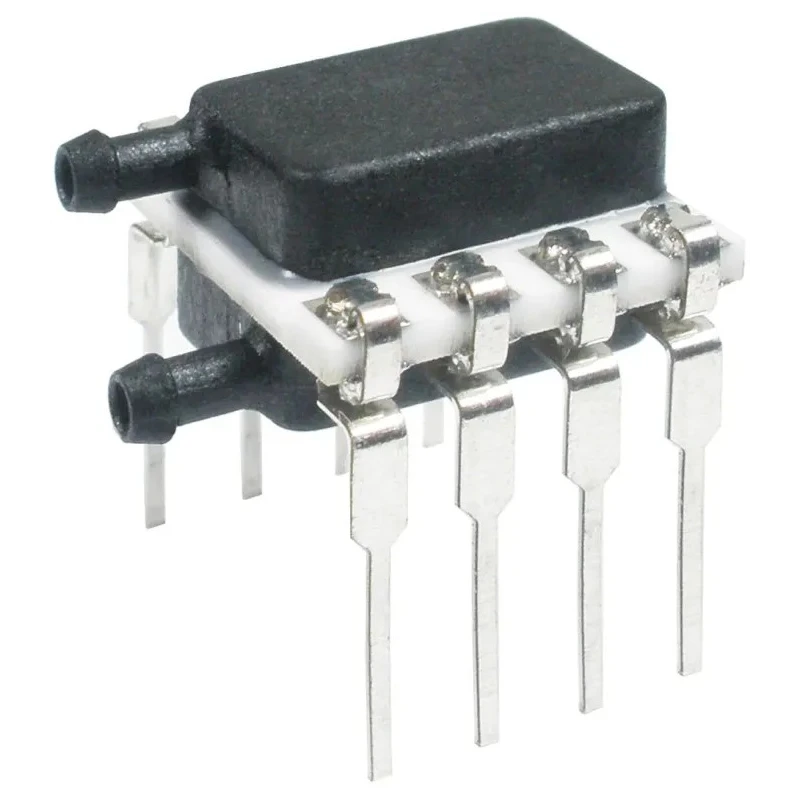

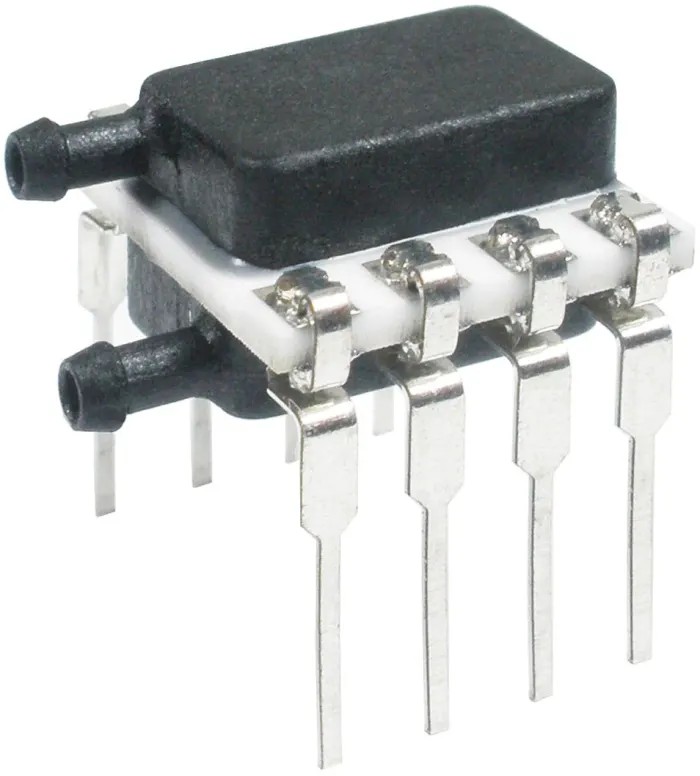

Honeywell Technologies Gauge Pressure Sensor Board 8 DIP 3.3-5V Piezoresistive HSCDRRD006MGAA5

Honeywell Technologies HSCDRRD006MGAA5 Gauge Pressure Sensor Board 8 DIP is a precision piezoresistive sensor designed for measuring low pressure relative to ambient atmospheric pressure. It operates with supply voltages from 3.3V to 5V and provides ±0.25% accuracy, delivering reliable sensor output in demanding industrial and medical applications.

This sensor’s dual radial barbed port design facilitates easy and secure tubing connections. Its compact 8-pin DIP package allows straightforward mounting on printed circuit boards, enabling integration into compact devices.

The sensor is calibrated and temperature-compensated using an on-board ASIC to maintain accuracy and compensate for offset, sensitivity, and non-linearity across the industrial standard temperature range from -20°C to +85°C. The maximum operating pressure is 6 mbar with an overload tolerance up to 675 mbar, making it suitable for sensitive pressure measurements of gases and select non-corrosive liquids.

Low power consumption below 10mW makes it suitable for battery-powered and portable instruments. The unit supports ratiometric analogue or digital output, simplifying connection to microcontrollers for airflow measurement, gas flow instrumentation, HVAC systems, and medical respiratory equipment.

Typical applications include respiratory ventilators, gas chromatography instruments, HVAC filter clog detection and VAV control, medical oxygen concentrators, anesthesia delivery equipment, and industrial barometry and flow calibration systems.

Measures pressure relative to atmosphere at ±0.25% accuracy. Operates from 3.3V to 5V with low power consumption under 10mW. Dual radial barbed ports for flexible fluidic connections. Compact 8-pin DIP board mount package.

Calibrated and temperature-compensated over −20 to +85°C. Maximum overload pressure rating 675 mbar for protection. Provides analogue or digital output for direct MCU interfacing. Suitable for medical, HVAC, industrial, and laboratory applications.

This Honeywell HSCDRRD006MGAA5 sensor is a robust choice for integrating precise low-pressure measurements into industrial, laboratory, HVAC, medical, and manufacturing environments. Explore more Pressure Sensor ICs and sensor components on EnvMart for your next project.
