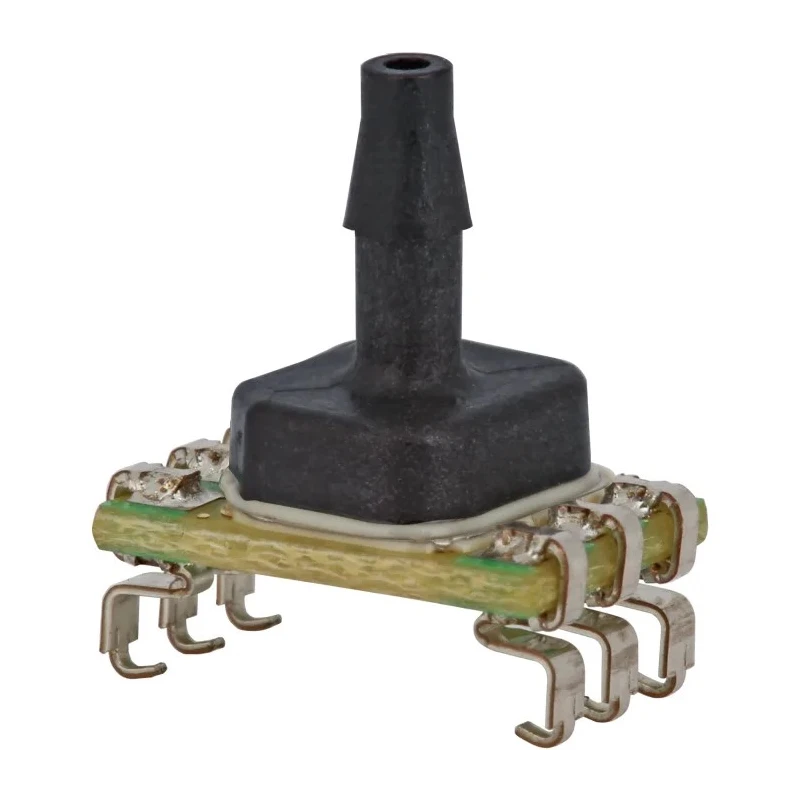

Honeywell Technologies Piezoresistive Gauge Pressure Sensor Surface Mount SMT 6 Pin ABP2MANT001BA2A3XX

Honeywell Technologies ABP2MANT001BA2A3XX is an advanced piezoresistive gauge pressure sensor developed for surface mount SMT applications requiring high accuracy and reliability. The device features a 6-pin package with compact dimensions of 10.59 mm height, 8.2 mm length, and 7.2 mm width, making it suitable for space-constrained electronic designs.

This sensor operates at supply voltages between 1.8V and 3.6V, supporting maximum operating pressures of 100 kPa with a capability to withstand overload pressures up to 16 bar. Its precision is assured by an accuracy of ±0.25%, complemented by stable performance over a wide temperature range from -40°C to 110°C.

The ABP2MANT001BA2A3XX sensor integrates a single axial barbless port type for effective pressure measurement in gas or fluid applications. The device is compliant with RoHS standards, ensuring environmentally responsible manufacturing and use.

Designed primarily for industrial and medical sectors, this sensor is ideal for applications such as ventilators, portable medical devices, blood pressure monitoring systems, HVAC transmitters, material handling controls, pneumatic regulation, process gas monitoring, and valve positioning technologies.

The sensor is part of the ABP2 series by Honeywell Technologies, recognized for robust and accurate pressure sensing in challenging operating environments. With six pins and surface mounting compatibility, it supports efficient assembly in modern electronic products.

The sensor provides a maximum operating pressure of 100 kPa with maximum overload pressure up to 16 bar. It supports supply voltages from 1.8V minimum up to 3.6V maximum. The sensor accuracy is ±0.25%, ensuring precise pressure measurement.

Operating temperature range extends from -40°C to a maximum of 110°C for versatile industrial conditions. The compact sensor dimensions are 10.59 mm height, 8.2 mm length, and 7.2 mm width for space-efficient PCB designs.

Equipped with a single axial barbless port type for effective fluid pressure sensing. It is RoHS compliant and produced under the ABP2 series optimized for various industrial and medical applications. Applications include ventilators, blood pressure monitoring, HVAC transmitters, pneumatic control, and material handling systems.

Manufactured in China with a pin count of six and designed for surface mount assembly. Explore the Electronics & Electricals category on EnvMart for premium Honeywell Technologies pressure sensors and similar industrial-grade sensing solutions.
