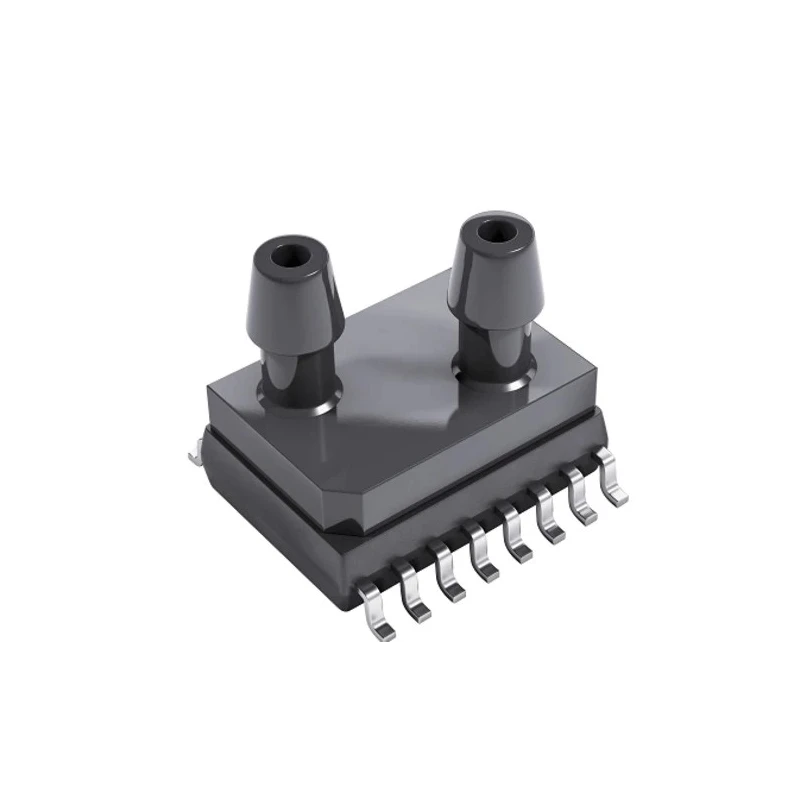

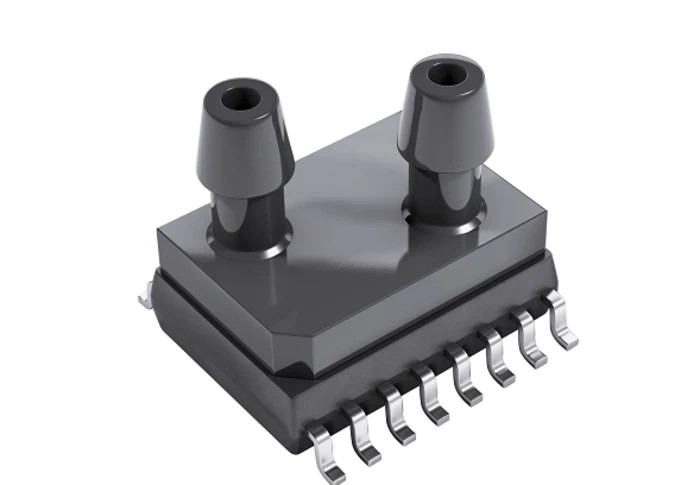

TE Connectivity Differential Pressure Sensor Surface Mount SOIC 16-Pin 3-5V 250 Pa Operating Pressure SM9336-BCE-T-250-000
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Maximum Operating Pressure | 250 pA |
| Height | 9.32mm |
| Length | 10.26mm |
| Model | SM9336-BCE-T-250-000 |
| Sensor Type | Differential Pressure Sensor |
| Mount Type | Surface |
| Series | SM9336-BCE-T-250-000 |
| Maximum Operating Temperature | 85°C |
| Port Type | Dual Vertical |
| Package Type | SOIC |
| Minimum Operating Temperature | -20°C |
| Pin Count | 16 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3V |
| Minimum Operating Pressure | -250Pa |
| Maximum Overload Pressure | 7kPa |
Key Features
- Features ultra-low pressure sensing with a maximum operating pressure of 250 Pascal.
- Equipped with dual vertical ports facilitating differential pressure measurement.
- Offers a 16-bit I2C digital output interface for precise data communication.
- Incorporates temperature compensation covering a range from -20°C to 85°C.
- Packaged in JEDEC standard SOIC-16 format suitable for direct PCB mounting.
- Maximum overload pressure rating of 7 kPa provides durability in demanding applications.
- Minimum and maximum supply voltages are 3 V and 5 V respectively ensuring compatibility with standard power supplies.
- Manufactured in the United States guaranteeing quality and reliability.
Product Description
TE Connectivity SM9336-BCE-T-250-000 is a high-performance differential pressure sensor featuring cutting-edge MEMS technology integrated with CMOS mixed signal processing. It comes in a JEDEC standard surface mount SOIC-16 package with dual vertical ports enabling accurate differential pressure measurement.
Operating voltage ranges between 3 V and 5 V with a maximum operating pressure of 250 Pa and minimum operating pressure of -250 Pa. The sensor offers a 16-bit I2C digital output that is pressure calibrated and temperature compensated over a temperature range of -20°C to 85°C, ensuring consistent sensor output under varying environmental conditions.
This device is designed for direct mounting on standard PCBs, eliminating complex external circuitry for compensation or correction algorithms. It is robust with a maximum overload pressure capacity of 7 kPa and features a compact footprint of 10.26 mm length and 9.32 mm height.
Ideal for industrial, laboratory, HVAC, and instrumentation applications requiring ultra-low differential pressure measurement with high accuracy and stability. TE Connectivity’s SM9336 series sensors deliver high quality and reliability with proven MEMS technology manufactured in the United States.
Ultra-low pressure measurement with ±250 Pa differential range. Digital output via 16-bit I2C interface for easy integration. Surface mount SOIC-16 package for compact PCB mounting. Wide operating temperature from -20°C to 85°C with temperature compensation.
Overload pressure tolerance up to 7 kPa for durability. Dual vertical ports suitable for differential pressure sensing. Compact size measuring 10.26 mm by 9.32 mm. Robust operation at supply voltages from 3 V to 5 V.
Explore EnvMart’s extensive selection of premium pressure sensors and sensor ICs ideal for electronics, industrial measurement, and control systems to enhance your projects and production capabilities.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 250 Pa.
This model operates with a supply voltage range from 3 V to 5 V.
The sensor operates within a temperature range of -20°C to 85°C.
It offers a 16-bit I2C digital output interface for precise data communication.
The sensor measures 10.26 mm in length and 9.32 mm in height.
It is designed for surface mounting in a JEDEC standard SOIC-16 package.
The minimum operating pressure is -250 Pa.
The maximum overload pressure rating is 7 kPa.
It features dual vertical ports suitable for differential pressure measurement.
It is ideal for industrial, laboratory, HVAC, and instrumentation applications requiring ultra-low differential pressure measurement.
This sensor is manufactured in the United States.
It utilizes MEMS technology integrated with CMOS mixed signal processing for high performance.
