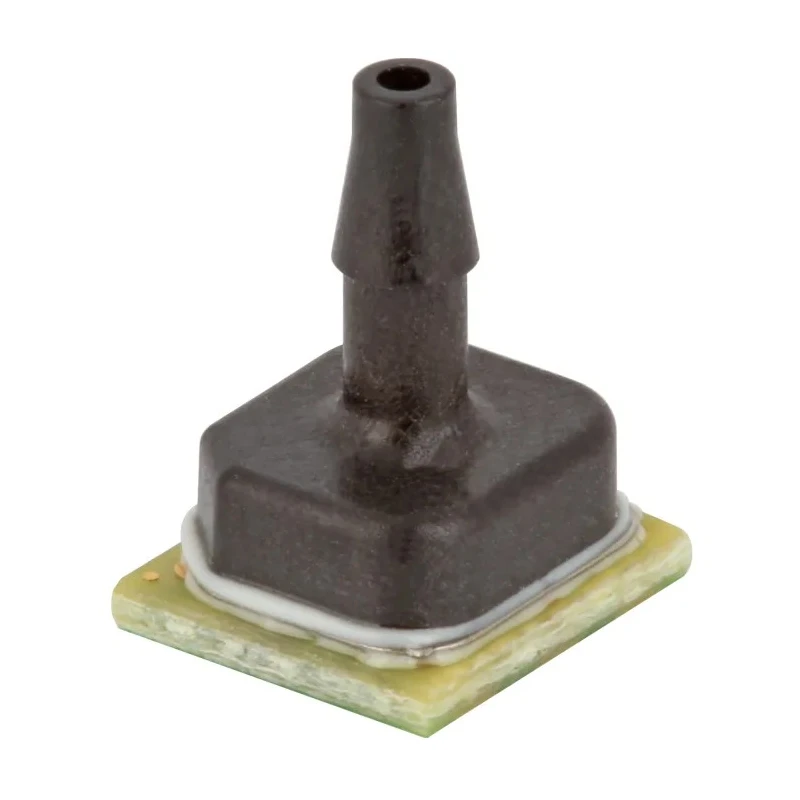

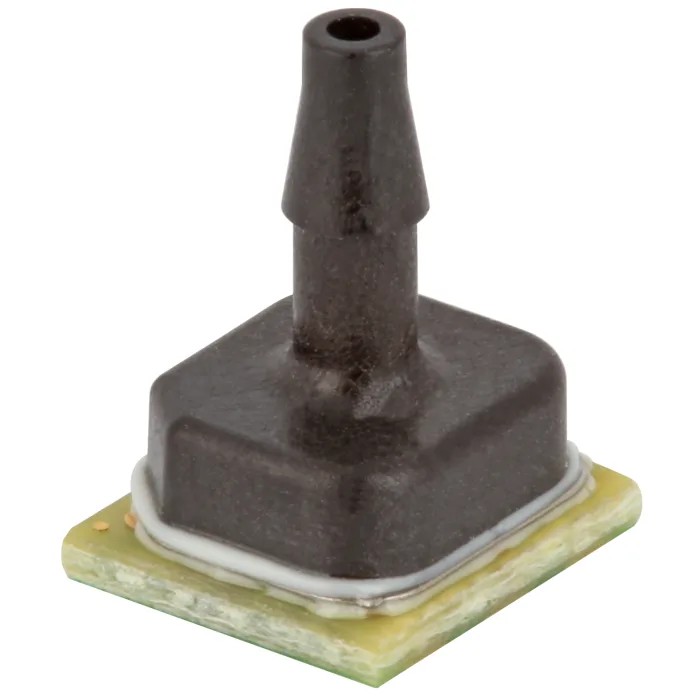

Honeywell Technologies Gauge Pressure Sensor Surface Mount Leadless SMT 6 Pin ABP2LANT001PG2A3XX
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 100 kPa |
| Height | 10.59mm |
| Length | 8.2mm |
| Model | ABP2LANT001PG2A3XX |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | ABP2 |
| Maximum Operating Temperature | 110°C |
| Port Type | Single Axial Barbless |
| Package Type | Leadless SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Operating Pressure | 600Pa |
| Maximum Overload Pressure | 200kPa |
Key Features
- This sensor provides high accuracy of ±0.25% full scale span.
- Operates reliably over a wide temperature range from -40°C to 110°C.
- It supports a supply voltage range from 1.8V minimum to 3.6V maximum.
- The sensor is capable of measuring pressure up to a maximum operating pressure of 100 kPa and overload pressure of 200 kPa.
- Compact dimensions of 10.59mm height, 8.2mm length, and 7.2mm width facilitate easy PCB integration.
- It uses piezoresistive technology with a single axial barbless port type.
- Designed to meet RoHS standards ensuring environmentally safe manufacture.
Product Description
Honeywell Technologies ABP2LANT001PG2A3XX is a high-performance gauge pressure sensor featuring a surface mount leadless SMT package with 6 pins. It employs piezoresistive silicon technology to deliver a digital output for precision pressure measurement over a defined full scale pressure span and temperature range. The device supports pressure measurement up to 100 kPa with a maximum overload pressure capability of 200 kPa, ensuring resilience in demanding industrial and electronic applications.
The sensor operates efficiently over a wide temperature range from -40°C to 110°C, supporting minimum and maximum supply voltages of 1.8V and 3.6V respectively. It features a single axial barbless port for pressure intake, implemented in a compact form factor measuring 10.59mm in height, 8.2mm in length, and 7.2mm in width. Designed to meet RoHS environmental compliance and manufactured in China, this component assures quality and sustainability.
Ideal for use in applications including industrial automation, HVAC systems, laboratory instrumentation, automotive testing (non-automotive standard), and semiconductor equipment, the ABP2LANT001PG2A3XX sensor delivers reliable and stable pressure sensing with an accuracy of ±0.25% full scale span. Its long-term stability can reach as low as ±0.2% full scale span, enhancing measurement consistency.
This pressure sensor module integrates easily into printed circuit boards due to its surface mount leadless SMT package and 6 pin configuration. It supports pressure ranges spanning from 600 Pa minimum operating pressure to 100 kPa maximum operating pressure, allowing measured media compatibility including various liquids.
This Honeywell ABP2 series model is engineered for reliable pressure sensing with digital output capabilities. Product complies with ISO 9001 manufacturing standards, assuring consistent quality. Compact design facilitates incorporation into electronic sensing and control systems.
Suitable for industrial, laboratory, semiconductor, and HVAC applications requiring accurate pressure monitoring. RoHS compliant for environmentally responsible use. Explore Honeywell products and Pressure Sensor ICs category at EnvMart for advanced sensing solutions tailored to diverse industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 100 kPa, with a maximum overload pressure capability of 200 kPa.
This model provides an accuracy of ±0.25% full scale span.
It operates reliably over a wide temperature range from -40°C to 110°C.
The sensor supports a supply voltage range from 1.8V minimum to 3.6V maximum.
The sensor has compact dimensions of 10.59mm in height, 8.2mm in length, and 7.2mm in width.
It features a single axial barbless port for pressure intake.
This model has a 6 pin configuration.
Yes, it is designed to meet RoHS standards, ensuring environmentally safe manufacture.
It is suitable for industrial automation, HVAC systems, laboratory instrumentation, automotive testing, and semiconductor equipment.
It employs piezoresistive silicon technology to deliver a digital output for precision pressure measurement.
The minimum operating pressure is 600 Pa.
The sensor is manufactured in China.
