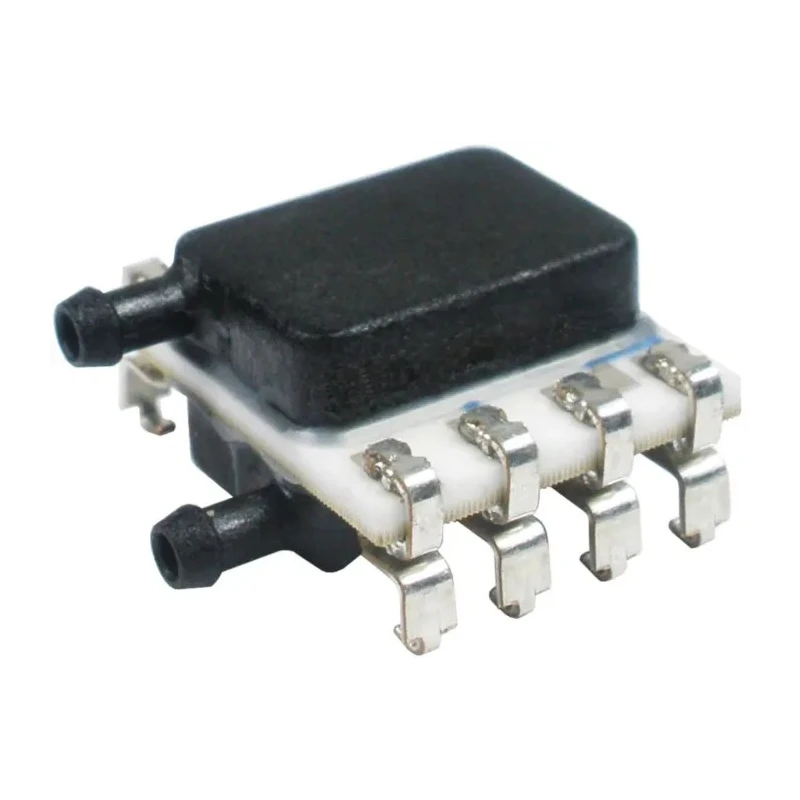

Honeywell Technologies Pressure Sensor Board SMT, Gauge Pressure, 0-6 mbar, ±0.25% Accuracy, 3.3V to 5V HSCMRRD006MGAA5

Honeywell Technologies HSCMRRD006MGAA5 Pressure Sensor Board SMT is a highly accurate, compact gauge pressure sensor designed for precise measurement of small positive pressures in non-corrosive, non-ionic gases. Engineered for industrial and automotive applications, it features a low power design compatible with 3.3V to 5V supply voltage systems.

The device incorporates dual radial barbed ports for straightforward tubing connections and an 8-pin SMT package ideal for dense printed circuit board assembly. Its calibrated, temperature-compensated output ensures stable readings within a temperature range of 0°C to 50°C, while maintaining accuracy across -20°C to +85°C operating conditions.

This sensor offers a ratiometric analogue output and digital communication options using SPI or I2C protocols, supporting resolutions greater than 12 bits. Its robust design includes a maximum operating pressure of 6 mbar and a maximum overload pressure tolerance up to 675 mbar, protecting against pressure spikes.

Built with on-board ASIC calibration and temperature compensation, the sensor guarantees long-term stability with minimal drift over sustained operation. It is particularly well-suited for applications such as ventilator and respiratory monitoring, HVAC filter clog detection, variable air volume (VAV) control, gas flow instrumentation, and indoor air quality monitoring.

The sensor is compliant with ISO 9001 quality standards applicable to automotive sensing and industrial environments. Compact physical dimensions (13.75mm height, 13.3mm width, and 10mm length) contribute to efficient PCB layout without compromising performance.

The sensor provides ±0.25% accuracy reducing software correction requirements. Flexible supply voltage range from 3.3V to 5V supports various system configurations. Dual radial barbed ports simplify connection to pneumatic tubing.

Wide operating temperature range of -20°C to +85°C ensures reliability in harsh environments. Low power consumption suits battery-powered and portable devices. Certified to ISO 9001 automotive and industrial standards. Digital outputs include SPI and I2C interfaces with at least 12-bit resolution.

Compact SMT package with 8 pins and minimal footprint.

This advanced gauge pressure sensor is an ideal choice for demanding industrial, HVAC, automotive, and environmental monitoring applications requiring precise low-pressure measurement with excellent stability and reliability. EnvMart customers looking for high-performance Pressure Sensor ICs will find this Honeywell model a dependable solution.
