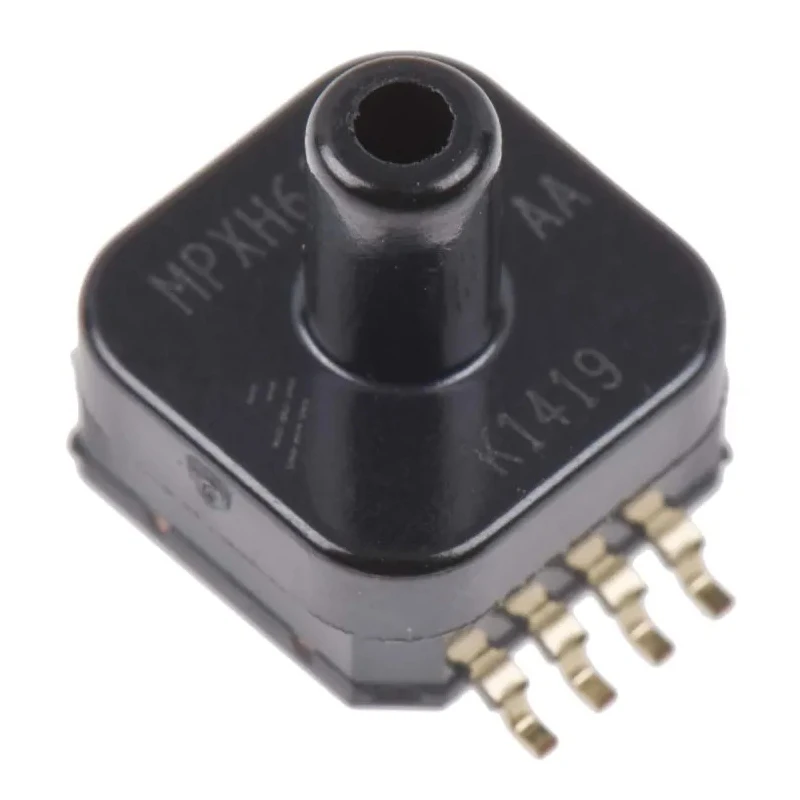

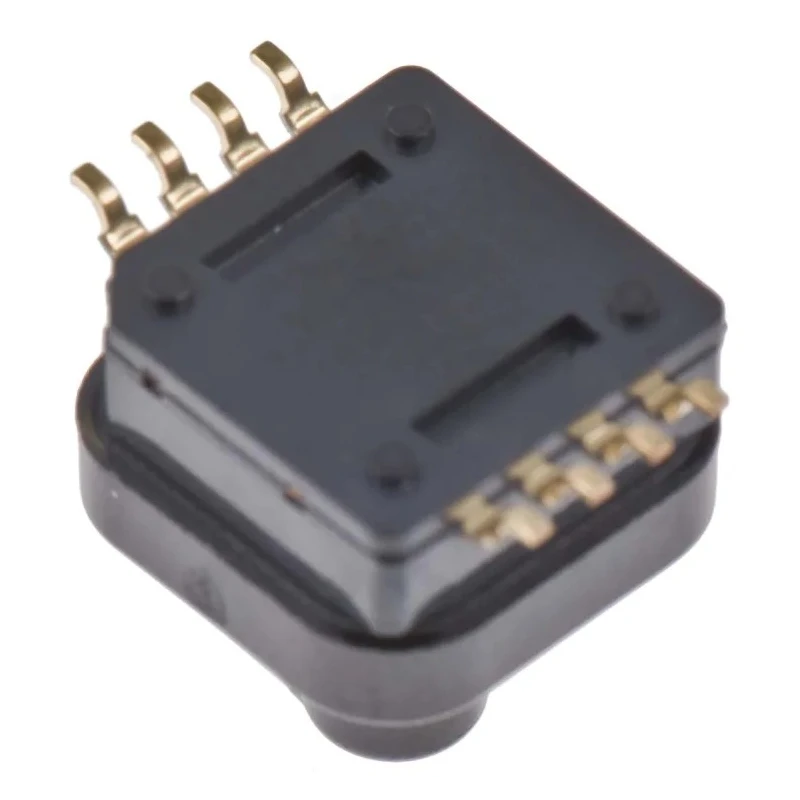

NXP Absolute Pressure Sensor 8-Pin SOP Package 4.75-5.36V 1600kPa Overload MPXH6400AC6U

NXP MPXH6400AC6U is an advanced absolute pressure sensor developed for automotive and industrial applications, particularly suitable for alternative fuels like LPG and CNG. This sensor efficiently measures gas pressure ranging from 20 kPa minimum operating pressure to a maximum operating pressure of 400 kPa, with the capability to withstand overload pressures of up to 1600 kPa, providing reliable and safe operation.

Featuring an 8-pin SOP surface mount package, the sensor incorporates a single axial barbless port and is designed to operate within a supply voltage range of 4.75V to 5.36V. It outputs an analog signal with typical sensitivity of 12.1 mV/kPa and a maximum output voltage of 4.8 V, suitable for integration in precise pressure monitoring systems in automotive and industrial equipment.

Its compact form factor with dimensions of 1.75 mm height and 4.2 mm length makes it suitable for space-constrained PCB layouts. Moreover, the sensor delivers high accuracy of ±1.5% across a wide temperature range from -40°C to 125°C, ensuring dependable performance in harsh environmental conditions.

The MPXH6400AC6U complies with RoHS standards, emphasizing its compliance with environmental regulations. However, it does not conform to automotive-specific standards but is engineered for alternative fuel applications.

This pressure sensor IC is ideal for use in industrial measuring systems, electronic control units in vehicles running LPG and CNG, and other applications requiring accurate absolute pressure measurements with compact packaging and stable output signals.

Designed for LPG and CNG gas pressure sensing applications. High accuracy ±1.5% ensures precise and reliable readings. Supports supply voltage from 4.75V to 5.36V for operational flexibility. Small SOP 8-pin package facilitates easy PCB mounting.

Wide operating temperature range from -40°C to 125°C handles extreme conditions. Protected against overload pressures up to 1600 kPa. RoHS compliant for environmental safety. Compact dimensions enhance integration into electronic systems.

Typical sensitivity of 12.1 mV/kPa provides high resolution. Output voltage up to 4.8 V matches standard signal requirements.
