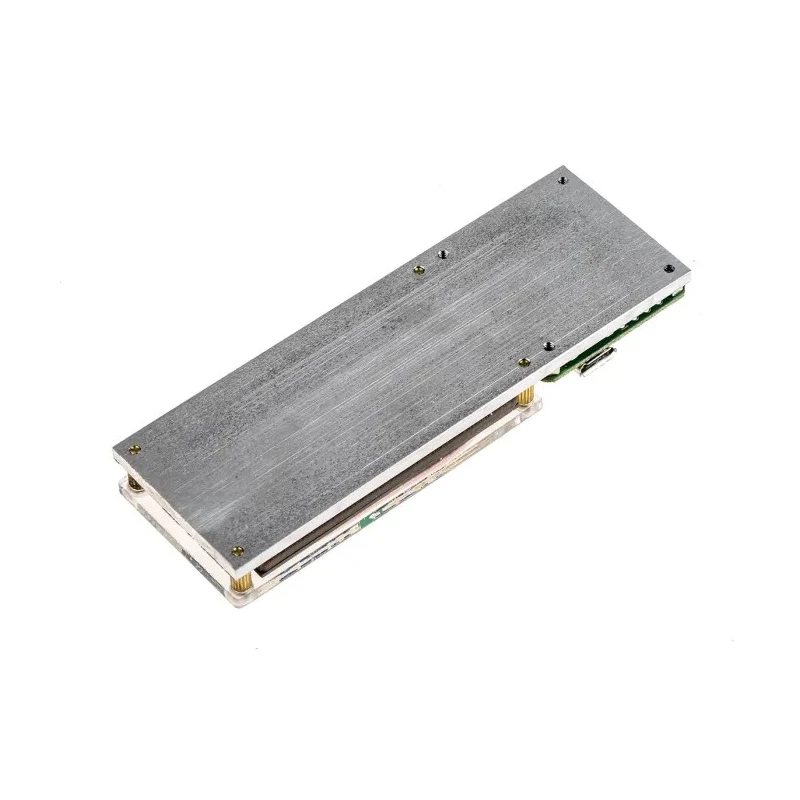

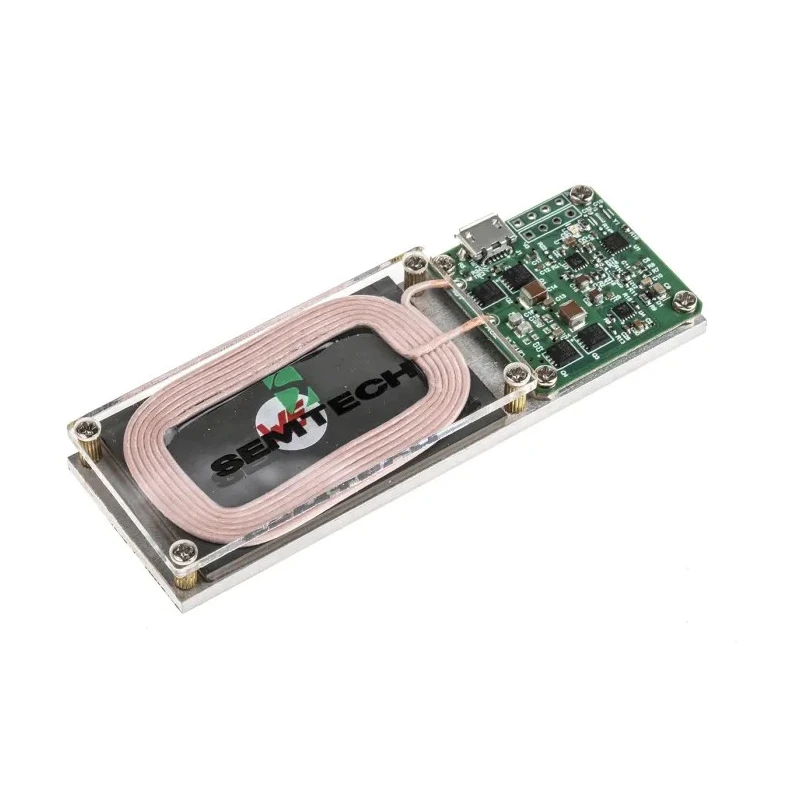

Semtech Wireless Power Evaluation Kit Multi Device Transmitter 5V for TS80002 Transmitter TSWITX-5V-2RX-EVM

Semtech TSWITX-5V-2RX-EVM Wireless Power Evaluation Kit Multi Device Transmitter operates at 5V input power supply and is specifically designed for testing and experimentation of wireless charging transmitter systems based on the TS80002 Transmitter. This evaluation kit utilizes the Semtech TS80002 wireless power transmitter controller combined with the TS61005 Dual N-channel MOSFET driver, enabling a complete system when paired with compatible receiver modules.

The evaluation kit supports multi-device charging by simultaneously powering two TSWIRX-5V2-EVM receiver devices, each providing an output current of 100mA. It features an automatic timer with shut-off to efficiently manage power and includes Foreign Object Detection (FOD) to ensure safe operation. The transmitter operates at a high switching frequency of 1MHz, minimizing thermal dissipation when in proximity to metal objects. The wireless charging design allows freedom of positioning receivers on the X, Y, and Z axes without affecting performance.

This wireless power evaluation kit is ideally suited for low power applications like electric toothbrushes, power and charging LED tea lights, wearables, smart jewellery, trackers, and electronic clothing. It is a versatile tool for developers and engineers working in power management development, wireless power transmission, and low power device prototyping.

Supports multi-device wireless charging with simultaneous pairing of two receivers. Includes automatic timer with shut-off feature for efficient power management. Foreign Object Detection (FOD) enhances safety during operation.

High switching frequency at 1MHz reduces thermal dissipation into metal objects. Input power supply of 5V suitable for low power applications. Freedom of positioning along X, Y, and Z axes for receiver placement flexibility.

Designed for low power charging applications such as electric toothbrushes and wearables. Ideal for LED fixtures, smart jewellery, trackers, and clothing applications.

This Evaluation Kit plays an important role in industrial, laboratory, and consumer electronic development where wireless power transmission is being explored. It is suitable for use in research and development environments, prototyping, and educational purposes within electronics and power management engineering fields.
