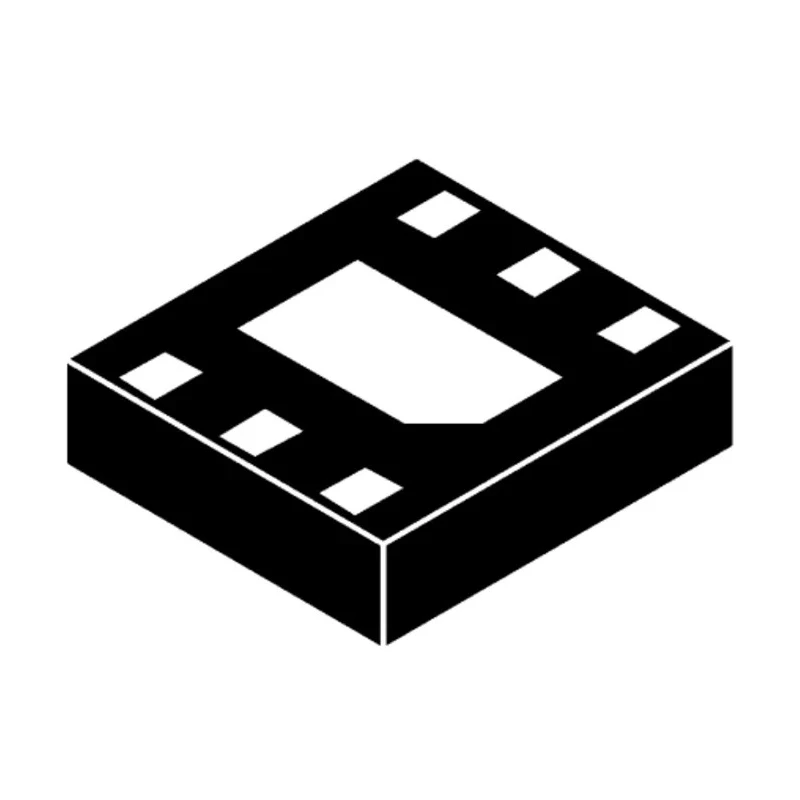

Semtech 9-Element Uni-Directional TVS Diode, 150 W, 6-Pin SLP1616P6 RCLAMP0504PATCT
Specifications
| Country of Origin | China |
|---|---|
| Brand | Semtech |
| Height | 0.6mm |
| Length | 1.7mm |
| Model | RCLAMP0504PATCT |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | RCLAMP0504P |
| Maximum Operating Temperature | 125°C |
| Package Type | SLP1616P6 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 6 |
| Number of Elements per Chip | 9 |
| Clamping Voltage VC | 25V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 150W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 6A |
| Maximum Reverse Leakage Current | 3μA |
Key Features
- The diode offers uni-directional protection suitable for sensitive electronics.
- It has a minimum breakdown voltage of 6 V and a maximum reverse stand-off voltage of 5 V.
- The package dimensions are 1.7 mm by 1.7 mm with a height of 0.6 mm.
- Operating temperature ranges from -55°C to 125°C ensuring reliable performance in harsh conditions.
- The diode supports a peak pulse current of 6 A for transient suppression.
- It incorporates 9 elements per chip for enhanced protection.
- Low maximum reverse leakage current of 3 μA minimizes power loss.
- Ideal for use in mobile phones, USB interfaces, SD card ports, and Gigabit Ethernet applications.
Product Description
Semtech RCLAMP0504PATCT is a high-performance 9-element uni-directional transient voltage suppression (TVS) diode designed for protecting sensitive semiconductor circuits from voltage spikes and electrostatic discharge (ESD). It delivers peak pulse power dissipation of 150 W within a compact 6-pin SLP1616P6 surface mount package.
Featuring a minimum breakdown voltage of 6 V and a maximum reverse stand-off voltage of 5 V, this diode efficiently clamps transient voltages up to 25 V. Its peak pulse current capability of 6 A ensures resilient suppression of surges and spikes occurring in harsh electrical environments.
The diode's small physical dimensions of 1.7 mm length, 1.7 mm width, and 0.6 mm height support high-density PCB layouts in portable electronics and communications devices. The operational temperature range from -55°C to +125°C ensures durability across diverse industrial, automotive, and consumer applications.
This RailClamp® series TVS diode is especially suited for applications including mobile phones, LCD displays, USB 2.0/OTG ports, Multimedia Card (MMC) interfaces, SD card interfaces, Mobile Display Digital Interface (MDDI) ports, SIM card ports, keypads, and Gigabit Ethernet interfaces, providing reliable overvoltage protection for data integrity and device longevity.
9 elements per chip increase overall suppression capability and reliability. Surface mount package SLP1616P6 enables compact and efficient mounting. Low leakage current (3 μA max) helps conserve power in standby modes. ESD protection compatible with industry standards enhances device safety.
Robust operational temperature range supports automotive and industrial environments.
Manufactured in China, this diode is a new product in the Semtech RailClamp® series designed for demanding transient voltage suppression applications across electronics manufacturing sectors.
Explore more products in the TVS Diode category on EnvMart for advanced semiconductor protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this diode is 150 W.
The maximum reverse stand-off voltage for this model is 5 V.
The clamping voltage (VC) for this diode is 25 V.
This model operates within a temperature range of -55°C to 125°C.
This diode incorporates 9 elements per chip for enhanced protection.
The physical dimensions of this diode are 1.7 mm in length, 1.7 mm in width, and 0.6 mm in height.
The maximum peak pulse current capability of this diode is 6 A.
This diode uses a surface mount package type SLP1616P6.
The maximum reverse leakage current for this model is 3 μA.
This model is suitable for applications including mobile phones, USB interfaces, and Gigabit Ethernet.
The minimum breakdown voltage of this diode is 6 V.
The diode configuration for this model is single and uni-directional.
