STMicroelectronics Evaluation Kit Motor Control for STH310N10F7, STH315N10F7, 100 V STripFET™ F7 MOSFETs STEVAL-CTM009V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-CTM009V1 |
| For Use With | Industrial Motor Control |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | STH310N10F7, STH315N10F7 |
| Kit Name | Evaluation Kit |
Key Features
- The kit demonstrates ST Power MOSFETs capabilities based on STripFET™ F7 technology.
- Supports low voltage (up to 48 V) and high current applications such as forklifts and power tools.
- Comprises four boards to build a three-phase motor inverter power stage.
- Power board has insulated metal substrate with thermal protection and gate resistors.
- Driver stage uses L6491 high current gate drivers with integrated comparator protections.
- Suitable for industrial motor control development and evaluation applications.
Product Description
STMicroelectronics STEVAL-CTM009V1 evaluation kit is a comprehensive motor control development kit designed for industrial motor control applications leveraging the advanced STripFET™ F7 technology power MOSFETs: STH310N10F7 and STH315N10F7. These 100 V MOSFETs are optimized for low voltage operations up to 48 V and high current scenarios such as forklifts, golf carts, and power tools.

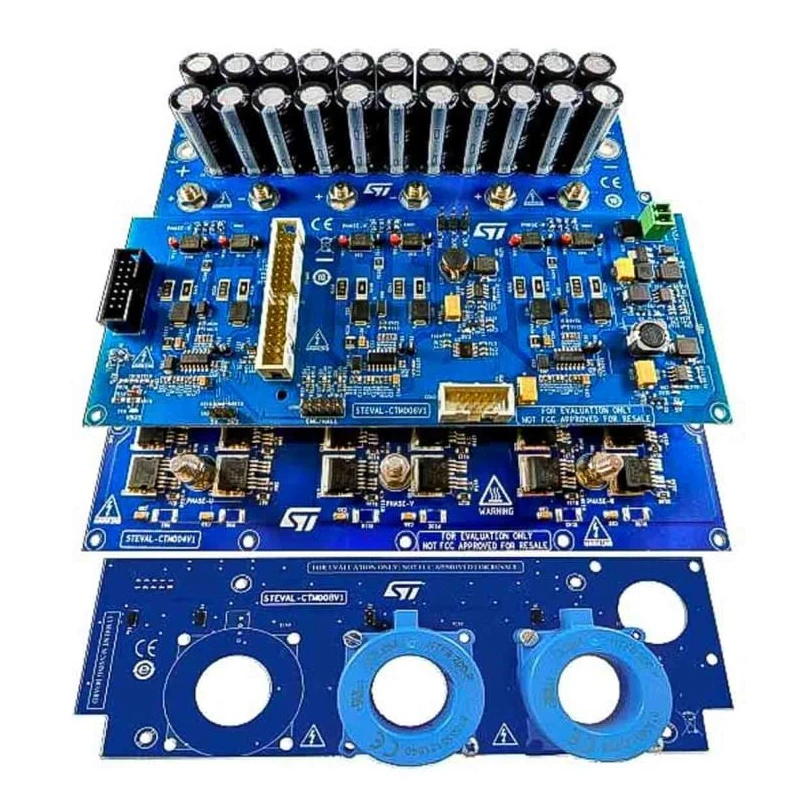

The kit integrates four distinct boards: STEVAL-CTM004V1, STEVAL-CTM005V1, STEVAL-CTM006V1, and STEVAL-CTM008V1, which assemble together to configure an inverter power stage capable of driving three-phase motors efficiently and reliably.
The STEVAL-CTM004V1 power board is constructed with an insulated metal substrate (IMS) enhancing thermal management and includes NTC thermistors for thermal protection. Additionally, each MOSFET benefits from decoupling gate resistors ensuring stable operations. All power MOSFETs are mounted in ST's H²PAK-6 package, providing robust electrical and mechanical performance.
The driver stage is based on the STEVAL-CTM006V1 board, which incorporates L6491 high current gate drivers capable of driving the power MOSFETs with integrated comparator circuits for fault protection, safeguarding the system in challenging environments.
This Evaluation Kit adheres to RoHS standards and is manufactured in Italy, ensuring quality and compliance. It provides a practical, modular platform for engineers and developers to design, test, and optimize power management and motor control circuits in industrial automation, manufacturing, and power tool applications.
The kit features four interconnected boards forming an inverter for three-phase motors. Supports industrial motor control in forklifts, golf carts, and power tools. MOSFETs use STripFET™ F7 technology delivering high efficiency and low conduction losses.
Includes thermal protection with NTC sensors and decoupling gate resistors on the power board. Drive stage uses L6491 gate drivers with integrated protective comparators. Designed for developers and engineers for motor control evaluation in industrial settings.
