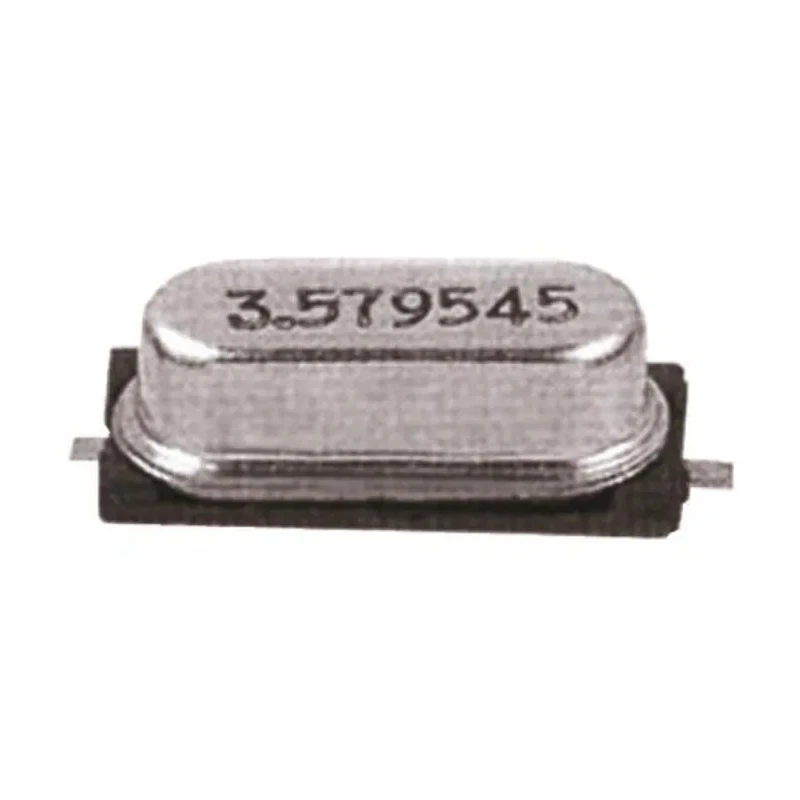

Abracon 3.6864 MHz Crystal ±30 ppm HC-49 2-Pin 4.6 mm x 13.5 mm x 4.8 mm CAA-3.6864-18-3050-X

Free Delivery in India | Lowest Global Shipping Charges

Abracon 3.6864 MHz Crystal ±30 ppm HC-49 2-Pin 4.6 mm x 13.5 mm x 4.8 mm CAA-3.6864-18-3050-X

Name: Abracon 3.6864 MHz Crystal ±30 ppm HC-49 2-Pin 4.6 mm x 13.5 mm x 4.8 mm CAA-3.6864-18-3050-X
Brand: Abracon
SKU: 425251
Price: 0.49 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	4.6mm
Length	13.5mm
Model	CAA-3.6864-18-3050-X
Packaging	Tape & Reel
Width	4.8mm
Mount Type	Surface
Series	CAA
Maximum Operating Temperature	85°C
Package Type	HC-49
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	3.6864MHz
Load Capacitance	18pF
Series Resistance	200Ω
Abracon 3.6864MHz Crystal ±20ppm HC-49-US SMD 2-Pin 11.5 x 4.7 x 4.2mmBrand	Abracon

Key Features

This surface mount crystal operates with a load capacitance of 18 pF.

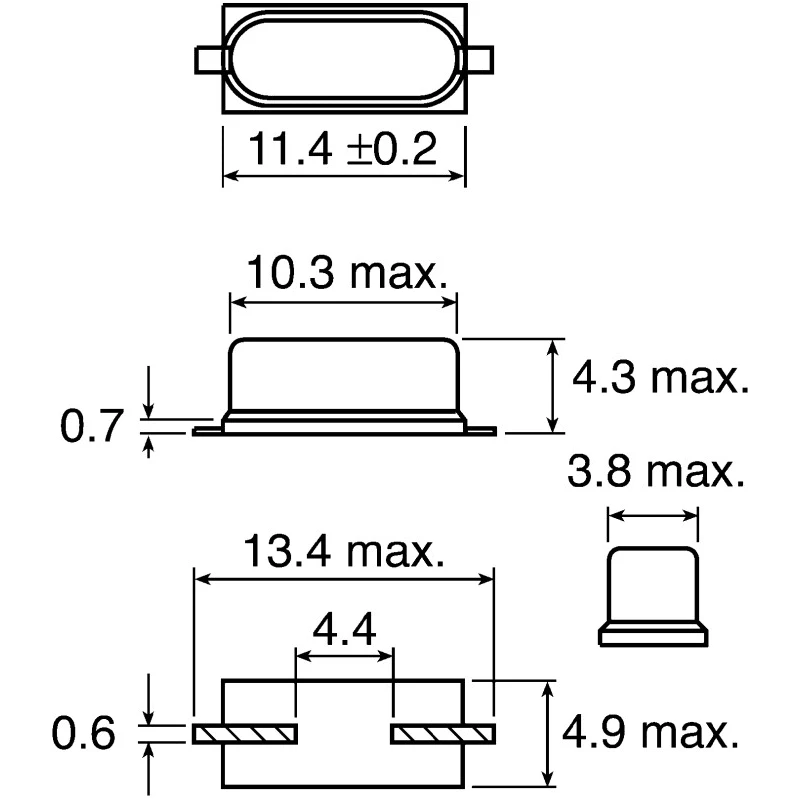

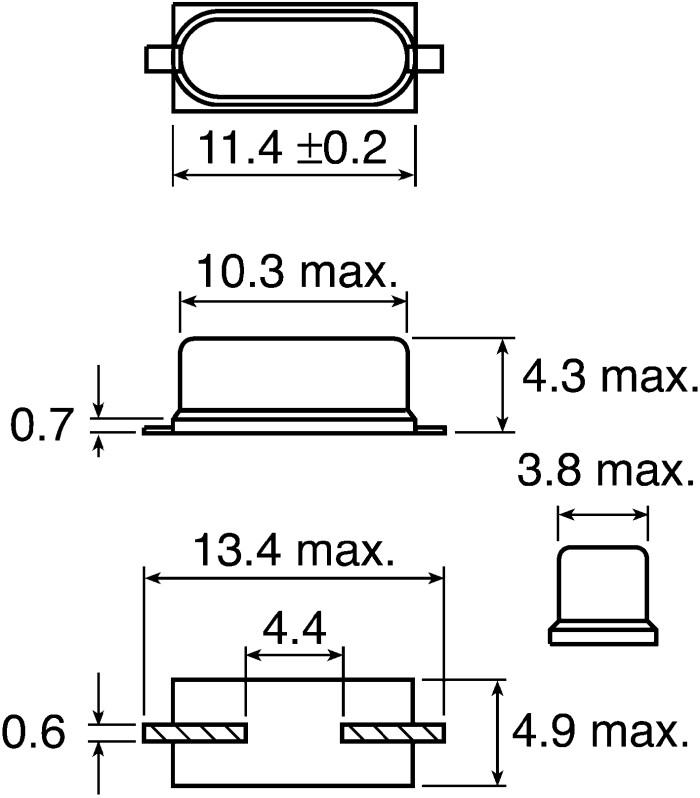

The package dimensions measure 4.6 mm height, 13.5 mm length, and 4.8 mm width.
It features a 2-pin configuration suitable for precise timing applications.
The frequency stability is ±50 ppm ensuring reliable clock performance.
Operates within a temperature range from -40°C to 85°C, providing durability in harsh conditions.
Series resistance of 200 Ω supports stable oscillation behavior.
The product is RoHS compliant, meeting environmental standards.
Manufactured in China under the CAA series with automotive standards not applicable.

Product Description

AKER CAA-3.6864-18-3050-X crystal oscillator is a precision electronic component designed for surface mounting applications. It operates at a standard frequency of 3.6864 MHz with a frequency tolerance of ±30 ppm, packaged in the compact HC-49 metal can style with two pins spaced and sized for easy integration on PCB assemblies.

The device is specifically designed to provide stable and accurate oscillations with a load capacitance of 18 pF and a frequency stability rating of ±50 ppm, suitable for applications demanding consistent timing signals, such as clocks, timers, and communication equipment.

Physical dimensions include a height of 4.6 mm, length of 13.5 mm, and width of 4.8 mm, making it compatible with a wide range of circuit designs requiring moderate size footprints. The series resistance rating is 200 Ω, which helps minimize signal loss and ensures proper oscillator functionality.

The crystal unit is rated for operation over a wide temperature range from -40°C to +85°C, allowing use in industrial and commercial environments with varying thermal conditions. This component complies with RoHS environmental standards, confirming it is free from hazardous substances.

The oscillator does not conform to automotive standards but is manufactured in China under the CAA series by AKER, known for reliable electronic component quality. This Crystal Oscillator is surface mount type allowing efficient PCB design and placement.

Extensive temperature tolerance supports industrial and commercial use cases. The 2-pin arrangement simplifies board layout for timing circuits. Consistent frequency stability optimizes performance in communication and timing applications.

RoHS compliant ensuring environmental safety compliance. Compact HC-49 package suits diverse electronics manufacturing needs.

This product is ideal for use in electronics manufacturing, industrial automation, and communication devices that require precise frequency control. Its robust design supports long-term reliability in demanding environments.
