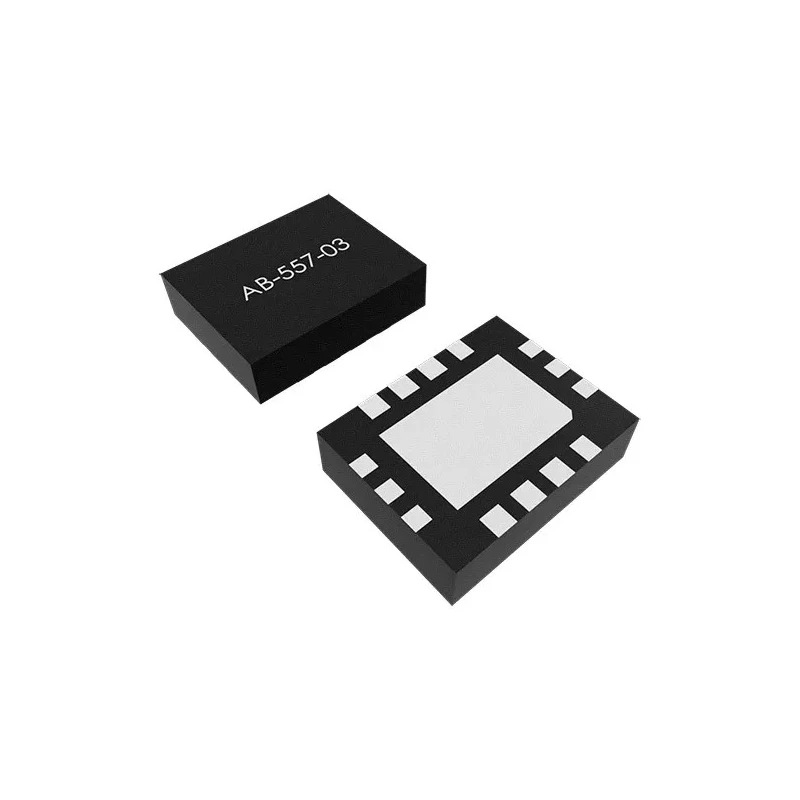

Abracon Frequency Synthesiser 5 Output 14-Pin TSSOP-16 3.6V Surface Mount AB-557-03-HCHC-F-L-C-T

The Abracon AB-557-03-HCHC-F-L-C-T Frequency Synthesiser provides reliable, high-performance clock generation in a compact 14-pin TSSOP-16 surface mount package. Operating at a maximum output frequency of 460MHz and compatible with a supply voltage range between 2.25V and 3.6V, this device delivers exceptional timing precision for demanding industrial, consumer electronics, and networking applications.

Engineered using advanced MEMS technology by Discera, it offers excellent immunity to shock and vibration, supporting continuous operation in harsh environments. The synthesiser supports multiple mixed output formats including HCSL, LVPECL, LVDS, and LVCMOS, providing flexibility for integration with various circuit designs.

Designed to meet PCI Express Gen1, Gen2, and Gen3 specifications, it is ideal for use in solid-state storage area networks, passive optical networks, and Ethernet technologies such as 1G, 10GBASE-T/KR/LR/SR, and FCoE. It is also applicable in scanners, printers, and other medical and industrial devices requiring stable and accurate clock signals.

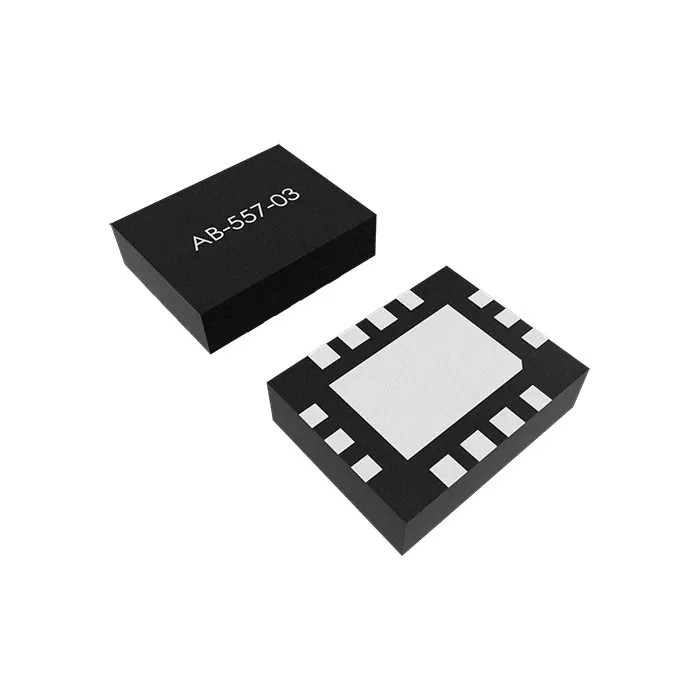

The package measures 3.2mm in length, 2.5mm in width, and 0.85mm in height, making it suitable for space-constrained applications. It operates reliably over a temperature range from -40°C to 85°C and complies with RoHS and RoHS II environmental regulations.

Maximum output frequency of 460MHz ensures high-speed performance. Five outputs with multiple mixed output formats for versatile timing solutions. Wide operating voltage range from 2.25V to 3.6V supports various power environments.

Compact TSSOP-16 surface mount package supports high-density PCB layouts. Robust temperature tolerance suitable for industrial and commercial applications. Advanced MEMS technology guarantees stability under shock and vibration stresses.

Meets PCI Express Gen1, Gen2, and Gen3 specifications for networking compatibility. Low power consumption contributes to energy-efficient system designs.

This frequency synthesiser is a reliable solution for precision timing needs in industrial machinery, telecommunications networking equipment, medical devices, and consumer electronics. Explore the comprehensive range of Abracon timing and frequency components on EnvMart for optimized performance and compatibility.
