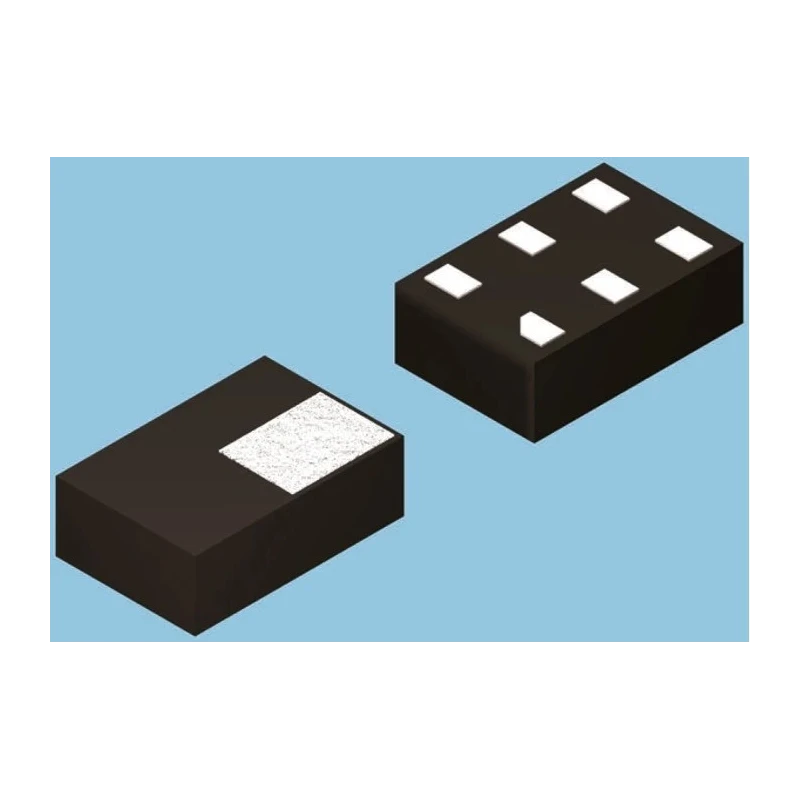

Nexperia 5-Element Uni-Directional ESD Protection Diode 25 W, 6-Pin SOT-886 PESD3V3L5UF,115

Nexperia PESD3V3L5UF,115 5-Element Uni-Directional ESD Protection Diode offers robust transient voltage suppression and electrostatic discharge protection for sensitive electronic components in industrial and commercial applications.

This diode array features a common anode and uni-directional configuration designed for compact surface mount assemblies using the 6-pin SOT-886 package, providing high-performance ESD protection with a peak pulse power dissipation of 25 W.

Operating voltage parameters include a minimum breakdown voltage of 5.3 V, maximum reverse stand-off voltage of 3.3 V, and clamping voltage of 10 V, ensuring reliable protection against electrical surges and spikes.

The diode supports a maximum peak pulse current of 2.5 A and operates efficiently over a broad temperature range from -65°C to 150°C, suitable for various industrial, automotive, and consumer electronic environments.

Its compact physical dimensions - 1.5 mm length, 1.05 mm width, and 0.5 mm height - allow for space-efficient PCB layouts without compromise on protective performance.

The device's maximum reverse leakage current is 300 μA, maintaining low power loss during operation. Designed without automotive certification, it suits broad industrial applications requiring effective ESD and transient voltage protection.

Common anode diode configuration ensures effective ESD protection. Uni-directional design supports efficient transient voltage suppression. Minimum breakdown voltage of 5.3 V provides reliable performance. Maximum reverse stand-off voltage of 3.3 V prevents unwanted conduction.

Clamping voltage rated at 10 V safeguards sensitive components. 6-pin surface mount SOT-886 package allows compact PCB integration. Peak pulse current capability of 2.5 A supports high surge events. Operating temperature range of -65°C to 150°C suits harsh environments.

Compact dimensions with length 1.5 mm, width 1.05 mm and height 0.5 mm. Maximum reverse leakage current limited to 300 μA for efficiency.

This ESD Protection Diode is well suited for industrial electronics, consumer devices, and equipment subject to electrostatic stress or transient voltage events. It ensures device longevity and reliability by protecting sensitive circuits efficiently.
