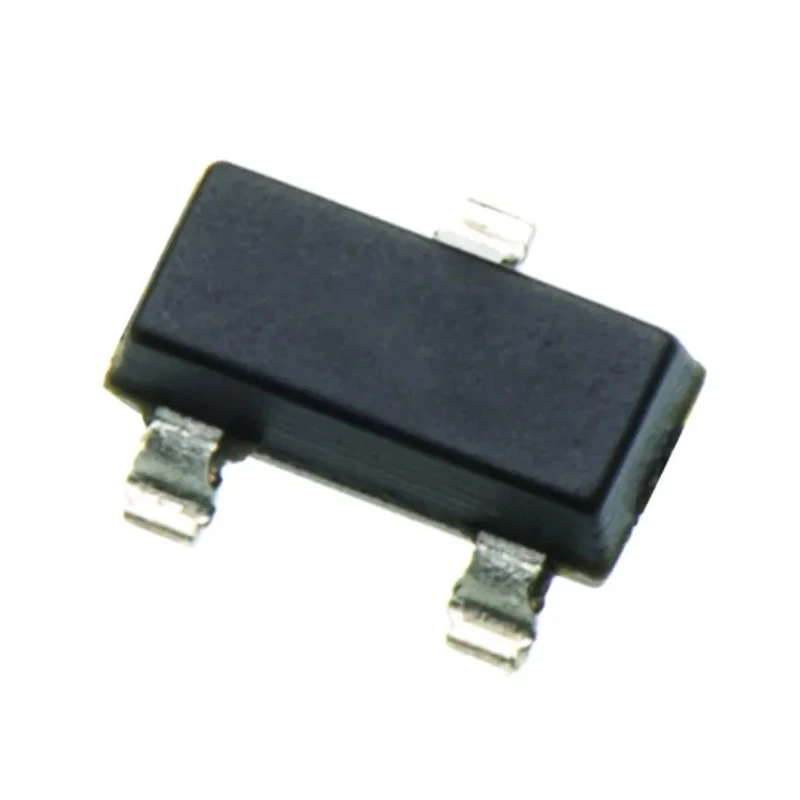

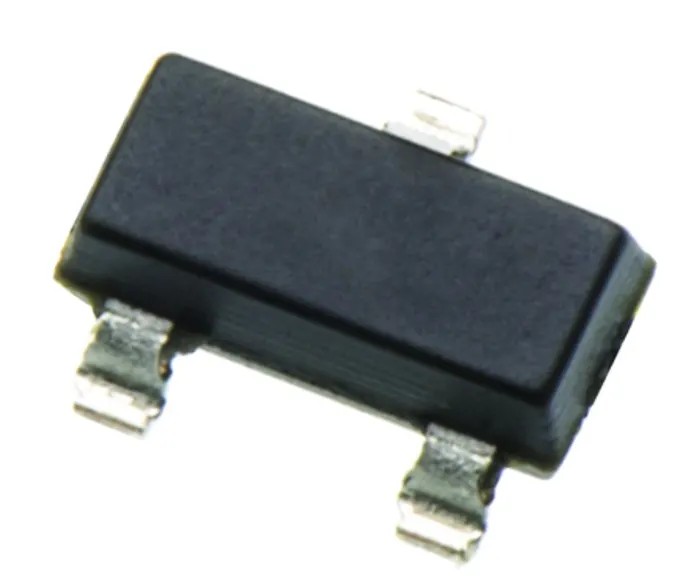

Nexperia 2-Element Bi-Directional ESD Protection Diode 200 W, 3-Pin SOT-23 PESD15VL2BT,215

Nexperia PESD15VL2BT,215 2-Element Bi-Directional ESD Protection Diode is designed for industrial and electronic applications requiring robust ElectroStatic Discharge (ESD) protection. This diode supports up to 200 W peak pulse power dissipation, offering reliable defense against damaging transient voltages.

Encased in a small SOT-23 surface mount package with 3 pins, this device is optimized for space-saving PCB layouts. The diode configuration is in series with a bi-directional direction type, enabling effective protection on two signal lines simultaneously.

This product operates efficiently across temperatures ranging from -65°C to a maximum of 150°C. It features a minimum breakdown voltage of 17.1 V and a clamping voltage of 44 V to clamp voltage spikes and prevent component damage.

The maximum peak pulse current rating is 5 A, and the maximum reverse stand-off voltage is 15 V. The device shows a very low leakage current of 50 nA and complies with the automotive AEC-Q101 standard to meet high quality requirements for automotive systems.

Low capacitance bidirectional ESD protection for critical signal lines. Compact 3-pin SOT-23 surface mount package. Wide operating temperature range: -65°C to 150°C. High peak pulse power dissipation of 200 W. Automotive standard AEC-Q101 compliant.

Max peak pulse current of 5 A and max reverse voltage of 15 V. Manufactured in Malaysia ensuring premium quality. Ideal for protecting sensitive electronics in industrial, automotive, and consumer applications.

This ESD Protection Diode is well-suited for use in semiconductor assemblies, automotive electronics, industrial controls, and consumer electronic devices to enhance product reliability and lifespan by safeguarding against ESD events.
