JST Automotive Connector Female 9 Way Black Surface Crimp Termination HCHFB-09-KE

Free Delivery in India | Lowest Global Shipping Charges

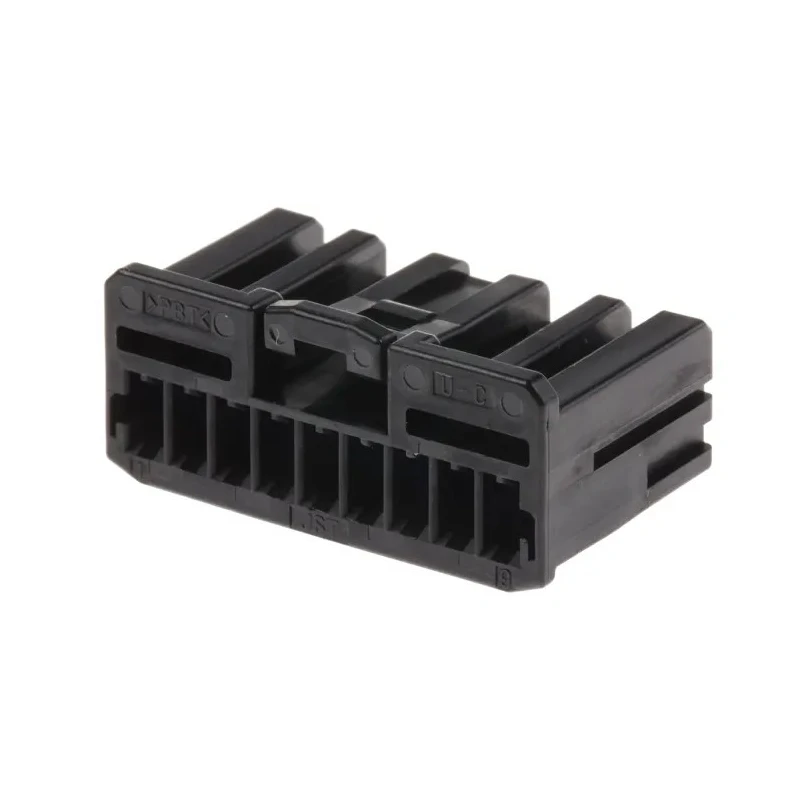

JST Automotive Connector Female 9 Way Black Surface Crimp Termination HCHFB-09-KE



Category Automotive Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Colour	Black
Current	5A
Height	11.25mm
Model	HCHFB-09-KE
Depth	14.8mm
Width	25.2mm
Gender	Female
Mount Type	Surface
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	HCH
Termination Type	Crimp
Maximum Operating Temperature	120°C
Sub Type	Automotive Connector Housing
Minimum Operating Temperature	-40°C
Number of Rows	1
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	9

Key Features

9 contacts with a 2.54 mm pitch ensure reliable electrical connections.
Constructed with polybutylene terephthalate housing for durability and high heat resistance.
Designed for crimp termination with compatible female terminals between 0.3 mm² to 0.5 mm² cable size.
Supports current rating of 5 amps for automotive electrical applications.
Operating temperature range from -40°C to 120°C for automotive environmental conditions.
Copper alloy contacts plated with tin for corrosion resistance and conductivity.
Compact 1 row design with surface mount to facilitate space-critical PCB connections.
Suitable for rugged automotive electrical equipment requiring high reliability.

Product Description

The JST HCHFB-09-KE is a 9-way female automotive connector housing designed specifically for robust electrical connections in automotive environments. Featuring a black polybutylene terephthalate housing and copper alloy contacts plated with tin, this connector provides durable and reliable performance under a wide temperature range of -40°C to 120°C.

With a compact 2.54 mm pitch and single row layout, this surface mount connector facilitates space-saving, low-profile wire-to-board connections in vehicles. Its crimp termination type is compatible with female terminals sized between 0.3 mm² to 0.5 mm², enabling secure and stable cable connections.

The connector supports up to 5 amps current and is engineered for high reliability in automotive electrical systems. It adheres to RoHS environmental standards, ensuring compliance with hazardous material restrictions.

This product is integral for automotive applications requiring rugged, compact, and dependable connectors for power and signal delivery. The JST HCH series is well-recognized for miniaturized wire-to-board solutions in construction, manufacturing automation, and commercial vehicle electrical assemblies.

9 contacts with 2.54 mm pitch and crimp termination for durable automotive connections. Polybutylene terephthalate housing withstands harsh conditions and high temperatures. Black color housing provides ease of identification in harness assemblies.

Surface mount type suitable for dense PCB designs in automotive control modules. Copper alloy contact with tin plating ensures excellent conductivity and corrosion resistance. Operating range from -40°C to 120°C suits diverse automotive environments.

RoHS compliant for environmental safety and regulation adherence. Compact, rugged, and reliable design meets demanding automotive electrical needs. Explore the comprehensive JST range and related Automotive Connectors available at EnvMart for diverse industrial, automotive, and commercial electrical applications.
