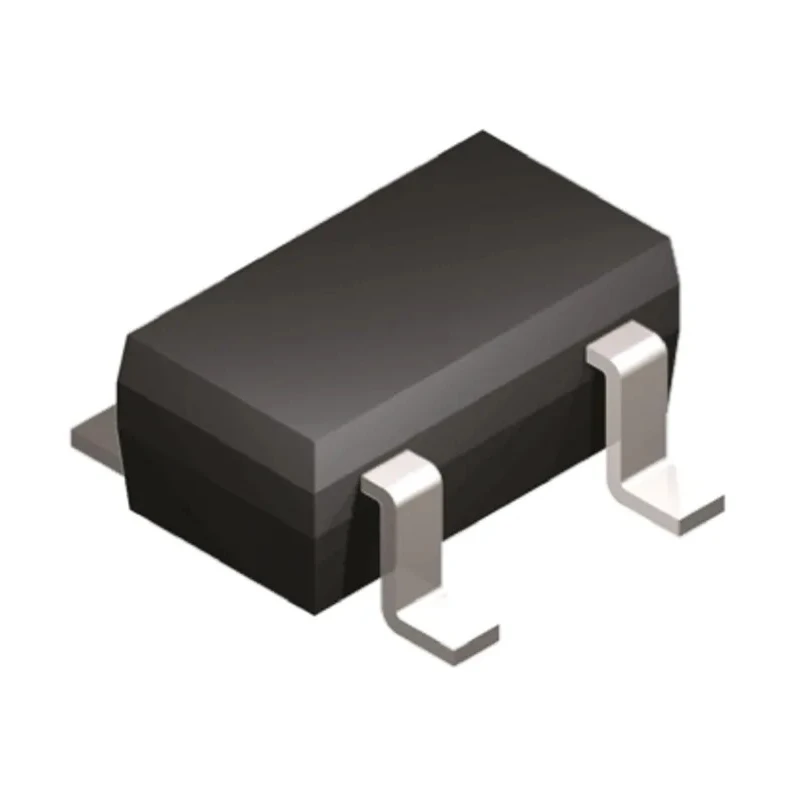

DiodesZetex Current Monitor Single 5-Pin SOT-25 ZXCT1084E5TA
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | ZXCT1084E5TA |
| Mount Type | Surface |
| Series | ZXCT1084 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-25 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-5263Brand: DiodesZetexManufacturers Part No.: ZXCT1084E5TA |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 60V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 2μA |
| GBP - Gain Bandwidth Product | 500kHz |
| CMRR - Common Mode Rejection Ratio | 100dB |
| ZXCT1084E5TA DiodesZetex Current Monitor Single 5-Pin SOT-25RS Stock No. | 738-5263Brand: DiodesZetexManufacturers Part No.: ZXCT1084E5TA |
Key Features
- Operates with a single power supply voltage from 2.7V to 60V.
- Features a Common Mode Rejection Ratio (CMRR) of 100dB for improved accuracy.
- Consumes a low supply current of only 2μA for energy-efficient applications.
- Compact SOT-25 package with 5 pins facilitates surface mounting.
- Designed to operate reliably across a wide temperature range of -40°C to 125°C.
- Includes a Gain Bandwidth Product (GBP) of 500kHz for fast response.
- Complies with automotive standard AEC-Q100 ensuring automotive-grade reliability.
- Measures current by detecting voltage drop across low-value resistor in high-current power rails.
Product Description
DiodesZetex ZXCT1084E5TA is a single-channel current monitor housed in a compact 5-pin SOT-25 surface mount package. It operates over a wide supply voltage range from 2.7V to 60V and offers precise current sensing capabilities with a 100dB common mode rejection ratio (CMRR). Its low supply current of 2μA makes it ideal for power-sensitive applications.
The device features a gain bandwidth product (GBP) of 500kHz, ensuring fast and accurate response to current changes in power rails. It is designed to measure current by sensing the voltage drop across a low-value resistor placed in the current path, providing a proportional voltage output suitable for electronic control and monitoring systems.
With a wide operating temperature range from -40°C to 125°C and compliance to the automotive AEC-Q100 standard, the ZXCT1084E5TA is robust enough for automotive and industrial environments. Its small footprint and surface mount design enable easy integration into modern PCB layouts.
This current monitor is manufactured in China and is suitable for applications in electronic components, power systems, automotive controls, and industrial equipment where precise current measurement and low power consumption are essential.
Operates on single power supply voltage between 2.7V and 60V. High common mode rejection ratio of 100dB ensures measurement accuracy. Low supply current of 2μA supports energy-efficient designs. Compact 5-pin SOT-25 surface mount package.
Wide operating temperature from -40°C up to 125°C. Gain bandwidth product of 500kHz for fast response times. Meets automotive standard AEC-Q100 for reliable automotive use.
The ZXCT1084E5TA current monitor is ideal for industrial, automotive, and electronic applications requiring precise, low power current sensing. Its surface mount design and robust performance make it an effective solution for Current Monitoring in power circuitry.
Explore the broad selection of current sensing amplifiers and other semiconductor solutions at EnvMart, where quality meets reliability for engineering success.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a single power supply voltage ranging from 2.7V to 60V.
It features a common mode rejection ratio (CMRR) of 100dB, which enhances measurement accuracy.
The device consumes a low supply current of only 2μA, making it suitable for energy-efficient applications.
The gain bandwidth product (GBP) is 500kHz, allowing for fast response to current changes.
This current monitor operates reliably across a wide temperature range of -40°C to 125°C.
It comes in a compact SOT-25 surface mount package with 5 pins, facilitating easy integration into PCB layouts.
The ZXCT1084E5TA is a single-channel current monitor.
It complies with the automotive standard AEC-Q100, ensuring reliability for automotive applications.
The dimensions of this model are 1.3mm in height and 3.1mm in length.
It is suitable for applications in electronic components, power systems, automotive controls, and industrial equipment requiring precise current measurement.
It measures current by detecting the voltage drop across a low-value resistor placed in the current path, providing a proportional voltage output.
This current monitor is manufactured in China.
