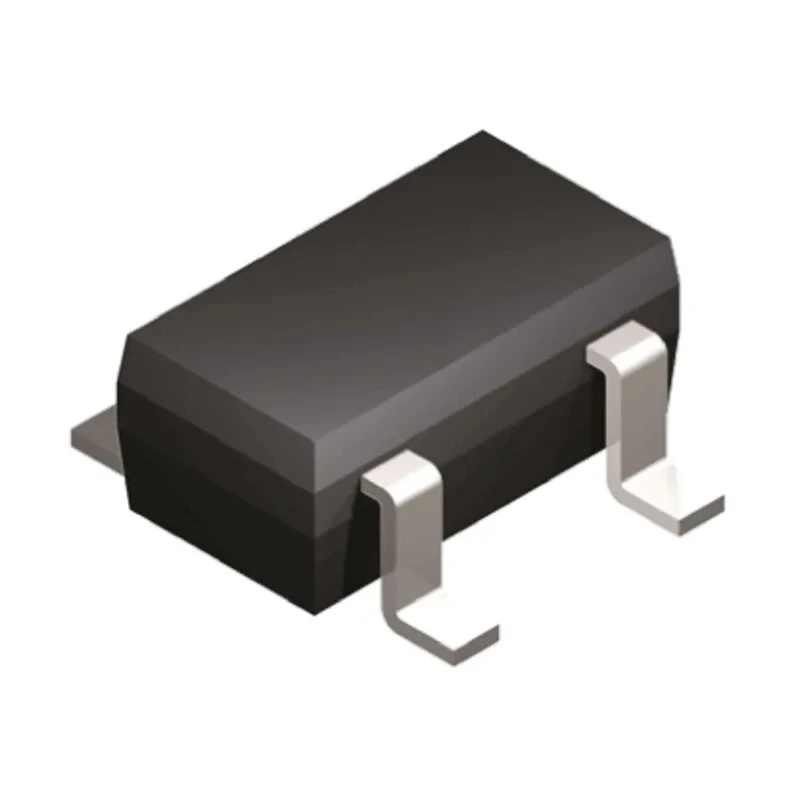

DiodesZetex Current Monitor Single Channel 5-Pin SOT-25 2.7V to 60V ZXCT1082E5TA

DiodesZetex ZXCT1082E5TA is a high-performance single channel current monitor enclosed in a compact 5-pin SOT-25 surface mount package. It operates over a wide supply voltage range from 2.7V to 60V, making it suitable for various electronic and power management applications including industrial automation, power supplies, battery management systems, and automotive electronics.

This current sensing amplifier offers a low supply current of just 2 microamperes, which helps reduce overall power consumption in sensitive circuits. It provides a gain bandwidth product of 500 kHz, ensuring fast and accurate measurement of current through low-value resistors in high-current power rails.

With a common mode rejection ratio (CMRR) of 80 dB, the ZXCT1082E5TA maintains signal integrity even in electrically noisy environments. It conforms to the automotive standard AEC-Q100, highlighting its reliability in harsh conditions. The device is rated to operate safely in ambient temperatures from -40°C up to 125°C, suitable for demanding industrial and automotive use cases.

The physical dimensions of the device are compact, measuring 3.1 mm in length and 1.3 mm in height, enabling space-saving PCB designs. The surface mount SOT-25 package simplifies assembly and soldering processes, enhancing manufacturing efficiency.

This current sensing amplifier outputs a voltage proportional to the voltage drop across a very low-value resistor, allowing precise measurement of current flow within a power rail. It is ideal for integrating into systems requiring real-time current monitoring for control, protection, and diagnostics.

Wide supply voltage range from 2.7 V to 60 V. Extremely low supply current of 2 μA. High gain bandwidth product of 500 kHz. Robust common mode rejection ratio of 80 dB. Compact 5-pin SOT-25 surface mount package for easy PCB integration.

Automotive compliant to AEC-Q100 for durability and reliability. Wide operating temperature range from -40°C to 125°C. Designed for precise current monitoring in power rails and electronic circuits.

This product is suitable for use in electronics manufacturing, power sensing and management, automotive electronics, industrial control systems, and other related fields. EnvMart offers this DiodesZetex Current Monitor for applications requiring efficient current measurement with compact, reliable hardware.
