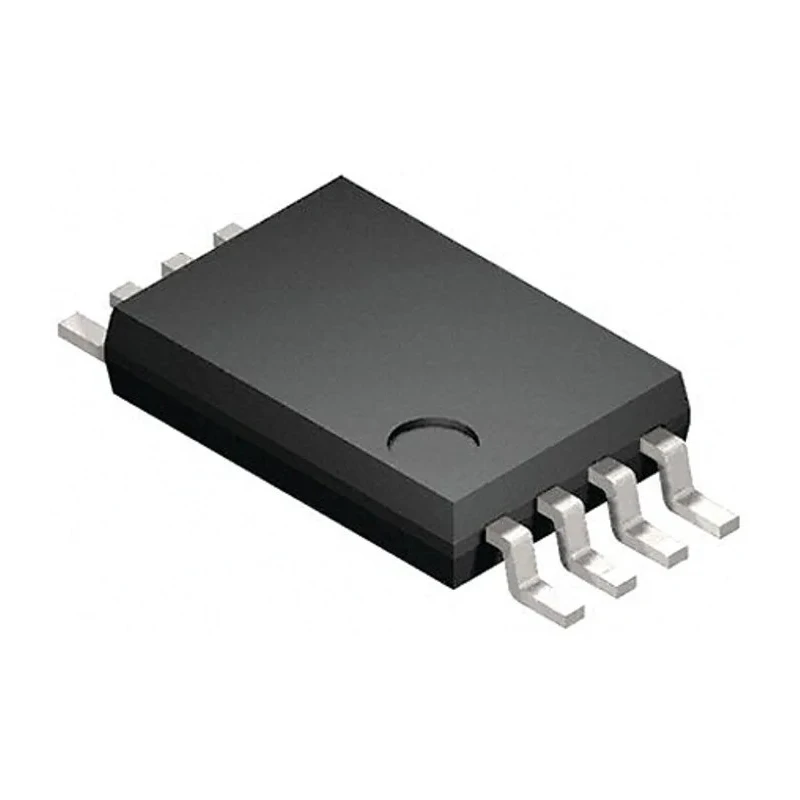

onsemi Logic Level Translator Translator 2 LVPECL/LVDS/CML to LVTTL/LVCMOS 8-Pin TSSOP MC100EPT21DTG

Free Delivery in India | Lowest Global Shipping Charges

onsemi Logic Level Translator Translator 2 LVPECL/LVDS/CML to LVTTL/LVCMOS 8-Pin TSSOP MC100EPT21DTG

Name: onsemi Logic Level Translator Translator 2 LVPECL/LVDS/CML to LVTTL/LVCMOS 8-Pin TSSOP MC100EPT21DTG
Brand: onsemi
SKU: 374370
Price: 10.1 USD
Availability: InStock



Category Logic Level Translator Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	950μm
Length	3.1mm
Model	MC100EPT21DTG
Mount Type	Surface
Output type	LVCMOS/LVTTL
Series	MC100EPT2
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pin Count	8
Number of Elements per Chip	2
Maximum Supply Voltage	3.6V
Logic Family	ECL
Logic Function	Translator
Minimum Supply Voltage	3V
Maximum High Level Output Current	-3mA
Maximum Propagation Delay Time @ CL	2ns
Direction Type	Uni-Directional
Maximum Low Level Output Current	24mA
Translation	LVPECL/LVDS/CML to LVTTL/LVCMOS

Key Features

This translator operates with a minimum supply voltage of 3V and maximum of 3.6V.
It features a maximum propagation delay time of 2 nanoseconds at specified load conditions.
The device has 2 elements per chip, with 8 pins in total.
Operating temperature ranges from -40°C to 85°C, suitable for industrial applications.
The maximum low level output current is 24mA, and maximum high level output current is -3mA.
Its compact dimensions include a length of 3.1mm and height of 950 micrometers.
The logic function supports translation between multiple differential logic standards to standard TTL/CMOS levels.
Designed for surface mount applications, enhancing PCB design flexibility.

Product Description

onsemi MC100EPT21DTG is a uni-directional logic level translator featuring 2 LVPECL/LVDS/CML inputs translated to LVTTL/LVCMOS outputs. Packaged in an 8-pin TSSOP surface mount package, it operates with a supply voltage range of 3V to 3.6V and provides high-speed translation with a maximum propagation delay of 2ns. This ECL Logic Level Translator is designed to interface multiple differential signaling standards with TTL and CMOS logic levels, making it ideal for various electronic components and systems requiring fast, reliable signal level translation.

The device supports a maximum low-level output current of 24mA and a maximum high-level output current of -3mA, ensuring robust output drive. Its compact dimensions (3.1mm length and 950µm height) allow space-efficient PCB layouts. The MC100EPT21DTG functions reliably over a wide temperature range from -40°C to 85°C, suitable for industrial, telecommunications, and computing applications.

This product is part of onsemi's MC100EPT2 series and is a surface mount device optimized for modern electronics manufacturing processes. It lacks automotive-specific certifications but is widely used across laboratory, manufacturing, and industrial applications for standard logic interfacing tasks.

This translator IC converts LVPECL, LVDS, and CML logic levels to LVTTL and LVCMOS. It requires a low operating voltage between 3V and 3.6V for energy-efficient operation. Offers high-speed translation with a propagation delay of only 2 nanoseconds.

Provides output drive currents suitable for standard digital logic inputs. Compact 8-pin TSSOP package supports flexible surface mount assembly. Operates reliably in harsh temperature conditions from -40°C up to 85°C. Contains two translation elements integrated into one chip.

Used in industrial, telecommunications, electronic equipment, and computing systems. Enhances signal compatibility between advanced differential signaling and standard CMOS logic levels. Explore more semiconductor and translator IC solutions at EnvMart to find complementary components and devices for your electronic projects and manufacturing needs.
