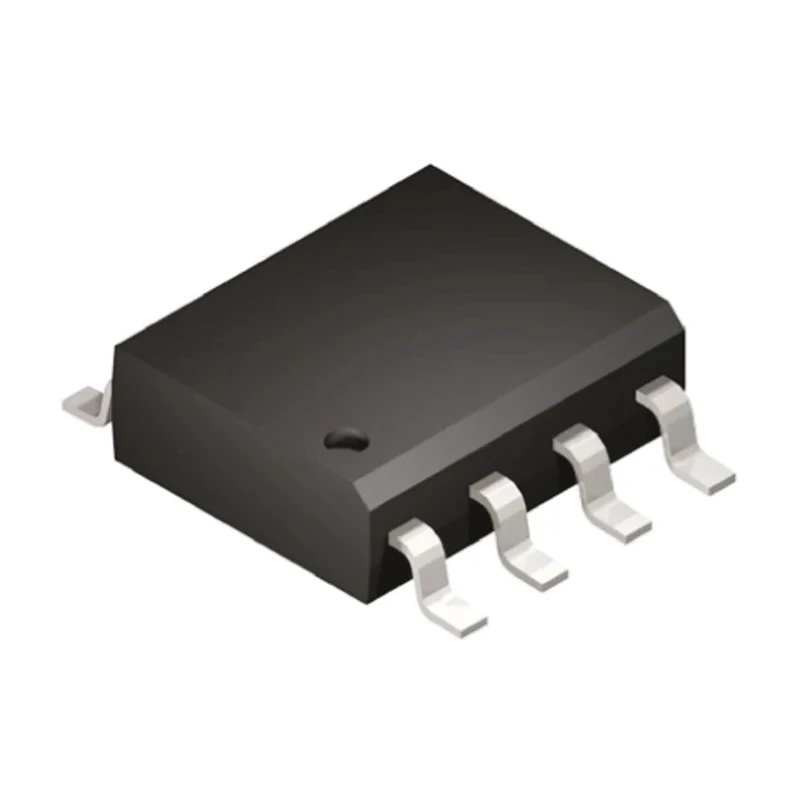

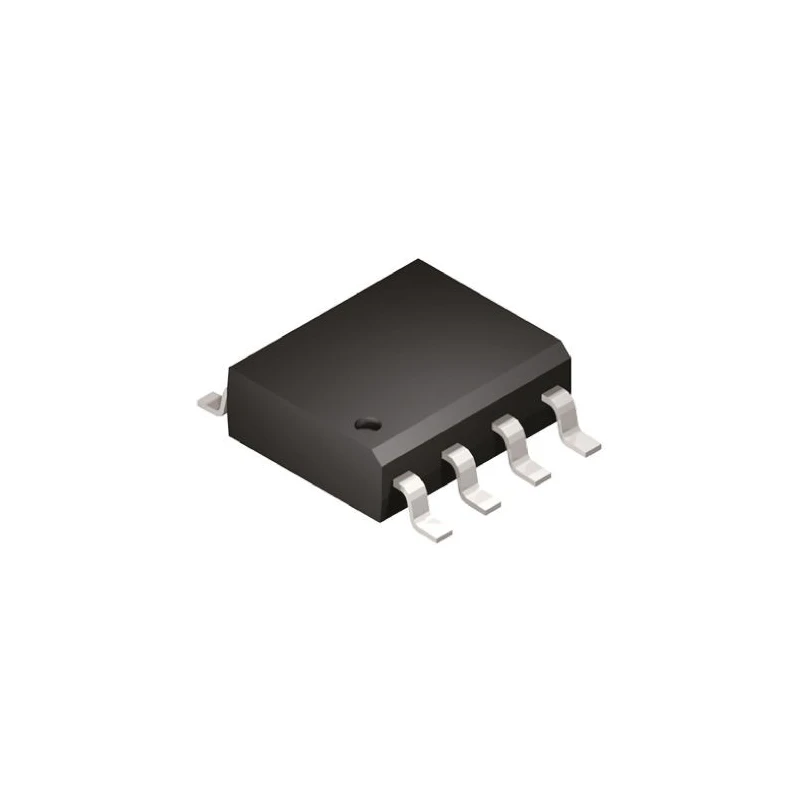

onsemi Logic Level Translator Translator 2 LVTTL to LVPECL, LVCMOS to LVPECL, 8-Pin SOIC MC100EPT22DG

onsemi MC100EPT22DG is a uni-directional Logic Level Translator designed for interfacing LVTTL and LVCMOS logic levels to LVPECL output. Packaged in a compact 8-pin SOIC surface mount device, it allows efficient translation for two channels per chip with a quick propagation delay of 2 nanoseconds.

Operating at a supply voltage between 3V and 3.6V, the device supports robust logic output currents, delivering up to 100mA high-level and 50mA low-level currents. Its temperature tolerance ranges from -40°C to 85°C, making it suitable for industrial and commercial electronic applications.

This component is ideal for use in electronic systems requiring reliable high-speed signal translation between differing logic families, including ECL, PECL, CML, LVDS, HSTL, HCSL, TTL, and CMOS standards.

The surface mount SOIC package features a compact 5mm length and 1.5mm height, aiding space-constrained PCB layouts. It is a part of the MC100EPT2 series with a focus on delivering precise, high-speed level translation with low propagation delay.

Supports translation of 2 channels per chip. Maximum propagation delay time of 2ns enhances signal timing. Operates within supply voltages from 3V to 3.6V for flexible power options. Robust output current capacity for varied electronic load requirements.

Broad temperature range ensures reliability in harsh environments. Compatible with various logic standards for versatile interfacing. Compact SOIC surface mount package for modern electronics assemblies. Non-compliant with automotive standards; suited for general industrial uses.

Common application sectors include industrial electronics, telecommunications, computing equipment, and other electronic component manufacturing requiring precise logic signal interfacing.

Explore the extensive range of semiconductor logic devices and translators at EnvMart for reliable integration into your next project.
