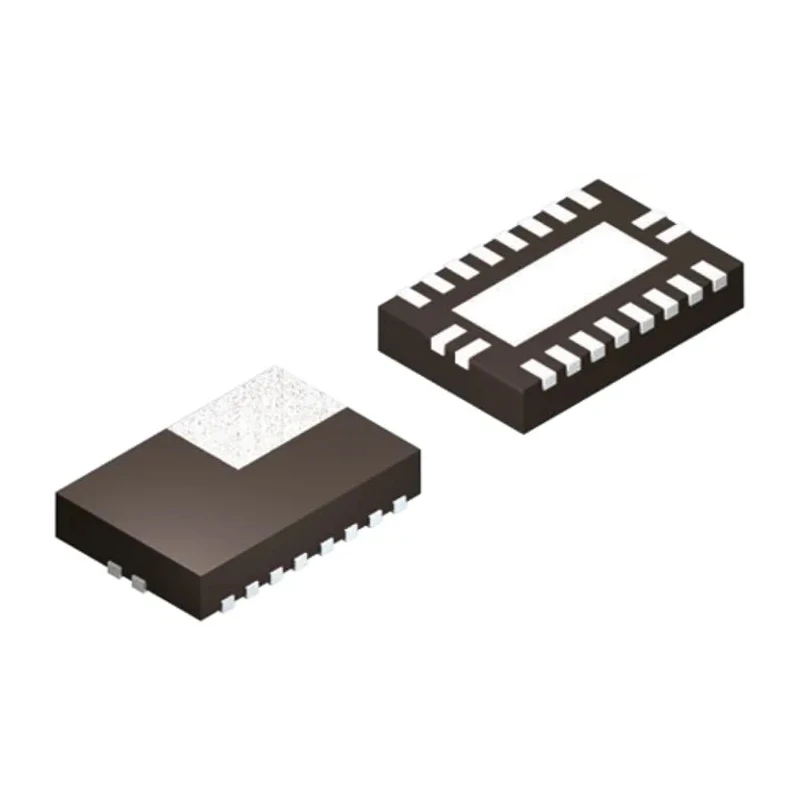

Nexperia 20-Pin DHVQFN Bus Switch Logic Family CBTL 8 Elements 2.3-3.6V 74CBTLV3245BQ,115
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Nexperia |
| Height | 950μm |
| Length | 4.6mm |
| Model | 74CBTLV3245BQ,115 |
| Mount Type | Surface |
| Series | 74CBTLV3245 |
| Maximum Operating Temperature | 125°C |
| Package Type | DHVQFN |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Number of Elements per Chip | 8 |
| Automotive Standard | AEC-Q100-011 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | CBTL |
| Minimum Supply Voltage | 2.3V |
| Maximum Propagation Delay Time @ CL | 0.31ns |
| Maximum On State Resistance | 60Ω |
| Bus Width | 8bit |
Key Features
- Operates within supply voltage range from 2.3V to 3.6V.
- Compact 20-pin DHVQFN surface mount package type.
- Maximum on state resistance of 60 ohms ensuring efficient switching.
- Maximum propagation delay time of 0.31 nanoseconds at specified load.
- Capable of operating in wide temperature range from -40°C to 125°C.
- Bus width of 8 bits suitable for modern electronic applications.
- Complies with RoHS environmental standards for hazardous substances.
- Meets Automotive standard AEC-Q100-011 for enhanced reliability.
Product Description
Nexperia 74CBTLV3245BQ,115 20-Pin DHVQFN Bus Switch integrates 8 elements per chip from the CBTL logic family designed for reliable and efficient signal switching in electronic circuits. It operates at a low voltage range of 2.3 to 3.6 volts, providing energy-efficient performance ideal for embedded system designs and semiconductor applications.
The device comes in a compact 20-pin DHVQFN surface mount package measuring 4.6mm in length and 950μm in height, enabling space-saving PCB layouts. Its maximum on state resistance of 60 ohms and minimal propagation delay of 0.31 nanoseconds ensure swift and effective signal transmission critical in high-speed digital circuits.
Operational temperature specifications from -40°C up to 125°C allow deployment in industrial, automotive, and harsh environment applications. The bus switch supports an 8-bit bus width compatible with multiple semiconductor and logic IC designs, making it versatile for various power and connector electronic assemblies.
Additionally, the product conforms to the RoHS directive, assuring environmental compliance, and meets AEC-Q100-011 automotive standard requirements for optimized durability and reliability in vehicular electronics.
Manufactured in Thailand with Nexperia's hallmark quality, this bus switch is suited for applications in industrial automation, automotive electronics, consumer electronics, and telecommunications.
Operates within supply voltage range from 2.3V to 3.6V. Compact 20-pin DHVQFN surface mount package type. Maximum on state resistance of 60 ohms ensuring efficient switching. Maximum propagation delay time of 0.31 nanoseconds at specified load.
Capable of operating in wide temperature range from -40°C to 125°C. Bus width of 8 bits suitable for modern electronic applications. Complies with RoHS environmental standards for hazardous substances. Meets Automotive standard AEC-Q100-011 for enhanced reliability.
Manufactured in Thailand with quality assurances. Explore more semiconductor components and Bus Switch solutions in the Electronics & Electricals category at EnvMart for your industrial and commercial electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 2.3V to 3.6V.
The maximum on state resistance is 60 ohms, ensuring efficient switching performance.
The maximum propagation delay time is 0.31 nanoseconds at the specified load.
It can operate in a wide temperature range from -40°C to 125°C.
This model supports an 8-bit bus width, making it suitable for various electronic applications.
It comes in a compact 20-pin DHVQFN surface mount package.
It meets the Automotive standard AEC-Q100-011 for enhanced reliability.
It is manufactured in Thailand.
The dimensions are 4.6mm in length and 950μm in height.
It complies with RoHS environmental standards for hazardous substances.
It integrates 8 elements per chip from the CBTL logic family.
It is suitable for applications in industrial automation, automotive electronics, consumer electronics, and telecommunications.
