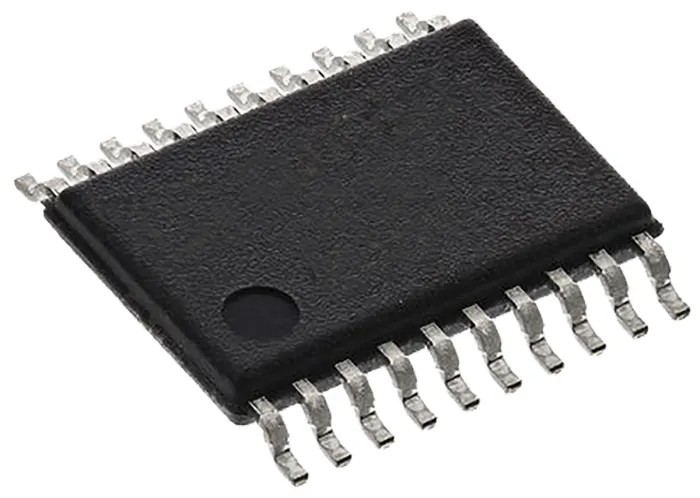

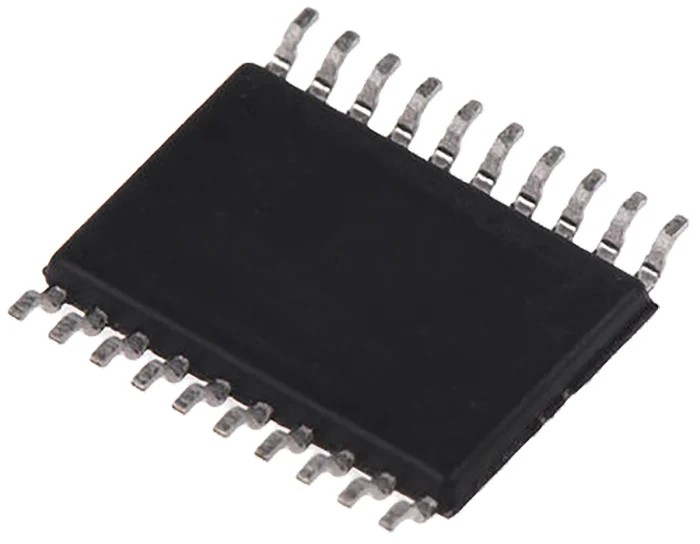

Texas Instruments Bus Switch 8 x 1:1, 20-Pin TSSOP SN74CB3T3245PW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 6.5mm |
| Model | SN74CB3T3245PW |
| Mount Type | Surface |
| Compatibility | Input TTL, Output TTL |
| Series | SN74CB3T3245 |
| Configuration | 8 x 1:1 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | CB3T |
| Minimum Supply Voltage | 2.3V |
| Maximum High Level Output Current | -128mA |
| Maximum Low Level Output Current | 128mA |
| Maximum On State Resistance | 5Ω |
| Bus Width | 8bit |
| Configuration8 x 1 | 1 |
| Texas Instruments SN74CB3T3245PW, Bus Switch, 8 x 1 | 1, 20-Pin TSSOP |
Key Features
- Supports logic family CB3T with operating voltage range of 2.3V to 3.6V.
- Achieves maximum on-state resistance of 5 ohms ensuring efficient signal switching.
- Designed for extended temperature use from -40°C up to 85°C.
- Compatible with input TTL and output TTL signals improving system integration.
- Compact dimensions of 6.5 mm length and 1.15 mm height optimize PCB space usage.
- Suitable for industrial and electronic applications requiring reliable bus switching.
- Surface mount package type (TSSOP) facilitates automated assembly processes.
- Single element per chip design enhances straightforward circuit implementation.
Product Description
Texas Instruments SN74CB3T3245PW is a bus switch device designed for efficient signal switching in electronic circuits. It features an 8 x 1:1 configuration and is housed in a low-profile 20-Pin Thin Shrink Small Outline Package (TSSOP) optimized for surface mount technology. Operating over a voltage range of 2.3V to 3.6V, the device integrates the CB3T logic family providing compatibility with TTL inputs and outputs.
This bus switch delivers a maximum on-state resistance of 5 ohms, ensuring minimal signal degradation and reliable switching performance. It is capable of operating in a wide temperature range from -40°C to 85°C, making it suitable for various industrial, electronics manufacturing, and laboratory applications including signal routing and multiplexing.
The compact physical dimensions (6.5 mm length and 1.15 mm height) help conserve valuable PCB space, and the surface mount TSSOP package supports automated production environments enhancing manufacturing efficiency. The device incorporates a single element per chip, simplifying circuit design and integration.
Its compatibility with TTL input and output signals enables seamless interfacing with digital logic circuits commonly used in embedded systems, communication equipment, and instrumentation.
Applications include use in electronic devices requiring precise bus switching functions, such as telecommunications, industrial control systems, and other high-performance electronic designs.
Supports logic family CB3T with operating voltage range of 2.3V to 3.6V. Maximum on-state resistance of 5 ohms for effective signal switching. Operating temperature range from -40°C to 85°C for reliability in harsh environments.
Compact 20-Pin TSSOP surface mount package for space-efficient designs. Input TTL and output TTL compatibility for digital circuit integration. Single chip element simplifying electronic design and layout. Dimensions of 6.5 mm length and 1.15 mm height enable PCB space optimization.
This Texas Instruments SN74CB3T3245PW bus switch is a high-quality semiconductor component ideal for electronics manufacturing, laboratory equipment, and industrial electronic systems requiring dependable signal switching performance.
Explore more semiconductor components and Bus Switches at EnvMart for advanced electronics and industrial applications.
