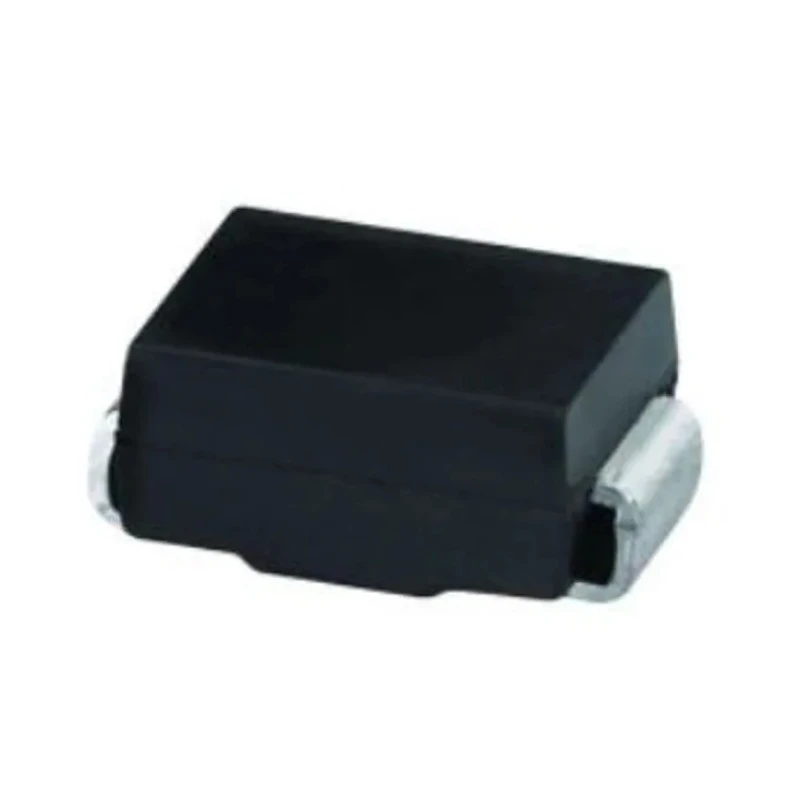

Vishay 30 V 4 A Surface Mount Schottky Diode DO-214AA 2-Pin SSB43L-E3/52T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 4.7mm |
| Model | SSB43L-E3/52T |
| Width | 3.8mm |
| Mount Type | Surface |
| Series | SSB |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA (SMB) |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | AEC-Q101, RoHS, UL 94 V-0 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 4A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 600μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.49V |
Key Features
- Utilizes a DO-214AA (SMB) package suitable for compact PCB mounting.
- Features a low maximum forward voltage of 0.49 V, minimizing power loss in circuits.
- Designed for fast switching with extremely quick reverse recovery times.
- Operating temperature range from -65°C to 150°C ensuring reliability in harsh environments.
- Peak non-repetitive forward surge current rating of 100 A for transient handling.
- Ultra-low peak reverse current of 600 μA reduces leakage losses.
- Complies with AEC-Q101 automotive standard and RoHS directive ensuring quality and environmental compliance.
- Measures 4.7 mm in length and 3.8 mm in width for efficient PCB space utilization.
Product Description
Vishay SSB43L-E3/52T is a high-performance Schottky diode designed for surface mount electronic applications requiring efficient switch and rectification performance. Featuring a maximum continuous forward current of 4 A and a peak reverse voltage of 30 V, it supports reliable power management in industrial, automotive, and electronic systems.
Housed in the compact DO-214AA (SMB) package, this diode provides excellent space savings on printed circuit boards. Its low forward voltage drop of 0.49 V enables reduced power dissipation and enhanced energy efficiency.
The diode supports a broad operating temperature range from -65°C to 150°C, making it suitable for harsh environmental conditions including automotive and industrial applications. The 100 A peak non-repetitive forward surge current rating delivers resilience against transient overloads.
Vishay SSB43L-E3/52T conforms to AEC-Q101 automotive standards and is RoHS compliant, providing assurance of quality and environmental responsibility. DO-214AA (SMB) surface mount package. 4 A maximum continuous forward current.
30 V peak reverse voltage. Fast switching and low forward voltage of 0.49 V. Temperature rating from -65°C to 150°C. 100 A peak surge current rating. 600 μA peak reverse current. AEC-Q101 and RoHS compliance.
This Schottky diode serves industrial and automotive electronic circuits where fast switching and low power loss are critical. Common applications include power supplies, voltage clamping, and freewheeling Diodes in motor controllers and other switching regulators.
Explore more electronic components and semiconductor solutions at EnvMart for reliable and high-quality products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 4 A.
This diode has a peak reverse voltage rating of 30 V.
It is housed in a DO-214AA (SMB) package.
The operating temperature range is from -65°C to 150°C.
The maximum forward voltage drop is 0.49 V.
The peak non-repetitive forward surge current rating is 100 A.
The peak reverse current is rated at 600 μA.
It complies with the AEC-Q101 automotive standard.
This model measures 4.7 mm in length and 3.8 mm in width.
This model has a single diode configuration.
Yes, it is RoHS compliant, ensuring environmental responsibility.
It is suitable for applications requiring fast switching and low power loss, such as power supplies and motor controllers.
