DiodesZetex 30 V 200 mA Surface Mount Schottky Barrier Switching Diode SOD-523 BAT54WT-7

Free Delivery in India | Lowest Global Shipping Charges

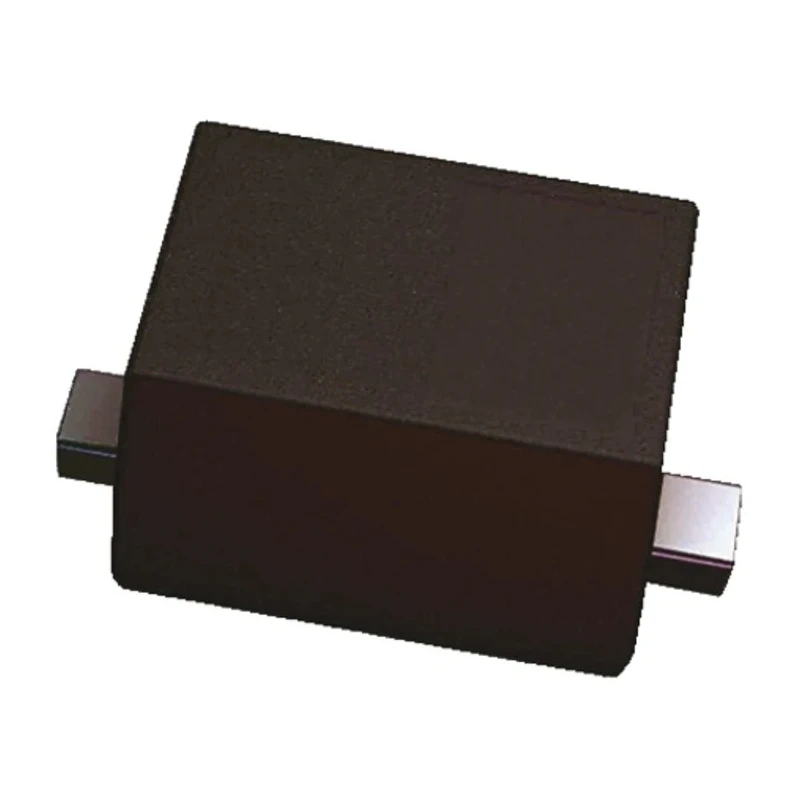

DiodesZetex 30 V 200 mA Surface Mount Schottky Barrier Switching Diode SOD-523 BAT54WT-7

Name: DiodesZetex 30 V 200 mA Surface Mount Schottky Barrier Switching Diode SOD-523 BAT54WT-7
Brand: DiodesZetex
SKU: 377761
Price: 0.09 USD
Availability: InStock



Category Diodes Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	0.65mm
Length	1.3mm
Model	BAT54WT-7
Width	0.9mm
Mount Type	Surface
Series	BAT54WT
Maximum Operating Temperature	150°C
Package Type	SOD-523
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	600mA
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	5ns

Key Features

This diode supports a maximum continuous forward current of 200 mA.
It has a peak reverse repetitive voltage rating of 30 V suitable for various switching applications.
The peak reverse current is extremely low at 2 μA, ensuring minimal leakage.
Operation is guaranteed between temperatures of -65°C to 150°C, making it robust for harsh environments.
Its compact dimensions of 1.3 mm length, 0.9 mm width, and 0.65 mm height allow easy integration in dense PCB layouts.
The device has a maximum forward voltage of 1 V and a rapid peak reverse recovery time of 5 ns for high-frequency switching.
Designed as a single diode configuration with a 2-pin surface mount package type SOD-523.
No automotive standards apply, indicating general electronic applications.

Product Description

DiodesZetex BAT54WT-7 is a high-performance Schottky Barrier Diode designed for surface mount applications, packaged in a compact SOD-523 2-pin configuration. It supports a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V, making it suitable for switching and rectifying purposes in electronic circuits.

The diode offers a low forward voltage drop of 1 V and a very fast peak reverse recovery time of 5 nanoseconds, enhancing efficiency in high-speed switching applications. Its low peak reverse current of 2 μA reduces leakage, ensuring reliable performance.

With operating temperatures ranging from -65°C to 150°C, it is capable of functioning under demanding environmental conditions. The physical dimensions are 1.3 mm in length, 0.9 mm in width, and 0.65 mm in height, ideal for compact PCB designs where space-saving is essential.

This component is a single diode type, part of the BAT54WT series, and complies with standard semiconductor requirements without specific automotive certification. Common uses include power management, rectification, and switching in consumer electronics, industrial controls, and telecommunications equipment.

It also integrates well in applications requiring low forward voltage and fast switching speed, particularly in low-voltage DC circuits. Maximum continuous forward current: 200 mA. Peak reverse repetitive voltage: 30 V. Minimum operating temperature: -65°C; maximum operating temperature: 150°C.

Peak reverse current: 2 μA for low leakage. Maximum forward voltage: 1 V. Peak reverse recovery time: 5 ns for fast switching. Compact SOD-523 package with 2 pins. Single diode configuration. Explore a wide range of Schottky Barrier Diodes like the BAT54WT-7 in our Electronics & Electricals category for precise industrial and commercial uses.
