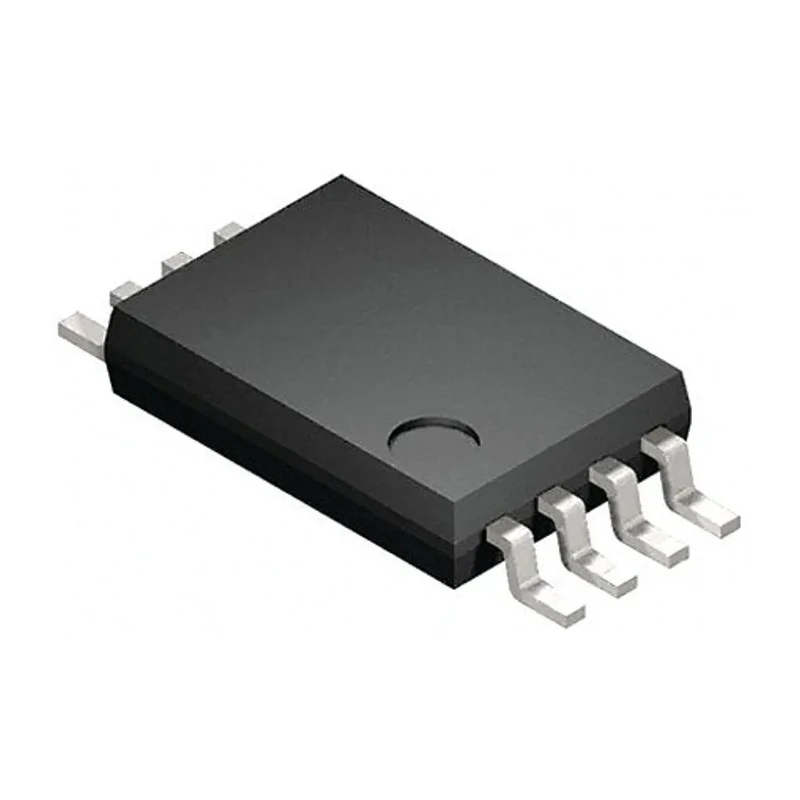

onsemi Logic Level Translator 2 LVPECL/LVDS/CML to LVTTL/LVCMOS, 8-Pin TSSOP MC100EPT23DTG

onsemi MC100EPT23DTG is a high-performance, uni-directional logic level translator designed for interfacing differential logic families including LVPECL, LVDS, CML, HSTL, HCSL, TTL, and CMOS devices to LVTTL/LVCMOS levels. Packaged in an 8-pin TSSOP surface-mount format, it contains 2 translator elements per chip facilitating efficient integration within compact PCB designs.

The device operates at supply voltages ranging from 3 V to 3.6 V and exhibits a maximum propagation delay of 2 ns, ensuring fast signal translation suitable for high-speed communication and timing-critical electronic systems. It supports output currents of up to 24 mA in low-level output and -3 mA in high-level output modes, maintaining signal integrity across various load conditions.

Its thermal performance allows operation over a broad temperature range from -40°C to 85°C, making it suitable for industrial, communication, and embedded system environments. The MC100EPT23DTG is part of the MC100EPT2 series, though it does not have automotive standard approvals, it remains ideal for demanding logic translation in electronic component assemblies used in industrial automation, instrumentation, and semiconductor systems.

The compact TSSOP package ensures efficient footprint utilization on PCBs, and its surface mounting facilitates modern assembly processes. Applications include digital signal conditioning, interface level shifting, and protocol adaptation in industrial equipment, telecommunications, and computing hardware.

This device operates with a minimum supply voltage of 3 V and a maximum of 3.6 V. It features a 2 ns maximum propagation delay time at specified load. Uni-directional logic level translation with 2 elements per chip. Supports LVCMOS/LVTTL output logic family at controlled output currents.

Surface-mount TSSOP package sized 3.1 mm length and 950 μm height. Qualified for operation from -40°C to 85°C ambient temperature range. Enables interfacing of LVPECL, LVDS, CML logic to TTL/CMOS systems.
