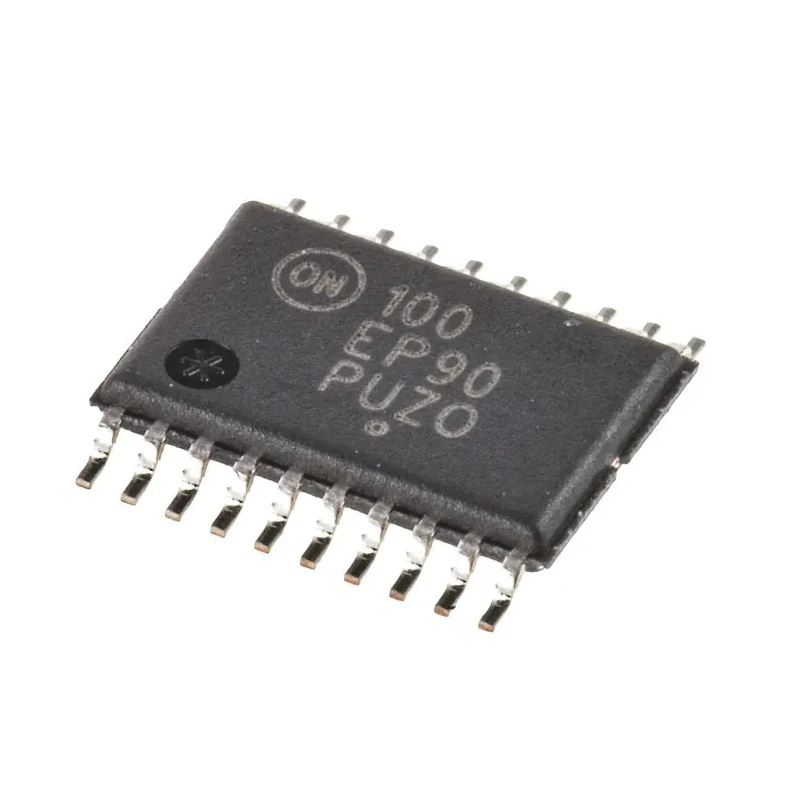

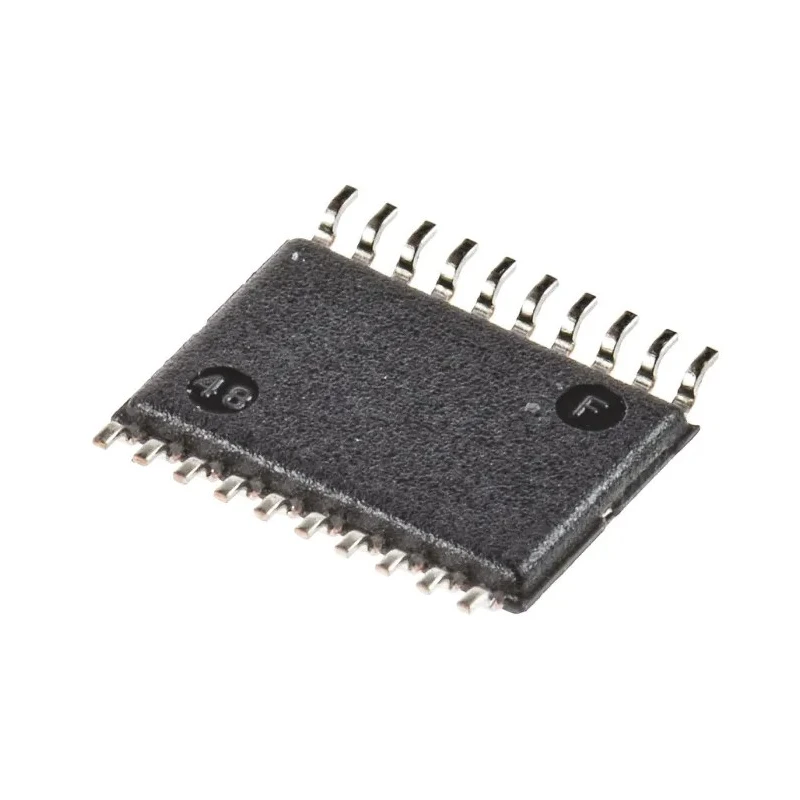

onsemi Logic Level Translator 6 ECL LVECL to LVPECL PECL 20-Pin TSSOP MC100EP90DTG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.05mm |
| Length | 6.6mm |
| Model | MC100EP90DTG |
| Mount Type | Surface |
| Output type | PECL |
| Series | MC100EP90 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | ECL |
| Logic Function | Translator |
| Minimum Supply Voltage | -3V |
| Maximum High Level Output Current | -50mA |
| Maximum Propagation Delay Time @ CL | 370ps |
| Direction Type | Uni-Directional |
| Maximum Low Level Output Current | 50mA |
| Translation | ECL, LVECL to LVPECL, PECL |
Key Features
- Uni-directional logic level translation supports multiple logic families.
- Maximum propagation delay time of 370 picoseconds at CL.
- Operates at supply voltages from -3V to 5.5V.
- Maximum low-level output current is 50mA; maximum high-level output current is -50mA.
- Compact 20-pin TSSOP surface-mount package measuring 6.6mm length and 1.05mm height.
- Supports operation in temperature range from -40°C to 85°C.
- Translates ECL, LVECL signals to LVPECL and PECL outputs.
- Includes 6 logic elements per chip for efficient signal translation.
Product Description
onsemi MC100EP90DTG is a uni-directional logic level translator designed to interface with ECL (Emitter Coupled Logic) family devices and translate signals from LVECL to LVPECL and PECL logic levels. Packaged in a compact 20-pin TSSOP surface mount package, this device delivers high-performance signal translation with a maximum propagation delay of 370 picoseconds at the specified capacitive load.
Operating voltage ranges from a minimum of -3 volts to a maximum of 5.5 volts, enabling versatile power supply configurations. The device features a maximum low-level output current of 50 milliamps and a maximum high-level output current of -50 milliamps, ensuring reliable drive strength for downstream circuits. Its six logic elements per chip optimize signal handling for applications requiring multiple channels.
The MC100EP90DTG supports operation across an industrial temperature range from -40 degrees Celsius to 85 degrees Celsius, making it suitable for robust industrial, automotive, and high-reliability environments. Its small form factor with a height of 1.05 mm and length of 6.6 mm facilitates easy incorporation onto crowded printed circuit boards (PCBs) with tight space constraints.
Uni-directional logic level translation compatible with ECL, PECL, LVECL signal standards. High-speed operation with 370 picoseconds maximum propagation delay at specified conditions. Surface-mount 20-pin TSSOP package enhances PCB layout flexibility.
Wide operating voltage range from -3 V to 5.5 V. Supports industrial temperature range for versatile environmental deployment. Includes 6 logic elements for multiple-channel translation capability. Ensures reliable output drive currents for signal integrity.
This part is widely used in semiconductor logic systems, telecommunications, data communication interfaces, and instrumentation circuits requiring level translation between ECL-derived signals and PECL outputs.
Explore more on Logic Level Translators and semiconductor components on EnvMart to enhance your electronic design projects with high-quality and precision parts like the onsemi MC100EP90DTG.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum propagation delay time for the MC100EP90DTG is 370 picoseconds at the specified capacitive load.
It operates at supply voltages ranging from -3V to 5.5V.
This model translates ECL and LVECL signals to LVPECL and PECL outputs.
It includes 6 logic elements per chip for efficient signal translation.
The device supports an operating temperature range from -40°C to 85°C.
The package measures 6.6mm in length and 1.05mm in height.
The maximum low-level output current is 50mA.
The maximum high-level output current is -50mA.
It uses a surface mount type, specifically in a TSSOP package.
This model is compatible with the ECL logic family.
The country of origin for this product is India.
It is suitable for applications in semiconductor logic systems, telecommunications, data communication interfaces, and instrumentation circuits requiring level translation between ECL-derived signals and PECL outputs.
