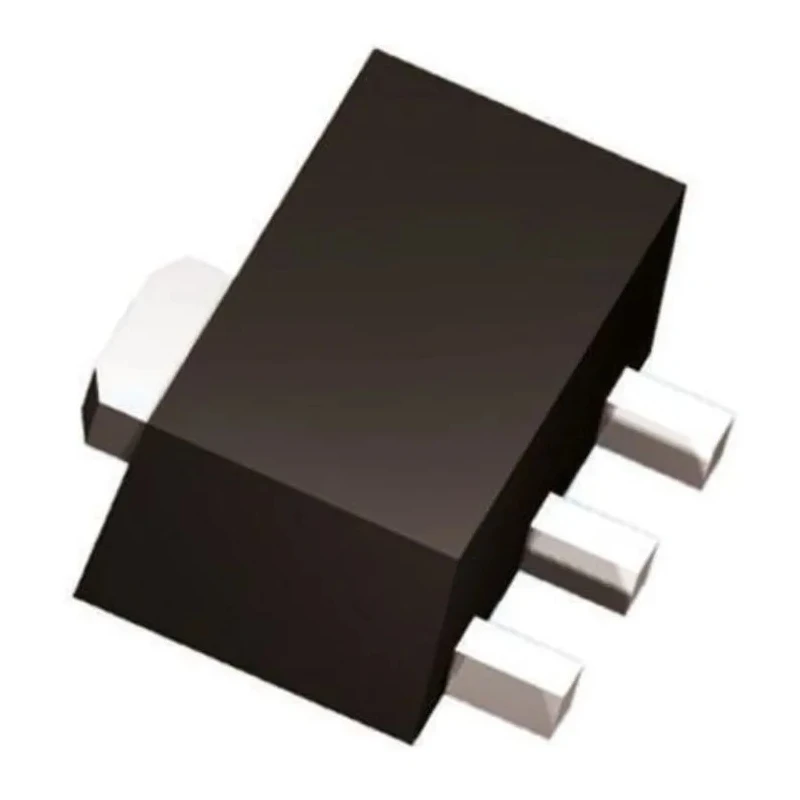

DiodesZetex NPN Transistor, 3 A, 50 V, 3-Pin SOT-89 Surface Mount 2DC4672-13

DiodesZetex 2DC4672-13 is a high-reliability NPN bipolar transistor designed for general-purpose electronic applications. With a maximum collector current of 3 A and a collector-emitter voltage rating of 50 V, this transistor is well suited for use in power switching and amplification circuits requiring robust performance in harsh environments.

The device is housed in a 3-pin SOT-89 surface mount package, offering compact size and ease of mounting for modern PCB layouts. It features a maximum power dissipation of 2 watts, which supports efficient heat dissipation under normal operating conditions.

The transistor supports a maximum collector-base voltage of 60 V and a maximum emitter-base voltage of 7 V, providing ample margin for voltage transients. With a minimum DC current gain of 45, it provides sufficient gain for many switching and amplification applications.

Operating temperature range from -55°C to 150°C ensures functionality in demanding industrial and automotive environments. It also meets the automotive AEC-Q101 standard offering enhanced reliability for automotive electronic systems.

Its small physical dimensions (Length: 4.6 mm, Width: 1.6 mm, Height: 4.25 mm) allow efficient use of PCB real estate, making it suitable for compact devices and systems. This transistor offers a maximum power dissipation of 2 watts for efficient thermal management.

It supports a maximum collector-base voltage of 60 volts ensuring high voltage tolerance. Designed with a minimum current gain (hFE) of 45 for adequate amplification. The device operates reliably over a temperature range from -55°C up to 150°C.

The transistor polarity is NPN and it features a single transistor configuration for versatile use. Compact dimensions of 4.6 mm length, 1.6 mm width, and 4.25 mm height allow space-saving PCB design. Complies with the automotive standard AEC-Q101, ensuring robustness in automotive applications.

Ideal for use in power management, switching, and amplification stages in industrial, automotive, and electronic applications.

This transistor is a reliable choice for industrial, automotive, manufacturing, and consumer electronics applications where efficient power control and switching are required. Its compliance with automotive standards makes it suitable for vehicle onboard electronics and sensor systems.
