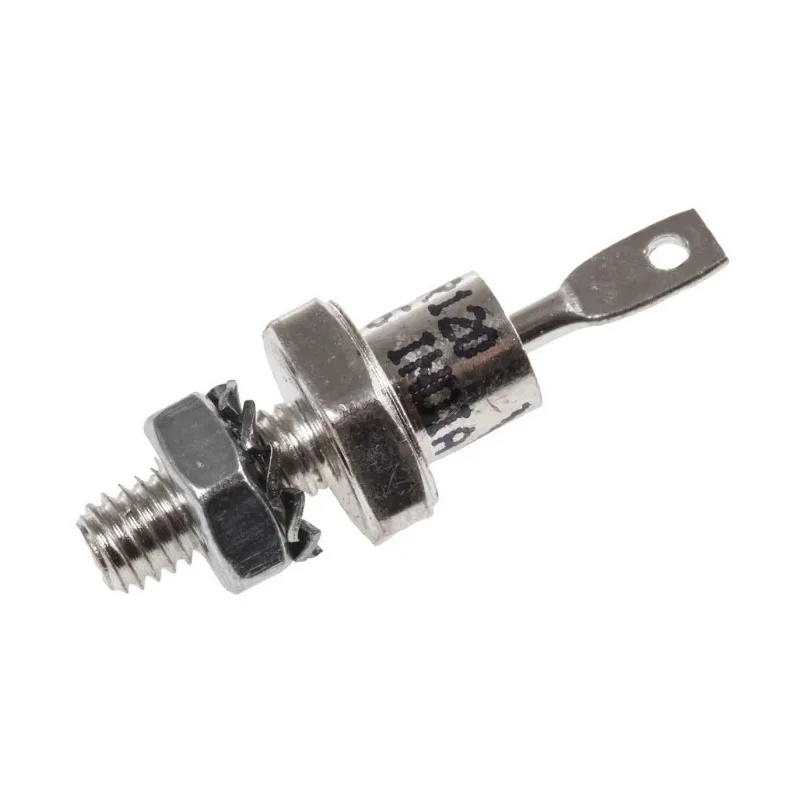

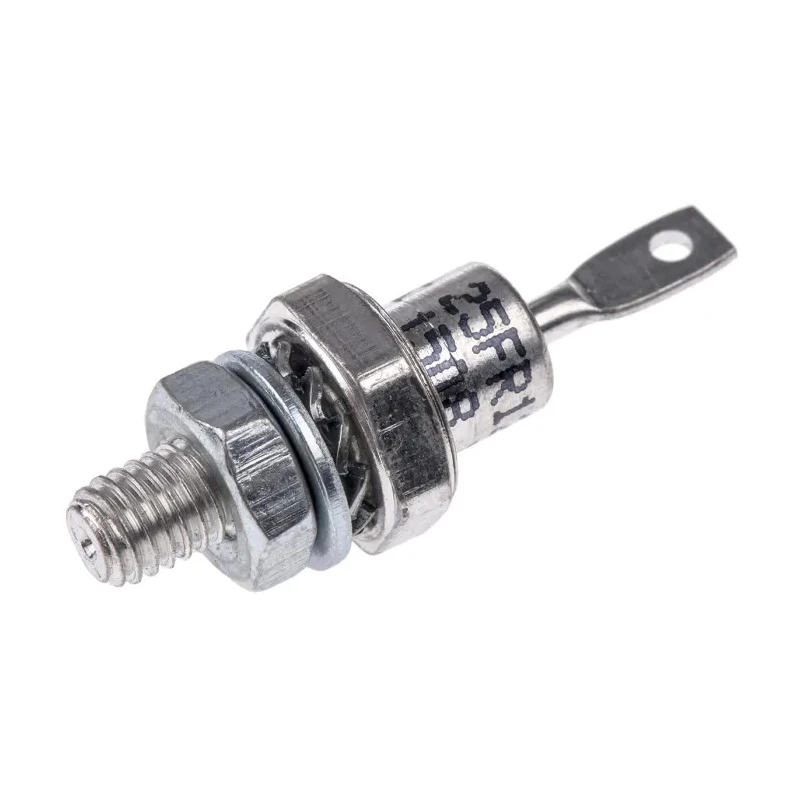

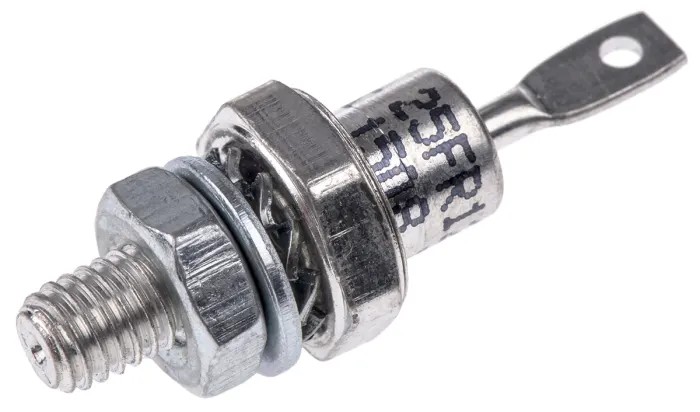

Vishay 1200 V 25 A Standard Recovery Switching Diode 2-Pin DO-203AA VS-25FR120
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-25FR120 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-25F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 25A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 373A |
| Maximum Forward Voltage Vf | 1.3V |
| Vishay 800 V 25 A Diode Switching 2-Pin DO-203AABrand | Vishay |
Key Features
- Supports maximum continuous forward current of 25 amperes for demanding applications.
- Capable of peak reverse repetitive voltage of 1200 volts ensuring high voltage tolerance.
- Standard recovery switching diode with a 2-pin DO-203AA package for easy mounting.
- High maximum operating temperature of 175°C allows operation in harsh environments.
- Low maximum forward voltage of 1.3 volts for efficient conduction.
- Robust stud anode diode configuration for reliable performance.
- Peak non-repetitive forward surge current rating of 373 amperes to withstand transient surges.
- Designed for mounting with screw terminals ensuring secure installation.
Product Description
Vishay VS-25FR120 is a high-performance standard recovery switching diode designed for industrial and electronic applications requiring robust and reliable rectification. It features a maximum continuous forward current of 25 A and a peak reverse repetitive voltage rating of 1200 V, making it suitable for high voltage circuits and power rectification tasks.
Encased in a DO-203AA 2-pin package, the diode supports easy screw mounting and is engineered with a stud anode configuration to optimize conductivity and mechanical stability. The device tolerates high operating temperatures up to 175°C, ensuring durability in demanding environments such as power supplies, industrial controls, and automotive electronics.
The diode’s low maximum forward voltage of 1.3 V contributes to higher efficiency and reduced power losses in switching applications. It also provides a peak non-repetitive forward surge current of 373 A, allowing it to handle transient voltage spikes and surges safely.
Compliant with RoHS environmental standards, the VS-25FR120 is a versatile component ideal for use in semiconductor discrete component assemblies within laboratory equipment, industrial manufacturing, HVAC controls, and energy management systems.
Supports maximum continuous forward current of 25 amperes for demanding applications. Capable of peak reverse repetitive voltage of 1200 volts ensuring high voltage tolerance. Standard Recovery Switching Diode with a 2-pin DO-203AA package for easy mounting.
High maximum operating temperature of 175°C allows operation in harsh environments. Low maximum forward voltage of 1.3 volts for efficient conduction. Robust stud anode diode configuration for reliable performance. Peak non-repetitive forward surge current rating of 373 amperes to withstand transient surges.
Designed for mounting with screw terminals ensuring secure installation. Complies with RoHS environmental standards. Explore a wide range of high-quality semiconductors including diodes and rectifiers at EnvMart for your electronic and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 25 amperes, making it suitable for demanding applications.
This model has a peak reverse repetitive voltage rating of 1200 volts, ensuring high voltage tolerance for various applications.
The maximum operating temperature for this diode is 175°C, allowing it to function in harsh environments.
It features a stud anode configuration, which enhances conductivity and mechanical stability.
The diode is encased in a DO-203AA 2-pin package, which supports easy mounting.
The maximum forward voltage of this diode is 1.3 volts, contributing to efficient conduction and reduced power losses.
This model has a peak non-repetitive forward surge current rating of 373 amperes, allowing it to handle transient voltage spikes safely.
The diode has a diameter of 11 mm, a height of 31.8 mm, and a length of 12.69 mm.
The minimum operating temperature is -65°C, enabling its use in a wide range of environmental conditions.
This diode is designed for screw mounting, ensuring a secure installation.
Yes, this diode complies with RoHS environmental standards.
The peak reverse current rating is 12 mA, indicating its performance under reverse bias conditions.
