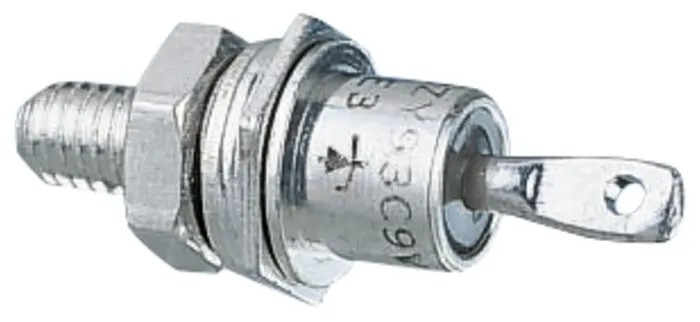

Vishay 600 V 12 A Standard Recovery Diode 2-Pin DO-203AA VS-12F60
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-12F60 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-12F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Standard Recovery Diode |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 1.26V |
| Vishay Switching Diode, Stud Cathode, 2-Pin DO-4 12F60Brand | Vishay |
| Vishay 1200 V 12 A Diode Standard Recovery Diode 2-Pin DO-203AABrand | Vishay |
Key Features
- The diode features screw mount type for secure installation.
- It provides high surge current capability, supporting 280 A peak non-repetitive forward surge current.
- Maximum forward voltage of 1.26 V ensures efficient conduction during operation.
- Operates reliably within a temperature range from -65°C to 175°C.
- Compact dimensions include length 12.69 mm, diameter 11 mm, and height 31.8 mm.
- Designed with a stud cathode configuration for standard recovery performance.
- Pin count consists of 2 pins, suitable for discrete semiconductor applications.
- Ideal for industrial, power electronics, and semiconductor circuit applications requiring reliable standard recovery diodes.
Product Description
Vishay VS-12F60 is a Standard Recovery Diode packaged in a 2-Pin DO-203AA form, delivering a maximum peak reverse repetitive voltage of 600 V and a continuous forward current of 12 A. It is mounted via screw type, making it suitable for industrial power electronics and discrete semiconductor applications.
This diode supports a high surge current of 280 A (peak non-repetitive forward surge current), ensuring durability under transient conditions. The forward voltage drop is 1.26 V maximum, promoting efficient conduction and reduced power loss during operation.
Designed for robust thermal performance, the device operates reliably between -65°C and 175°C, making it ideal for harsh and demanding environments.
Its stud cathode diode configuration and compact 2-pin design in the DO-203AA package measure 31.8 mm height, 12.69 mm length, and 11 mm diameter and width. These dimensions suit various discrete semiconductor circuits in industrial, automotive, HVAC, and power supply systems.
The diode features a screw mount type for easy and secure mechanical installation. High maximum continuous forward current of 12 A supports substantial load currents. Peak reverse current is minimal at 12 mA, assuring low leakage and high performance.
Standard recovery rectifier type offers balanced switching speed and low power dissipation. It complies with no special international standards or automotive standards, focusing on reliable industrial use. Non-repetitive surge current rating up to 280 A enables robust handling of transient loads.
Applications include power rectification, industrial electronics, power supplies, and other semiconductor-based equipment.
Choose Vishay standard recovery diodes for a rugged, efficient solution in discrete semiconductor and power electronic designs. Browse more Vishay semiconductor components and similar diodes on EnvMart.
Explore more products in our Standard Recovery Switching Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse repetitive voltage of the Vishay VS-12F60 diode is 600 V.
This model has a maximum continuous forward current rating of 12 A.
It supports a peak non-repetitive forward surge current of 280 A.
The diode has a length of 12.69 mm, a diameter of 11 mm, and a height of 31.8 mm.
The diode operates reliably within a temperature range from -65°C to 175°C.
The maximum forward voltage drop is 1.26 V.
It features a screw mount type for secure installation.
This diode has a pin count of 2, suitable for discrete semiconductor applications.
The peak reverse current is minimal at 12 mA, ensuring low leakage.
It is designed with a stud cathode configuration.
This diode is suitable for power rectification, industrial electronics, power supplies, and other semiconductor-based equipment.
The country of origin for this diode is India.
