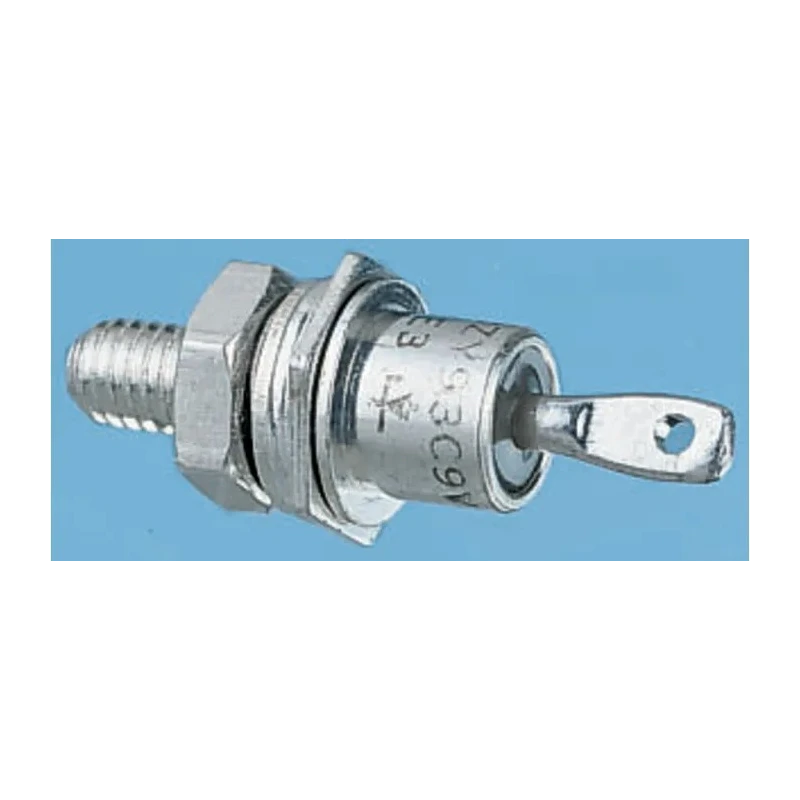

Vishay 1 kV 320 A Standard Recovery Switching Diode 2-Pin DO-205AB VS-240UR100D

Vishay VS-240UR100D is a high-performance standard recovery switching diode designed for Industrial and Power Electronics applications. With a maximum continuous forward current of 320 A and a peak reverse repetitive voltage of 1 kV, this diode supports high current load and voltage blocking capability necessary for demanding environments.

The device comes in a robust DO-205AB 2-pin package, providing secure mechanical mounting via screw mount type. It features a stud anode configuration and is specified for operation within a temperature range of -40°C to 180°C, ensuring durability under harsh conditions.

The diode's key electrical parameters include a low forward voltage drop of 1.33 V to optimize energy efficiency and a peak non-repetitive forward surge current rating of 4.7 kA that safeguards against transient surges. Its peak reverse current is limited to 15 mA, enhancing its switching integrity.

Typical applications include use in power conversion, rectification circuits, electrical power regulation, and other industrial semiconductor roles. Due to its standard recovery characteristics, it is suited for circuits requiring efficient switching with manageable recovery times.

Vishay's diode meets industrial-grade quality ensuring reliable performance in semiconductor systems used for power management and energy control. The package dimensions - length 36.93 mm, width 32 mm, height 74.3 mm - make it suitable for space-constrained configurations.

High continuous forward current rating of 320 A. Robust peak reverse repetitive voltage rating of 1 kV. Standard Recovery Switching Diode in industry-standard DO-205AB package. Wide operating temperature range from -40°C to 180°C.

Low forward voltage of 1.33 V for efficient performance. Suitable for industrial and power electronics applications. 2-pin stud anode mounting configuration. Peak surge current rating of 4.7 kA for transient protection. Reliable and durable diode construction by Vishay.

Compact and secure mechanical mounting with screw mount type.

This product is ideal for engineers and manufacturers specifying standard recovery diodes for power supply rectifiers, motor drives, inverter circuits, and other semiconductor switching applications. Explore more semiconductor and diode products in the Vishay range at EnvMart.
