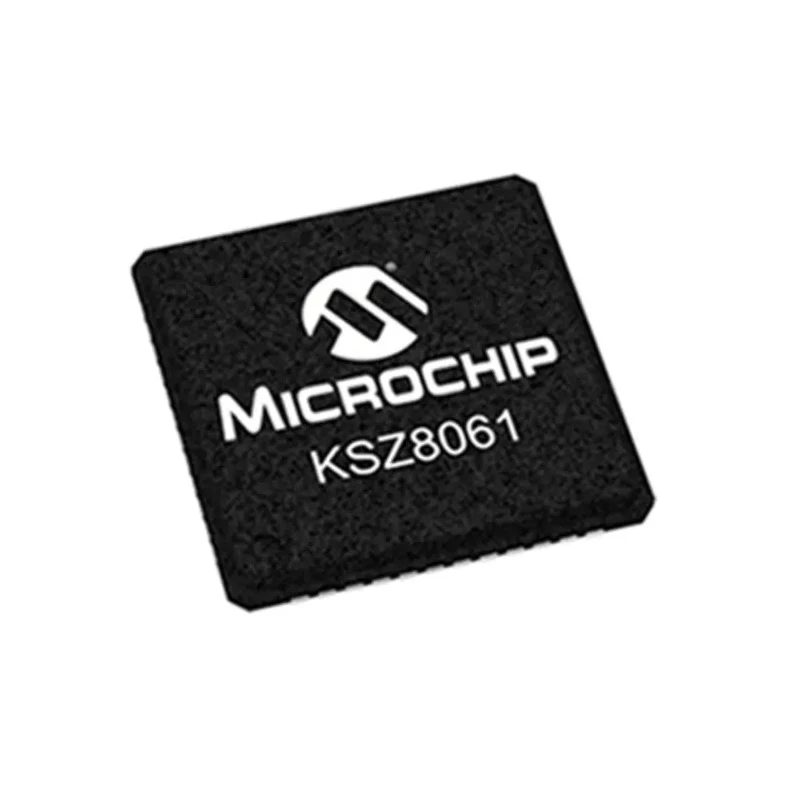

Microchip 48-Pin QFN Ethernet Transceiver 3.3 V to 5 V, 100 Mbps MII KSZ8061MNGW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 800μm |
| Length | 7mm |
| Model | KSZ8061MNGW |
| Mount Type | Surface |
| Maximum Operating Temperature | 105°C |
| Package Type | QFN |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet |
| Communication Mode | 100Base-TX, 10Base-T |
| Interface Type | MII |
| Standards/Approvals | AEC-Q100 |
| Pin Count | 48 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Supply Current | 59mA |
| Maximum Data Rate | 100Mbps |
| Loopback Mode | Local (Digital) Loopback, Remote (Analogue) Loopback |
| Standard Supported | IEEE 802.3az |
| Number of Transceivers | 1 |
Key Features
- Operates with a supply voltage range from 3.3 V to 5 V.
- Designed for automotive applications complying with AEC-Q100 standard.
- Features Quiet-WIRE® technology for programmable EMI noise filtering.
- Includes Media Independent Interface (MII) with MDC/MDIO management interface.
- Supports Local (Digital) and Remote (Analogue) loopback modes for diagnostics.
- Has on-chip termination resistors for differential pairs improving signal quality.
- Energy Efficient Ethernet compliant with IEEE 802.3az standard.
- Compact 48-pin QFN package with dimensions of 7 mm length and 800 μm height.
Product Description
The Microchip KSZ8061MNGW is a highly integrated 10Base-T/100Base-TX Ethernet transceiver in a 48-pin QFN package, designed to support automotive and industrial Ethernet applications. It operates with supply voltages from 3.3 V to 5 V, offering a maximum data transfer rate of 100 Mbps through a Media Independent Interface (MII).
This transceiver employs advanced Quiet-WIRE® technology, enabling programmable EMI noise filtering to comply with stringent EMC and emission standards, allowing its use in environments where shielded cables were previously required.
Compliant with the rigorous AEC-Q100 automotive standard, the KSZ8061MNGW supports both local digital and remote analogue loopback modes, enabling extensive diagnostic capabilities. It features on-chip termination resistors for improved signal integrity on differential pairs and provides a LinkMD®+ receive signal quality indicator to monitor connection quality.
The device supports IEEE 802.3az Energy Efficient Ethernet standard, facilitating ultra-deep sleep standby modes to minimize power consumption during periods of inactivity. It is surface mounted and packaged in a compact 7 mm by 7 mm QFN form factor with a height of 800 μm, suitable for space-constrained circuit board implementations.
This Ethernet transceiver is ideal for automotive networking, industrial control systems, and embedded Ethernet communication applications requiring reliable, high-performance physical layer connectivity.
Operates from 3.3 V to 5 V supply voltage supporting robust industrial and automotive power requirements. Advanced EMI filtering using Quiet-WIRE® technology for improved electromagnetic compatibility. Supports MII interface with MDC/MDIO for flexible configuration and management.
Diagnostic loopback modes enhance system testing and reliability verification. Energy Efficient Ethernet compliant with ultra-deep sleep standby capability. Compact 48-pin QFN package balances size and thermal performance.
Wide operating temperature range from -40°C to 105°C supports harsh environments. Low supply current of 59 mA reduces power consumption in embedded systems.
Choose the Microchip KSZ8061MNGW Ethernet Transceiver for dependable, low-noise, automotive and industrial network designs. Explore more semiconductor solutions at EnvMart’s Electronics & Electricals Semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data transfer rate of this Ethernet transceiver is 100 Mbps.
It operates with a supply voltage range from 3.3 V to 5 V.
The QFN package has dimensions of 7 mm in length and a height of 800 μm.
It complies with the AEC-Q100 automotive standard.
It supports both local (digital) and remote (analogue) loopback modes for diagnostics.
This model uses a Media Independent Interface (MII) with MDC/MDIO management interface.
The operating temperature range is from -40°C to 105°C.
The supply current is 59 mA.
It employs Quiet-WIRE® technology for programmable EMI noise filtering.
It is compliant with the IEEE 802.3az Energy Efficient Ethernet standard.
The transceiver has a pin count of 48.
It supports surface mounting.
