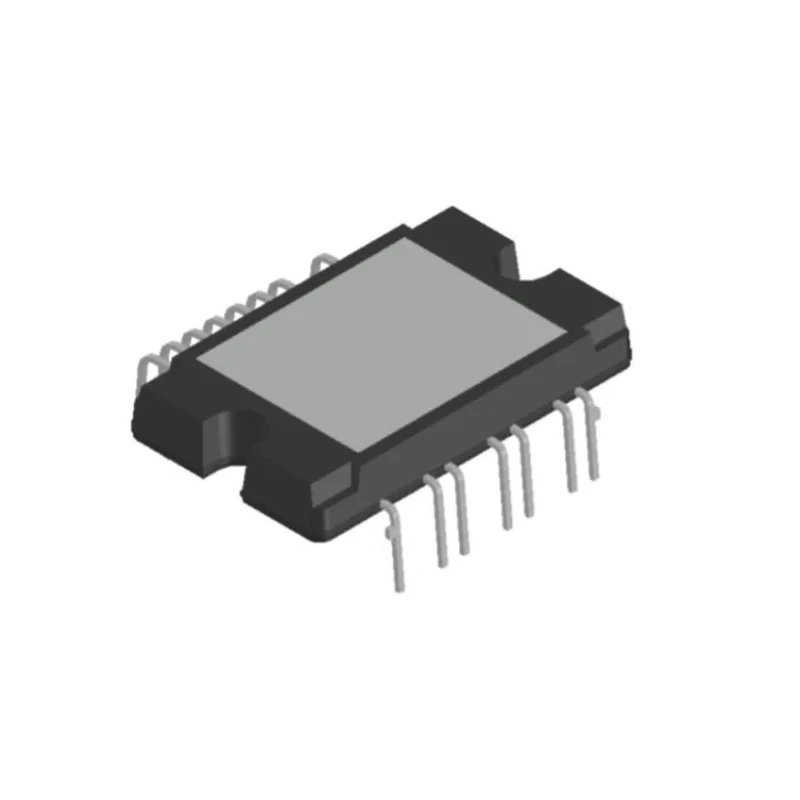

onsemi N-Channel Smart Power Module 30 A 600 V 38-Pin DIP Surface Mount IPM Series NFAQ1560R43TL
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | NFAQ1560R43TL |
| Mount Type | Surface |
| Series | IPM |
| Maximum Operating Temperature | 150°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 38 |
| Maximum Continuous Collector Current Ic | 30A |
| Maximum Collector Emitter Voltage Vceo | 600V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.5V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 50W |
Key Features
- Integrated inverter power stage with six IGBTs and thermistor for precise motor control.
- Configured as 3-phase bridge with separate emitter connections for flexibility in control algorithms.
- Good heat dissipation enabled by Direct Bonded Copper technology.
- Compact design with multifunction integration including embedded NTC for accurate temperature measurement.
- Includes bootstrap diodes and resistors for optimized loss and reduced EMI.
- Suitable for permanent magnet synchronous motors, brushless DC, and AC asynchronous motors.
- Operates reliably from -40°C to 150°C ensuring robust performance.
Product Description
onsemi NFAQ1560R43TL is a new N-Channel Smart Power Module designed as a fully-integrated inverter power stage incorporating a high-voltage driver, six IGBTs, and a thermistor within a 38-pin DIP surface mount package. Rated for a maximum continuous collector current of 30 A and a collector emitter voltage of 600 V, this module is optimized for driving various types of motors including permanent magnet synchronous motors, brushless DC motors, and AC asynchronous motors.
The module's six IGBTs are arranged in a 3-phase bridge layout with separate emitter connections for the lower legs, providing maximum flexibility for the implementation of advanced control algorithms. Direct Bonded Copper (DBC) technology enhances heat dissipation, ensuring reliable thermal performance under high power operation. The compact, multifunction integrated design includes embedded NTC thermistor sensors for precise temperature monitoring.
Additional features include integrated bootstrap diodes and resistors that contribute to reduced electromagnetic interference and optimized power loss. This makes the NFAQ1560R43TL ideal for industrial, automation, HVAC, and motor control applications requiring efficient power modulation and compact footprint.
Integrated inverter stage with six IGBTs and thermistor for smart motor control. 3-phase bridge configuration with separate emitter connections for control flexibility. Direct Bonded Copper substrate enables superior heat dissipation.
Embedded NTC thermistor ensures accurate module temperature measurements. Includes integral bootstrap diodes and resistors to optimize loss and EMI. Wide operating temperature range from -40°C to 150°C ensures durability.
Applications include industrial motor drives, HVAC systems, and brushless DC motor controls.
This smart power module supports efficient energy management in demanding environments and is a reliable choice for industrial and commercial electronic devices. Explore more Power Modules and semiconductor solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 30 A.
The maximum collector emitter voltage is rated at 600 V.
It operates reliably within a temperature range of -40°C to 150°C.
This model is packaged in a 38-pin DIP (Dual In-line Package).
The module utilizes Direct Bonded Copper (DBC) technology for enhanced heat dissipation.
It is suitable for driving permanent magnet synchronous motors, brushless DC motors, and AC asynchronous motors.
Yes, it includes integrated bootstrap diodes and resistors for optimized loss and reduced electromagnetic interference (EMI).
The maximum power dissipation is rated at 50 W.
The embedded NTC thermistor ensures accurate temperature measurements for the module.
This model features a pin count of 38.
It belongs to the IPM (Intelligent Power Module) series.
The country of origin for this model is India.
